TIMING

CARBURETOR FOR SUZUKI DR-Z 400 2004

AIR FILTER COLOR : 3AE=30H(WHITE),25Y(YELLOW)

Item numbers

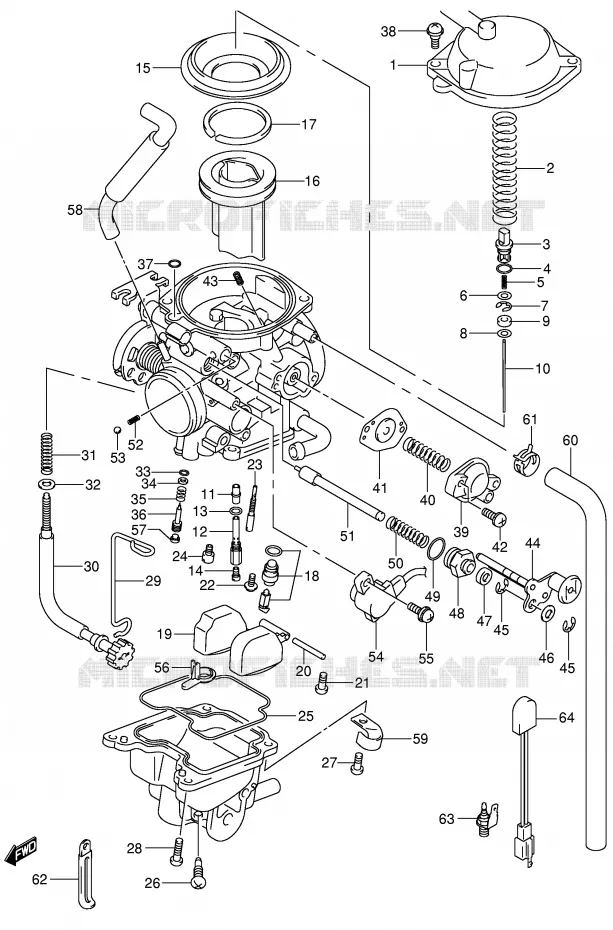

CARBURETOR Suzuki MOTO 400 DR-Z 2004 DR-Z400SK4(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
62
63
64
1
COVER ASSY, DIAPHRAGM

13502-29FA0-000   1350229FA0000

1350229FA0000

Unit Price

2
SPRING

13573-07F00-000   1357307F00000

1357307F00000

Unit Price

3
HOLDER
HOLDER

13418-33E00-000   1341833E00000

1341833E00000

Unit Price

4
O-RING<br />O RING (D:1.9,ID:4.8)
O-RING
O RING (D:1.9, ID:4.8)

09280-05004-000   0928005004000

0928005004000

Unit Price

5
SPRING

13481-04F00-000   1348104F00000

1348104F00000

Unit Price

6
WASHER

13382-19E00-000   1338219E00000

1338219E00000

Unit Price

7
E RING,MULTIPLE JET NOZZLE<br />E RING
E RING, MULTIPLE JET NOZZLE
E RING

13394-17E60-000   1339417E60000

1339417E60000

Unit Price

8
RING

13387-13F00-000   1338713F00000

1338713F00000

Unit Price

9
WASHER

13291-29FA0-000   1329129FA0000

1329129FA0000

Unit Price

10
NEEDLE, JET
NEEDLE, JET (5DH37-1)

13383-29FB0-000   1338329FB0000

1338329FB0000

Unit Price

11
JET
JET, NEEDLE (P-0M)

09494-00939-000   0949400939000

0949400939000

Unit Price

12
HOLDER, JET

13385-29FA0-000   1338529FA0000

1338529FA0000

Unit Price

13
O RING
O RING

13246-43010-000  

13246-43011-000
 1324643010000

Unit Price

14
JET, MAIN (142.5)

09491-28012-000   0949128012000

0949128012000

Unit Price

15
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

16
VALVE, PISTON

13501-29FA0-000   1350129FA0000

1350129FA0000

Unit Price

17
RING

13504-14E00-000   1350414E00000

1350414E00000

Unit Price

18
VALVE ASSY, NEEDLE

13370-29FA0-000  

13370-29FA1-000
 1337029FA0000

Unit Price

19
FLOAT ASSY

13250-04F00-000   1325004F00000

1325004F00000

Unit Price

20
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-01010-000   1325401010000

1325401010000

Unit Price

21
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

22
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

23
JET, PILOT (22.5)

09492-22014-000   0949222014000

0949222014000

Unit Price

24
JET, MAIN(62.5)
JET, MAIN AIR (62.5)

09491-62006-000   0949162006000

0949162006000

Unit Price

25
GASKET
O RING

13258-04F00-000   1325804F00000

1325804F00000

Unit Price

26
PLUG,DRAIN<br />SCREW, DRAIN
PLUG, DRAIN
SCREW, DRAIN

13247-02340-000   1324702340000

1324702340000

Unit Price

27
SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

28
SCREW

02112-04123-000  

02112-0412A-000
 0211204123000

Unit Price

29
CLIP

13671-29FA0-000   1367129FA0000

1367129FA0000
Not available
30
SCREW, ADJUST
ADJUST SCREW ASSY

13267-29FA0-000   1326729FA0000

1326729FA0000

Unit Price

31
SPRING, THROTTLE SCREW
SPRING

13268-37420-000   1326837420000

1326837420000

Unit Price

32
WASHER, STARTER SHAFT
WASHER

13615-43010-000   1361543010000

1361543010000

Unit Price

33
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

34
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

35
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-48700-000   1326848700000

1326848700000

Unit Price

36
ADJUSTER<br />ADJUSTER (3,1/2)
ADJUSTER
ADJUSTER (3, 1/2)

13279-33E00-000   1327933E00000

1327933E00000

Unit Price

37
O RING
O RING

13295-33010-000   1329533010000

1329533010000

Unit Price

38
SCREW
SCREW

13247-33E00-000   1324733E00000

1324733E00000

Unit Price

39
COVER ASSY

13502-10F00-000   1350210F00000

1350210F00000

Unit Price

40
SPRING

13271-10F00-000   1327110F00000

1327110F00000

Unit Price

41
DIAPHRAGM ASSY
DIAPHRAGM ASSY

13480-10F00-000  

13480-10F01-000
 1348010F00000

Unit Price

42
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

43
JET, PILOT AIR (135)

09492-27010-000   0949227010000

0949227010000
Not available
44
PLATE ASSY

13420-29FA0-000   1342029FA0000

1342029FA0000

Unit Price

45
E RING
E RING

13415-38300-000   1341538300000

1341538300000

Unit Price

46
WASHER
WASHER

13427-38300-000   1342738300000

1342738300000

Unit Price

47
CAP,STARTER VALVE<br />CAP
CAP, STARTER VALVE
CAP

13682-31210-000   1368231210000

1368231210000

Unit Price

48
GUIDE SCREW,PLUNGER<br />HOLDER, GUIDE
GUIDE SCREW, PLUNGER
HOLDER, GUIDE

13418-44080-000   1341844080000

1341844080000

Unit Price

49
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

50
SPRING
SPRING

13417-43010-000   1341743010000

1341743010000

Unit Price

51
PLUNGER ASSY

13411-29FA0-000   1341129FA0000

1341129FA0000

Unit Price

52
SPRING
SPRING

13434-43010-000   1343443010000

1343443010000

Unit Price

53
BALL,CARBURETOR<br />BALL
BALL, CARBURETOR
BALL

13596-93010-000   1359693010000

1359693010000

Unit Price

54
SENSOR ASSY

13580-21F00-000  

13580-21F01-000
 1358021F00000

Unit Price

55
SCREW
SCREW

13602-19B50-000   1360219B50000

1360219B50000

Unit Price

56
RING

13387-29FA0-000  

13387-29FA1-000
 1338729FA0000

Unit Price

57
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

58
HOSE
HOSE ASSY, BOOST (4X8)

13683-29FB0-000   1368329FB0000

1368329FB0000

Unit Price

59
PLATE

13671-14D00-000  

13671-14D01-000
 1367114D00000

Unit Price

60
HOSE, AIR VENT(6.5X10.5)

13684-29FB0-000  

13684-29FB1-000
 1368429FB0000

Unit Price

61
CLIP
CLIP

13671-19F00-000   1367119F00000

1367119F00000

Unit Price

62
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

62
CLAMP,L:120 T:1.0<br />CLAMP, OVERFLOW HOSE LOW
CLAMP, L:120 T:1.0
CLAMP, OVERFLOW HOSE LOW

09404-08420-000   0940408420000

0940408420000

Unit Price

63
HEATER ASSY,CARBURETOR(15W)<br />HEATER ASSY, CARBURETOR
HEATER ASSY, CARBURETOR(15W)
HEATER ASSY, CARBURETOR

13650-25E01-000   1365025E01000

1365025E01000

Unit Price

64
THERMO SWITCH, CARB HEATER
SWITCH, CARB HEATER THERMO

13655-16F00-000   1365516F00000

1365516F00000

Unit Price

99x
13200-29FB4
CARBURETOR ASSY

13200-29FB0-000   1320029FB0000

1320029FB0000
Not available
99x
CARBURETOR ASSY

13200-29FC0-000   1320029FC0000

1320029FC0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
