Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WATER PUMP

RADIATOR (MODEL Y / K1) FOR SUZUKI DR-Z 400 2004

RADIATOR (MODEL K2 / K3 / K4)

Item numbers

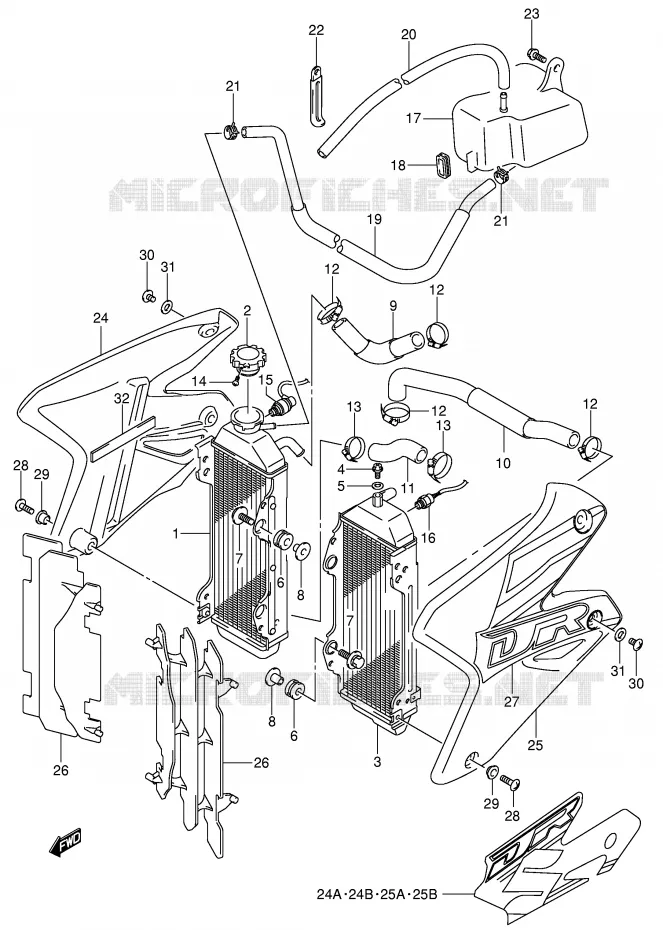

RADIATOR (MODEL Y/K1) Suzuki MOTO 400 DR-Z 2004 DR-Z400SK4(E3/E28)
1
2
3
4
5
6
6
7
7
8
8
9
10
11
12
12
12
12
13
13
14
15
16
17
18
19
20
21
21
22
22
23
24
24
24
24
24B
24A
25
25
25
25
25B
25A
26
26
27
27
27
27
27
27
28
28
29
29
30
30
31
31
32
1
RADIATOR, WATER, R

17710-29F10-000  

17710-29F40-000
 1771029F10000

Unit Price

2
CAP, RADIATOR (1.1)
CAP, RADIATOR (1.1)

17730-19D11-000   1773019D11000

1773019D11000

Unit Price

3
RADIATOR, WATER, L

17720-29F10-000  

17720-29F11-000
 1772029F10000

Unit Price

4
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

5
GASKET(6.4X11.5X0.84)<br />GASKET, AIR RELEASE
GASKET(6.4X11.5X0.84)
GASKET, AIR RELEASE

09168-06026-000   0916806026000

0916806026000

Unit Price

6
CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

7
BOLT (6X25)
BOLT (6X25)

09116-06147-000   0911606147000

0911606147000

Unit Price

8
SPACER

09180-06243-000   0918006243000

0918006243000

Unit Price

9
HOSE, RADIATOR INLET
HOSE, INLET

17851-29F10-000   1785129F10000

1785129F10000

Unit Price

10
DISCONTINUE
HOSE, OUTLET

17852-29F10-000   1785229F10000

1785229F10000
Not available
11
HOSE, RADIATOR JOINT
HOSE, JOINT

17853-29F10-000   1785329F10000

1785329F10000

Unit Price

12
CLAMP
CLAMP

09402-28511-000   0940228511000

0940228511000

Unit Price

13
CLAMP
CLAMP

09402-32511-000   0940232511000

0940232511000

Unit Price

14
SCREW, RADIATOR CAP
SCREW, RADIATOR CAP

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

15
SWITCH ASSY, WATER TEMP

34850-03D00-000   3485003D00000

3485003D00000

Unit Price

16
SWITCH, FAN

17680-24A30-000   1768024A30000

1768024A30000

Unit Price

17
TANK, RESERVOIR

17911-29F11-000   1791129F11000

1791129F11000

Unit Price

18
CUSHION, RESERVOIR TANK

17913-29F00-000   1791329F00000

1791329F00000

Unit Price

19
HOSE, RESERVOIR TANK INLET
HOSE, INLET

17981-29F01-000   1798129F01000

1798129F01000

Unit Price

20
HOSE, 5 X 9 X 2000<br />HOSE, OVERFLOW
HOSE, 5 X 9 X 2000
HOSE, OVERFLOW

09352-50901-00B   093525090100B

093525090100B

Unit Price

21
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
22
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

22
CLAMP(L:45 T:0.6)
CLAMP(L:45 T:0.6)

09404-08205-000  

09404-08211-000
 0940408205000

Unit Price

23
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

24
DISCONTINUE
COVER, RADIATOR RH (BLUE)

17760-29F10-YJ4   1776029F10YJ4

1776029F10YJ4
Not available
24
DISCONTINUE

17760-29F10-YR1  

1776029F10YR1
Not available
24
DISCONTINUE
COVER, RADIATOR RH (BLACK)

17761-29F00-019   1776129F00019

1776129F00019
Not available
24
DISCONTINUE
COVER, RADIATOR RH (WHITE)

17761-29F00-30H   1776129F0030H

1776129F0030H
Not available
24A
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F10-FR2   6866529F10FR2

6866529F10FR2
Not available
24B
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F10-DY9   6866529F10DY9

6866529F10DY9
Not available
25
DISCONTINUE
COVER, RADIATOR LH (BLACK)

17762-29F00-019   1776229F00019

1776229F00019
Not available
25
DISCONTINUE
COVER, RADIATOR LH (WHITE)

17762-29F00-30H   1776229F0030H

1776229F0030H
Not available
25
DISCONTINUE
COVER, RADIATOR LH (BLUE)

17770-29F10-YJ4   1777029F10YJ4

1777029F10YJ4
Not available
25
17770-29F40-YU1

17770-29F10-YR1  

1777029F10YR1
Not available
25A
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29F10-FR2   6867529F10FR2

6867529F10FR2
Not available
25B
DISCONTINUE
TAPE, RADIATOR COVER LH

68665-29F10-DY9   6866529F10DY9

6866529F10DY9
Not available
26
LOUVER, RADIATOR

17831-37E11-000   1783137E11000

1783137E11000

Unit Price

27
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F01-YK3   6866529F01YK3

6866529F01YK3
Not available
27
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F01-YK4   6866529F01YK4

6866529F01YK4
Not available
27
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F01-YK5   6866529F01YK5

6866529F01YK5
Not available
27
TAPE, RADIATOR COVER LH

68675-29F01-YK3   6867529F01YK3

6867529F01YK3
Not available
27
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29F01-YK4   6867529F01YK4

6867529F01YK4
Not available
27
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29F01-YK5   6867529F01YK5

6867529F01YK5
Not available
28
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

29
WASHER
WASHER

09169-06060-000   0916906060000

0916906060000

Unit Price

30
SCREW

02142-06083-000  

02142-0608A-000
 0214206083000

Unit Price

31
WASHER, 6.5X14X2.0

09160-06124-000  

09160-06126-000
 0916006124000

Unit Price

32
CUSHION, TOOL HOLDER

17798-29E40-000  

47451-38A01-000
 1779829E40000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2004

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 DR-Z 2004

Choose your Suzuki 400 2004 DR-Z model

400 DR-Z 2004 DR-Z400SK4(E3/E28)

Suzuki DR-Z

Displacement: 400 cc
Year: 2004
Model code DR-Z400SK4(E3 / E28)
