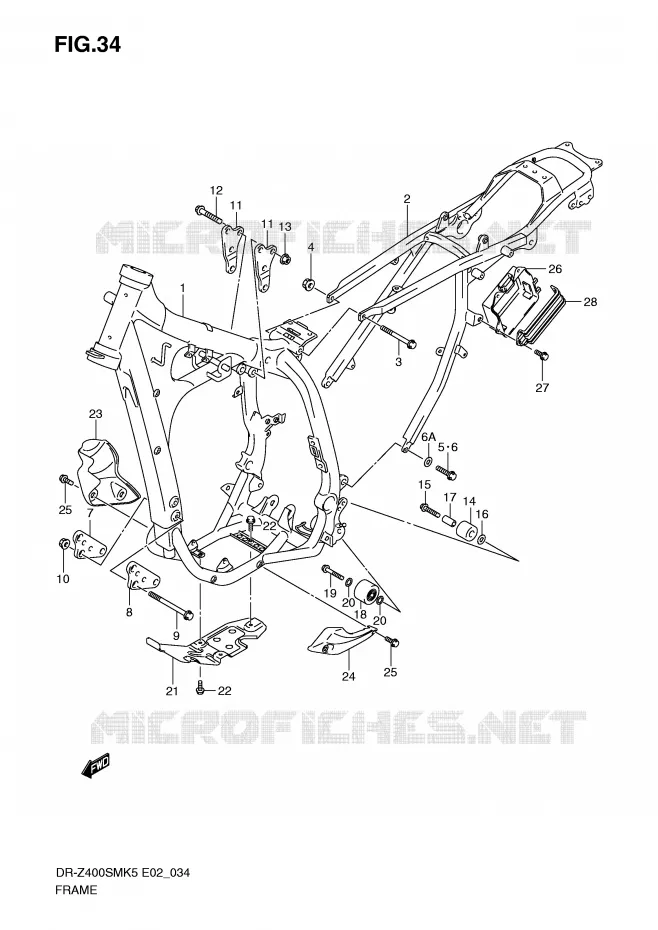

FRAME FOR SUZUKI DR-Z 400 2005

FUEL TANK (MODEL K5 / K6) REFER TO FIG.37A(H- 6) FOR MODEL K7/K8

Item numbers

PLATE, ENG MTG FRONT, L

41100-29F30-YU8

41100-29F31-YU8

$27,97

Unit Price

DISCONTINUE
FRAME (BLACK)

41100-29F32-019 4110029F32019

Not available

RAIL, SEAT

41200-29F60-000

41200-29F70-000

$1 071,97

Unit Price

BOLT
BOLT, UPPER

09103-08098-000 0910308098000

$5,97

Unit Price

NUT

08319-3108A-000 083193108A000

$3,97

Unit Price

BOLT
BOLT, LH (8X16)

09104-08035-000 0910408035000

$3,97

Unit Price

DISCONTINUE
BOLT, LH (8X16)

09104-08040-000 0910408040000

Not available

BOLT(8X20)
BOLT, RH

09103-08431-000 0910308431000

$6,97

Unit Price

WASHER, 8.5X18X2.0
WASHER

09160-08120-000 0916008120000

$3,97

Unit Price

DISCONTINUE
BOLT, RH

09104-08039-000 0910408039000

Not available

PLATE, ENG MTG FR
PLATE, ENGINE MOUNT FRONT RH

41911-29F00-000 4191129F00000

$47,97

Unit Price

PLATE, ENGINE MOUNT FRONT LH

41911-29F10-000 4191129F10000

Not available

BOLT(8X90)
BOLT

09103-08363-000 0910308363000

$13,97

Unit Price

NUT

08319-3108A-000 083193108A000

$3,97

Unit Price

PLATE, HEAD MTG RR
PLATE, ENGINE MOUNT REAR

41993-29F10-000 4199329F10000

$29,97

Unit Price

BOLT

09103-08081-000

01550-08507-000

$6,97

Unit Price

NUT

08319-3108A-000 083193108A000

$3,97

Unit Price

ROLLER, CHAIN CONTROL UPR
ROLLER, CHAIN UPPER

43911-13E00-000 4391113E00000

$24,97

Unit Price

BOLT, CHAIN ROLL *S1
BOLT, UPPER

09103-08083-000 0910308083000

$6,97

Unit Price

WASHER THRUST
WASHER

08211-08201-000 0821108201000

$3,97

Unit Price

SPACER

09180-08215-000 0918008215000

$6,97

Unit Price

ROLLER, CHAIN
ROLLER, CHAIN LOWER

43910-27C11-000 4391027C11000

$73,97

Unit Price

BOLT, CHAIN ROLL *S1
BOLT (8X41)

09103-08083-000 0910308083000

$6,97

Unit Price

WASHER

09181-08111-000 0918108111000

$3,97

Unit Price

PROTECTOR, ENGINE

42510-29F00-000 4251029F00000

$103,97

Unit Price

BOLT
BOLT, CENTER

01550-0612B-000 015500612B000

$3,97

Unit Price

DISCONTINUE

42521-29F00-000

Not available

DISCONTINUE

42531-29F00-000

Not available

BOLT

09111-08087-000 0911108087000

$4,97

Unit Price

BOLT(8X16.5)
BOLT

09111-08096-000 0911108096000

$6,97

Unit Price

HOLDER, BATTERY

41541-29F00-000 4154129F00000

$68,97

Unit Price

BOLT

09111-06072-000 0911106072000

$3,97

Unit Price

BAND, BATTERY HOLDER
BAND

41561-29F00-000 4156129F00000

$23,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
