REAR FENDER (MODEL K5 / K6) REFER TO FIG.44A(I-11) FOR MODEL K7/K8/K9

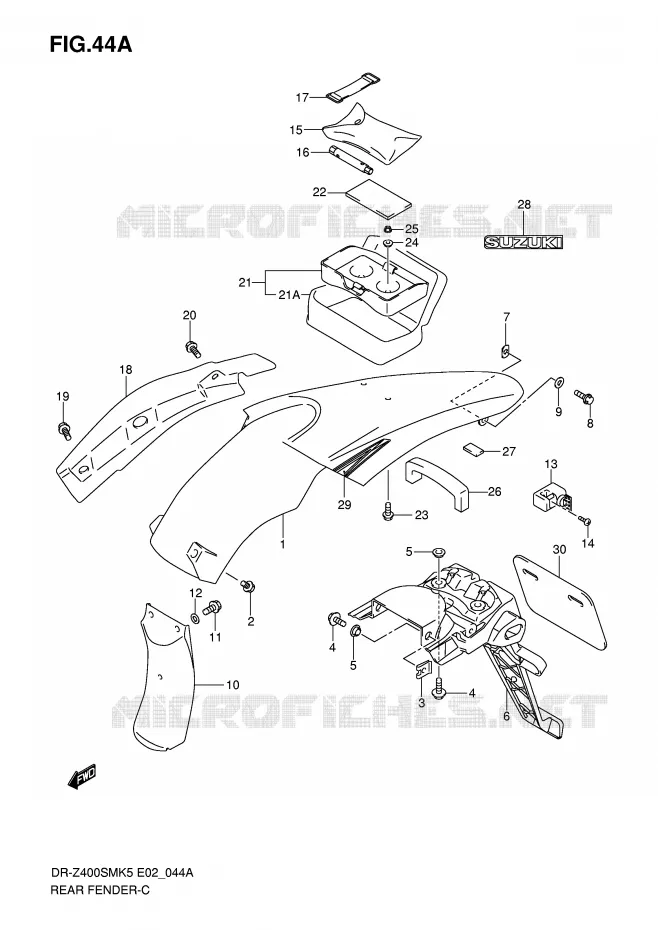

REAR FENDER (MODEL K7 / K8 / K9) FOR SUZUKI DR-Z 400 2005

LABEL

Item numbers

FENDER, RR
FENDER, REAR (BLACK)

63113-29FA0-019 6311329FA0019

$90,97

Unit Price

FENDER, RR
FENDER, REAR (WHITE)

63113-29FA0-30H 6311329FA030H

$90,97

Unit Price

FENDER, RR
FENDER, REAR (YELLOW)

63113-29FA0-YU1 6311329FA0YU1

$237,97

Unit Price

BOLT, 6X16
BOLT, FRONT

09113-06001-000 0911306001000

$4,97

Unit Price

PLATE, RR FENDER
PLATE, REAR FENDER

63312-13E01-000 6331213E01000

$11,97

Unit Price

BOLT, 6X20, W/PL WASHE
BOLT

09116-06115-000 0911606115000

$2,97

Unit Price

WASHER

09169-06073-000 0916906073000

$5,97

Unit Price

EXTENSION, RR FENDER
EXTENSION, REAR FENDER

63311-29FA1-000 6331129FA1000

$86,97

Unit Price

NUT, COWL
NUT, FITTING

94484-24F00-000 9448424F00000

$6,97

Unit Price

BOLT

01550-0512B-000 015500512B000

$3,97

Unit Price

WASHER

09169-05024-000 0916905024000

$3,97

Unit Price

MUDGUARD, RR FENDER FR
MUDGUARD, FRONT

63411-29F00-000 6341129F00000

$23,97

Unit Price

BOLT

01547-0616B-000 015470616B000

$4,97

Unit Price

WASHER

09169-06045-000 0916906045000

$2,97

Unit Price

LOCK SET, HELMET

95700-41821-000 9570041821000

$159,97

Unit Price

LOCK SET, HELMET

95700-44810-000 9570044810000

Not available

SCREW

09139-06089-000 0913906089000

$4,97

Unit Price

TOOL ASSY

09800-21042-000

09800-21092-000

$85,97

Unit Price

SPANNER, BOX 8X10

09816-00186-000 0981600186000

$22,97

Unit Price

BAND
BAND, TOOL

09462-00008-000

Not available

MUDGUARD, REAR FENDER RH

63114-29F10-000 6311429F10000

Not available

BOLT
BOLT, LOWER

09111-06081-000 0911106081000

$7,97

Unit Price

BOLT, 6X12

63161-43E00-000

09111-06107-000

$3,97

Unit Price

BAG ASSY, SEAT TAIL
BAG, SEAT TAIL

94900-29FB1-000 9490029FB1000

$198,97

Unit Price

21A

BAG COMP, SEAT TAIL
BAG

94910-29FB0-000 9491029FB0000

$124,97

Unit Price

CUSHION, REAR BAG
CUSHION

94915-44E00-000 9491544E00000

$16,97

Unit Price

BOLT

01550-0620B-000 015500620B000

$4,97

Unit Price

WASHER

09169-06063-000 0916906063000

$5,97

Unit Price

NUT, ROOF RAIL
NUT

09159-06078-000 0915906078000

$4,97

Unit Price

SEALER, SIDE COVER L
CUSHION, FRONT

47161-29B00-000 4716129B00000

$9,97

Unit Price

PROTECTOR(170X95X3.0)
CUSHION, REAR

33651-37000-000 3365137000000

$6,97

Unit Price

EMBLEM, 'SUZUKI'

68721-13A00-8YM

68721-13A01-8YM

$15,97

Unit Price

EMBLEM, 'SUZUKI'

68721-13A00-GY8

68721-13A01-GY8

$15,97

Unit Price

68721-13A01-CT5
EMBLEM, REAR

68721-13A00-CT5 6872113A00CT5

Not available

DISCONTINUE
EMBLEM, REAR

68721-13A00-FH7

Not available

DISCONTINUE
TAPE SET

68170-29F00-DWA 6817029F00DWA

Not available

DISCONTINUE
TAPE SET

68170-29F00-DWB 6817029F00DWB

Not available

HOLDER, REAR LICENSE PLATE

63461-29FA0-000 6346129FA0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
