WATER PUMP

RADIATOR FOR SUZUKI DR-Z 400 2007

CLUTCH

Item numbers

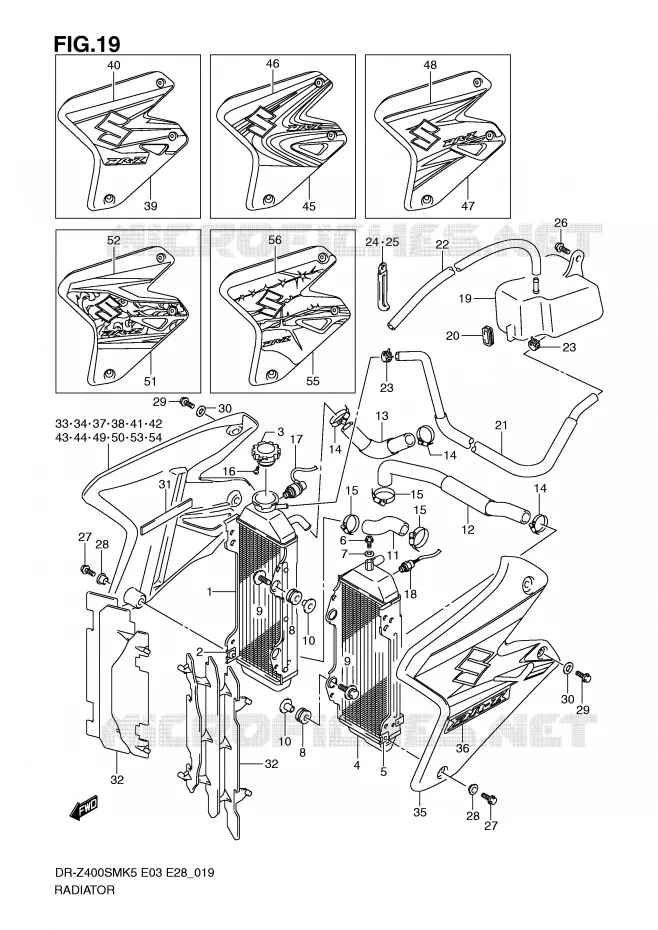

RADIATOR Suzuki MOTO 400 DR-Z 2007 DR-Z400SMK7(E3/E28)
1
1
2
3
4
4
5
6
7
8
8
9
9
10
10
11
12
13
14
14
14
15
15
15
16
17
17
18
19
20
21
22
23
23
24
25
26
27
27
28
28
29
29
30
30
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
44
45
45
46
46
47
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
1
RADIATOR, WATER, R

17710-29F11-000  

17710-29F40-000
 1771029F11000

Unit Price

2
NUT
NUT

09148-06015-000   0914806015000

0914806015000

Unit Price

3
CAP, RADIATOR (1.1)
CAP, RADIATOR (1.1)

17730-19D11-000   1773019D11000

1773019D11000

Unit Price

4
RADIATOR, WATER, L

17720-29F12-000  

17720-29F40-000
 1772029F12000

Unit Price

5
NUT
NUT

09148-06015-000   0914806015000

0914806015000

Unit Price

6
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

7
GASKET(6.4X11.5X0.84)<br />GASKET, AIR RELEASE
GASKET(6.4X11.5X0.84)
GASKET, AIR RELEASE

09168-06026-000   0916806026000

0916806026000

Unit Price

8
CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

9
BOLT (6X25)
BOLT (6X25)

09116-06147-000   0911606147000

0911606147000

Unit Price

10
SPACER

09180-06243-000   0918006243000

0918006243000

Unit Price

11
HOSE, RADIATOR INLET
HOSE, INLET

17851-29F10-000   1785129F10000

1785129F10000

Unit Price

12
HOSE, RADIATOR OUTLET
HOSE, OUTLET

17852-29F30-000   1785229F30000

1785229F30000

Unit Price

13
HOSE, RADIATOR JOINT
HOSE, JOINT

17853-29F10-000   1785329F10000

1785329F10000

Unit Price

14
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

15
CLAMP

09402-32512-000   0940232512000

0940232512000

Unit Price

16
SCREW, RADIATOR CAP
SCREW, RADIATOR CAP

17733-03D10-000   1773303D10000

1773303D10000

Unit Price

17
SWITCH ASSY, WATER TEMP

34850-03D00-000   3485003D00000

3485003D00000

Unit Price

17
SWITCH ASSY, WATER TEMP

34850-29F00-000   3485029F00000

3485029F00000

Unit Price

18
SWITCH, FAN

17680-24A30-000   1768024A30000

1768024A30000

Unit Price

19
TANK, RESERVOIR

17911-29F11-000   1791129F11000

1791129F11000

Unit Price

20
CUSHION, RESERVOIR TANK

17913-29F00-000   1791329F00000

1791329F00000

Unit Price

21
HOSE, RESERVOIR TANK INLET
HOSE, INLET

17981-29F01-000   1798129F01000

1798129F01000

Unit Price

22
HOSE, 5 X 9 X 2000<br />HOSE, OVERFLOW
HOSE, 5 X 9 X 2000
HOSE, OVERFLOW

09352-50901-00B   093525090100B

093525090100B

Unit Price

23
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
24
CLAMP(L:45 T:0.6)
CLAMP(L:45 T:0.6)

09404-08205-000  

09404-08211-000
 0940408205000

Unit Price

25
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

26
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

27
SCREW, 6X16
SCREW, RADIATOR SIDE

09103-06274-000   0910306274000

0910306274000

Unit Price

28
WASHER

09169-06053-000   0916906053000

0916906053000

Unit Price

29
SCREW, 6X8
SCREW, TANK SIDE

09103-06275-000   0910306275000

0910306275000

Unit Price

30
WASHER (6.5X14X1.6)
WASHER (6.5X14X1.6)

09160-06125-000   0916006125000

0916006125000

Unit Price

31
CUSHION,TOOL HOLDER<br />CUSHION, RADIATOR COVER
CUSHION, TOOL HOLDER
CUSHION, RADIATOR COVER

47451-38A01-000   4745138A01000

4745138A01000

Unit Price

32
LOUVER, RADIATOR

17831-37E11-000   1783137E11000

1783137E11000

Unit Price

33
DISCONTINUE
COVER, RADIATOR RH (YELLOW)

17760-29F70-YU1   1776029F70YU1

1776029F70YU1
Not available
33
DISCONTINUE
COVER, RADIATOR RH (BLACK)

17760-29F80-019   1776029F80019

1776029F80019
Not available
34
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F70-YHB   6866529F70YHB

6866529F70YHB
Not available
34
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F80-BYL   6866529F80BYL

6866529F80BYL
Not available
35
DISCONTINUE
COVER, RADIATOR LH (YELLOW)

17770-29F70-YU1   1777029F70YU1

1777029F70YU1
Not available
35
DISCONTINUE
COVER, RADIATOR LH (BLACK)

17770-29F80-019   1777029F80019

1777029F80019
Not available
36
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29F70-YHB   6867529F70YHB

6867529F70YHB
Not available
36
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29F80-BYL   6867529F80BYL

6867529F80BYL
Not available
37
DISCONTINUE
COVER, RADIATOR RH (BLACK)

17760-29F90-019   1776029F90019

1776029F90019
Not available
37
DISCONTINUE
COVER, RADIATOR RH (YELLOW)

17760-29F90-YU1   1776029F90YU1

1776029F90YU1
Not available
38
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F90-CET   6866529F90CET

6866529F90CET
Not available
38
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29F90-CNN   6866529F90CNN

6866529F90CNN
Not available
39
COVER, RADIATOR, L(BLACK)
COVER, RADIATOR LH (BLACK)

17770-29F90-019   1777029F90019

1777029F90019

Unit Price

39
COVER, RADIATOR, L(YELLOW)
COVER, RADIATOR LH (YELLOW)

17770-29F90-YU1   1777029F90YU1

1777029F90YU1

Unit Price

40
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29F90-CET   6867529F90CET

6867529F90CET
Not available
40
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29F90-CNN   6867529F90CNN

6867529F90CNN
Not available
41
DISCONTINUE
COVER, RADIATOR RH (BLACK)

17760-29FB0-019   1776029FB0019

1776029FB0019
Not available
41
DISCONTINUE
COVER, RADIATOR RH (BLUE)

17760-29FB0-YLW   1776029FB0YLW

1776029FB0YLW
Not available
42
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29FB0-DVU   6866529FB0DVU

6866529FB0DVU
Not available
42
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29FB0-DVV   6866529FB0DVV

6866529FB0DVV
Not available
43
COVER, RADIATOR, R(YELLOW)
COVER, RADIATOR RH (YELLOW)

17760-29FA0-YU1   1776029FA0YU1

1776029FA0YU1

Unit Price

44
TAPE, RADIATOR COVER, R
TAPE, RADIATOR COVER RH

68665-29FA0-DRA   6866529FA0DRA

6866529FA0DRA

Unit Price

45
DISCONTINUE
COVER, RADIATOR LH (BLACK)

17770-29FB0-019   1777029FB0019

1777029FB0019
Not available
45
DISCONTINUE
COVER, RADIATOR LH (BLUE)

17770-29FB0-YLW   1777029FB0YLW

1777029FB0YLW
Not available
46
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29FB0-DVU   6867529FB0DVU

6867529FB0DVU
Not available
46
DISCONTINUE
TAPE, RADIATOR COVER LH

68675-29FB0-DVV   6867529FB0DVV

6867529FB0DVV
Not available
47
COVER, RADIATOR, L(YELLOW)
COVER, RADIATOR LH (YELLOW)

17770-29FA0-YU1   1777029FA0YU1

1777029FA0YU1

Unit Price

48
TAPE, RADIATOR COVER, L
TAPE, RADIATOR COVER LH

68675-29FA0-DRA   6867529FA0DRA

6867529FA0DRA

Unit Price

49
COVER, RADIATOR, R(WHITE)
COVER, RADIATOR RH (WHITE)

17760-29FE0-30H   1776029FE030H

1776029FE030H

Unit Price

49
COVER, RADIATOR, R(BLACK)
COVER, RADIATOR RH (BLACK)

17760-29FF0-019   1776029FF0019

1776029FF0019

Unit Price

50
TAPE, RADIATOR COVER, R
TAPE, RADIATOR COVER RH

68665-29FE0-FCS   6866529FE0FCS

6866529FE0FCS

Unit Price

50
TAPE, RADIATOR COVER, R
TAPE, RADIATOR COVER RH

68665-29FF0-FCN   6866529FF0FCN

6866529FF0FCN

Unit Price

51
COVER, RADIATOR, L(WHITE)
COVER, RADIATOR LH (WHITE)

17770-29FE0-30H   1777029FE030H

1777029FE030H

Unit Price

51
COVER, RADIATOR, L(BLACK)
COVER, RADIATOR LH (BLACK)

17770-29FF0-019   1777029FF0019

1777029FF0019

Unit Price

52
TAPE, RADIATOR COVER, L
TAPE, RADIATOR COVER LH

68675-29FE0-FCS   6867529FE0FCS

6867529FE0FCS

Unit Price

52
TAPE, RADIATOR COVER, L
TAPE, RADIATOR COVER LH

68675-29FF0-FCN   6867529FF0FCN

6867529FF0FCN

Unit Price

53
COVER, RADIATOR, R(BLACK)
COVER, RADIATOR RH (BLACK)

17760-29FH0-019   1776029FH0019

1776029FH0019

Unit Price

53
COVER, RADIATOR, R(WHITE)
COVER, RADIATOR RH (WHITE)

17760-29FH0-30H   1776029FH030H

1776029FH030H

Unit Price

54
TAPE, RADIATOR COVER, R
TAPE, RADIATOR COVER RH

68665-29FH0-GHE   6866529FH0GHE

6866529FH0GHE

Unit Price

54
DISCONTINUE
TAPE, RADIATOR COVER RH

68665-29FH0-GHD   6866529FH0GHD

6866529FH0GHD
Not available
55
COVER, RADIATOR, L(BLACK)
COVER, RADIATOR LH (BLACK)

17770-29FH0-019   1777029FH0019

1777029FH0019

Unit Price

55
COVER, RADIATOR, L(WHITE)
COVER, RADIATOR LH (WHITE)

17770-29FH0-30H   1777029FH030H

1777029FH030H

Unit Price

56
TAPE, RADIATOR COVER, L
TAPE, RADIATOR COVER LH

68675-29FH0-GHD   6867529FH0GHD

6867529FH0GHD

Unit Price

56
TAPE, RADIATOR COVER, L
TAPE, RADIATOR COVER LH

68675-29FH0-GHE   6867529FH0GHE

6867529FH0GHE

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2007
