RIGHT LEVER - HANDGRIP

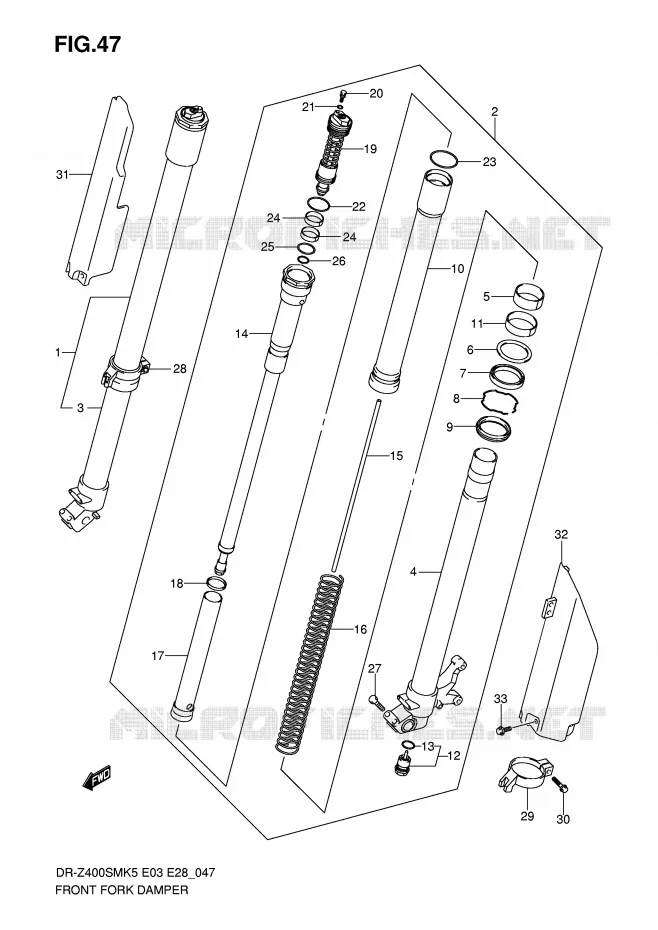

FRONT FORK FOR SUZUKI DR-Z 400 2007

STEERING STEM (MODEL K5 / K6) REFER TO FIG.48A(J- 6) FOR MODEL K7/K8/K9

DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-29F70-000 5110329F70000

$2 297,97

Unit Price

DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-29F70-000 5110429F70000

$2 297,97

Unit Price

TUBE, INNER, R
TUBE, INNER RH

51110-29F70-000 5111029F70000

$642,97

Unit Price

TUBE, INNER, L
TUBE, INNER LH

51120-29F70-000 5112029F70000

$597,97

Unit Price

BUSH, GUIDE

51167-36F00-000 5116736F00000

$23,97

Unit Price

SPACER, SEAL

51158-36F00-000 5115836F00000

$11,97

Unit Price

SEAL, OIL

51153-37F80-000 5115337F80000

$25,97

Unit Price

RING, OIL SEAL STOPPER
RING, STOPPER

51156-27C40-000 5115627C40000

$7,97

Unit Price

SEAL, DUST

51173-37F80-000 5117337F80000

$28,97

Unit Price

TUBE, OUTER

51130-29F70-000 5113029F70000

$804,97

Unit Price

BUSH, SLIDE

51121-36F00-000 5112136F00000

$19,97

Unit Price

BOLT, CTR
BOLT, CENTER

51170-37F70-000 5117037F70000

$159,97

Unit Price

O RING

51177-36E20-000 5117736E20000

$6,97

Unit Price

DAMPER
ROD, FRONT DAMPER

51190-29F70-000 5119029F70000

$861,97

Unit Price

ROD, PUSH

51191-29F70-000 5119129F70000

$35,97

Unit Price

SPRING, FR
SPRING, FRONT

51171-29F70-000 5117129F70000

$79,97

Unit Price

COLLAR, SPRING

51198-37F70-000 5119837F70000

$53,97

Unit Price

SPRING SEAT
SEAT, SPRING

51178-29F70-000 5117829F70000

$16,97

Unit Price

BOLT, FORK

51351-29F70-000 5135129F70000

$296,97

Unit Price

BOLT, PLUG

51357-36F20-000 5135736F20000

$16,97

Unit Price

O RING, PLUG

51358-28E30-000 5135828E30000

$5,97

Unit Price

O RING

51117-38F80-000 5111738F80000

Not available

O RING

51118-37F80-000 5111837F80000

$9,97

Unit Price

BUSH, FORK BOLT SLIDE
BUSH

51123-28E30-000 5112328E30000

$17,97

Unit Price

O RING

51174-36E40-000 5117436E40000

$6,97

Unit Price

O RING

51175-36E20-000 5117536E20000

$6,97

Unit Price

BOLT

51166-35F00-000 5116635F00000

$10,97

Unit Price

GUIDE, PROTECTOR, R

51220-36E61-000 5122036E61000

$54,97

Unit Price

GUIDE, PROTECTOR, L

51210-36E61-000 5121036E61000

$54,97

Unit Price

BOLT

01547-06207-000 0154706207000

$3,97

Unit Price

PROTECTOR, FR FORK, R
PROTECTOR, R

51501-29F70-019 5150129F70019

$150,97

Unit Price

PROTECTOR, FR FORK, R
PROTECTOR, R

51501-29F70-30H 5150129F7030H

$128,97

Unit Price

DISCONTINUE
PROTECTOR, R

51501-29F70-YU1 5150129F70YU1

Not available

PROTECTOR, FR FORK, L
PROTECTOR, L

51511-29F70-019 5151129F70019

$150,97

Unit Price

PROTECTOR, FR FORK, L
PROTECTOR, L

51511-29F70-30H 5151129F7030H

$128,97

Unit Price

PROTECTOR, FR FORK, L
PROTECTOR, L

51511-29F70-YU1 5151129F70YU1

$161,97

Unit Price

BOLT, EXHAUST VALVE S
BOLT

09103-06256-000 0910306256000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
