Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI DR-Z 400 2019

GEAR SHIFTING ASSY

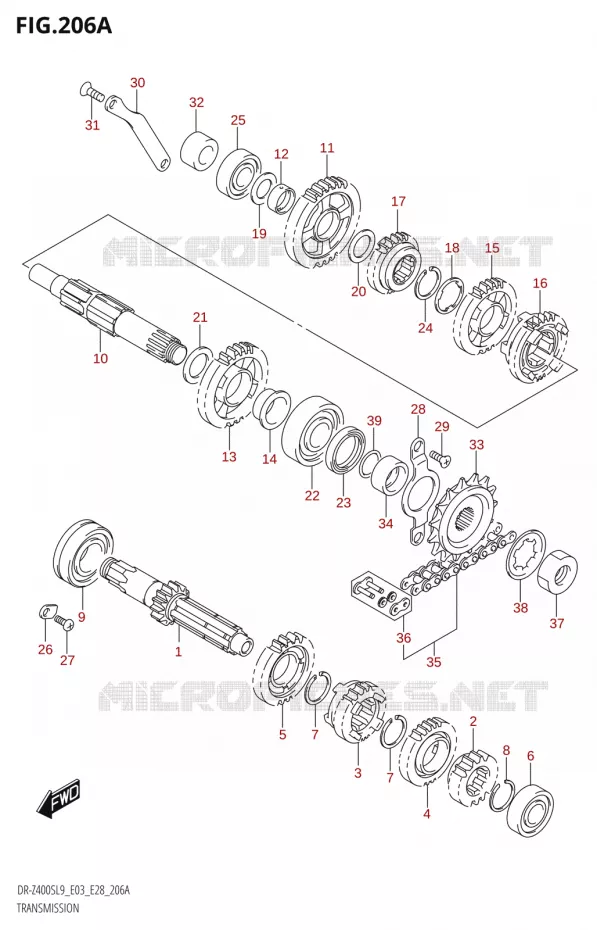

TRANSMISSION Suzuki MOTO 400 DR-Z 2019 DR-Z400S L9 (E28)
1
SHAFT, COUNTER(NT:14)

24120-05D20-000   2412005D20000

2412005D20000

Unit Price

2
GEAR, 2ND DRIVE(NT:15)

24221-28C20-000   2422128C20000

2422128C20000

Unit Price

3
GEAR, 3RD DRIVE(NT:16)

24231-05D02-000   2423105D02000

2423105D02000

Unit Price

4
GEAR, 4TH DRIVE(NT:22)

24241-05D01-000   2424105D01000

2424105D01000

Unit Price

5
GEAR, 5TH DRIVE(NT:22)

24251-05D00-000   2425105D00000

2425105D00000

Unit Price

6
BALL BEARING<br />BEARING(17X40X12)
BALL BEARING
BEARING(17X40X12)

09262-17027-000   0926217027000

0926217027000

Unit Price

7
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

8
CIRCLIP
CIRCLIP

09380-25013-000   0938025013000

0938025013000

Unit Price

9
BEARING(25X52X15)
BEARING(25X52X15)

09262-25003-000   0926225003000

0926225003000

Unit Price

10
SHAFT, DRIVE

24130-05D21-000   2413005D21000

2413005D21000

Unit Price

11
GEAR, 1ST DRIVEN(NT:32)

24311-05D00-000   2431105D00000

2431105D00000

Unit Price

12
BUSH, 1ST DRIVEN GEAR

24312-29F00-000   2431229F00000

2431229F00000

Unit Price

13
GEAR, 2ND DRIVEN(NT:26)

24321-28C02-000   2432128C02000

2432128C02000

Unit Price

14
BUSH, 2ND DRIVEN GEAR

24322-44E10-000   2432244E10000

2432244E10000

Unit Price

15
GEAR, 3RD DRIVEN(NT:22)

24331-05D01-000   2433105D01000

2433105D01000

Unit Price

16
GEAR, 4TH DRIVEN(NT:24)

24341-05D01-000   2434105D01000

2434105D01000

Unit Price

17
GEAR, 5TH DRIVEN(NT:19)

24351-05D20-000   2435105D20000

2435105D20000

Unit Price

18
WASHER<br />WASHER,LOCK(25.1X31X1.0)
WASHER
WASHER, LOCK(25.1X31X1.0)

09167-25012-000   0916725012000

0916725012000

Unit Price

19
SHIM
SHIM(17X30X1)

09181-17223-000   0918117223000

0918117223000

Unit Price

20
SHIM<br />SHIM(20X30X1)
SHIM
SHIM(20X30X1)

09181-20195-000   0918120195000

0918120195000

Unit Price

21
WASHER<br />SHIM(22X34X1)
WASHER
SHIM(22X34X1)

09181-22223-000   0918122223000

0918122223000

Unit Price

22
BEARING
BEARING(22X56X16)

09262-22024-000   0926222024000

0926222024000

Unit Price

23
OIL SEAL 30X40X6<br />SEAL,OIL(30X40X6)
OIL SEAL 30X40X6
SEAL, OIL(30X40X6)

09283-30053-000   0928330053000

0928330053000

Unit Price

24
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

25
BEARING(17X40X12)
BEARING(17X40X12)

09262-17023-000   0926217023000

0926217023000

Unit Price

26
RETAINER
RETAINER

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

27
BOLT, (6X12)
SCREW(6X12)

09125-06122-000   0912506122000

0912506122000

Unit Price

28
RETAINER, DRIVE SHAFT OIL SEAL

24751-29F00-000   2475129F00000

2475129F00000

Unit Price

29
SCREW(6X14)

09126-06007-000   0912606007000

0912606007000

Unit Price

30
RETAINER, KICK IDLE GEAR

26264-29F00-000   2626429F00000

2626429F00000

Unit Price

31
SCREW

02122-0616A-000  

02122-0616B-000
 021220616A000

Unit Price

32
SPACER(17X30.5X16.3)

09180-17055-000   0918017055000

0918017055000

Unit Price

33
27510-29E20
SPROCKET, ENGINE(NT:15)

27510-29E10-000   2751029E10000

2751029E10000
Not available
34
27531-29F10
SPACER, ENGINE SPROCKET

27531-29F00-000   2753129F00000

2753129F00000
Not available
35
CHAIN, DRIVE
CHAIN ASSY, DRIVE(RK520KZO, 112L)

27600-29F30-112   2760029F30112

2760029F30112

Unit Price

36
.JOINT SET, DRIVE CHAIN

27620-29F30-000   2762029F30000

2762029F30000

Unit Price

37
ENGINE SPROCKET NUT
NUT

09140-18006-000   0914018006000

0914018006000

Unit Price

38
ENG SPROCKET WASHER
WASHER, LOCK(22.5X40.3X0.8)

09167-22012-000   0916722012000

0916722012000

Unit Price

39
O-RING(D:2.5,ID:21)
O-RING(D:2.5, ID:21)

09280-21008-000   0928021008000

0928021008000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
