FRONT FORK FOR SUZUKI DR-Z 400 2019

STEERING COLUMN

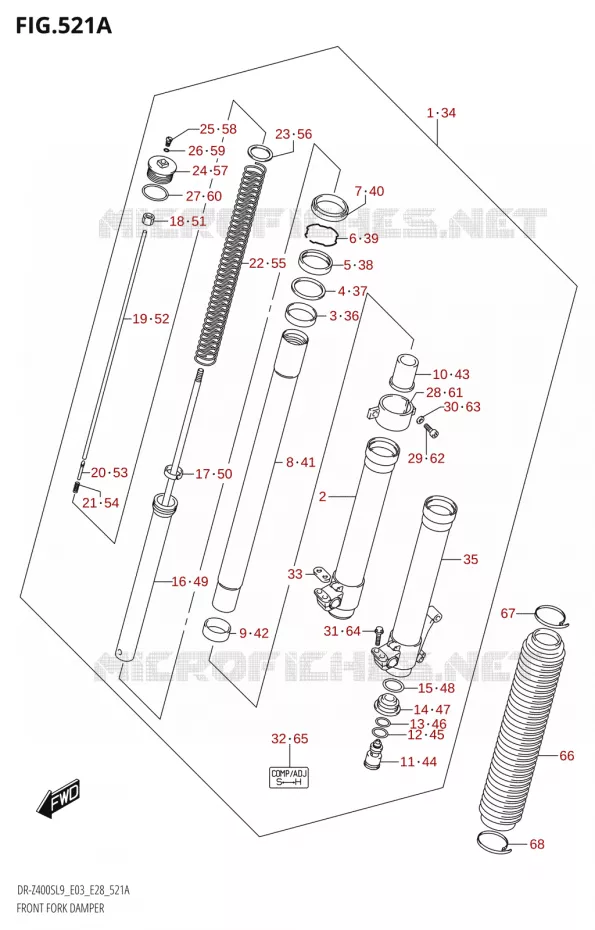

FRONT FORK Suzuki MOTO 400 DR-Z 2019 DR-Z400S L9 (E28)
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FR FORK RH

51103-29F60-000   5110329F60000

5110329F60000

Unit Price

2
TUBE, OUTER, R
.TUBE, OUTER RH

51130-29F60-000   5113029F60000

5113029F60000

Unit Price

3
.BUSH, GUIDE

51167-36E80-000   5116736E80000

5116736E80000

Unit Price

4
.SPACER, SEAL

51158-36E00-000   5115836E00000

5115836E00000

Unit Price

5
.SEAL, OIL

51153-36E00-000   5115336E00000

5115336E00000

Unit Price

6
.RING, STOPPER

51156-36E00-000   5115636E00000

5115636E00000

Unit Price

7
.SEAL, DUST

51173-36E00-000   5117336E00000

5117336E00000

Unit Price

8
.TUBE, INNER

51110-29F00-000   5111029F00000

5111029F00000

Unit Price

9
.BUSH, SLIDE

51121-36E40-000   5112136E40000

5112136E40000

Unit Price

10
.PIECE, OIL LOCK

51195-29F00-000   5119529F00000

5119529F00000

Unit Price

11
.BOLT, CTR

51170-29F00-000   5117029F00000

5117029F00000

Unit Price

12
..O RING

51175-29F00-000   5117529F00000

5117529F00000

Unit Price

13
..O RING

51174-29F00-000   5117429F00000

5117429F00000

Unit Price

14
.PLATE, END

51205-29F00-000   5120529F00000

5120529F00000

Unit Price

15
.O RING

51117-27C40-000   5111727C40000

5111727C40000

Unit Price

16
.ROD, FR DAMPER

51190-29F00-000   5119029F00000

5119029F00000

Unit Price

17
..BUSH, SLIDE

51122-29F00-000   5112229F00000

5112229F00000

Unit Price

18
..NUT
..NUT

51827-33E00-000   5182733E00000

5182733E00000

Unit Price

19
..ROD, PUSH

51191-29F00-000   5119129F00000

5119129F00000

Unit Price

20
..NEEDLE

51192-05D80-000   5119205D80000

5119205D80000

Unit Price

21
..SPRING, PUSH ROD

51193-28E00-000   5119328E00000

5119328E00000

Unit Price

22
.SPRING, FR(K=8.63N/0.88KG)

51171-29F60-000   5117129F60000

5117129F60000

Unit Price

23
.JOINT, SPRING

51192-36E00-000   5119236E00000

5119236E00000

Unit Price

24
.BOLT, FORK

51351-29F00-000   5135129F00000

5135129F00000

Unit Price

25
..BOLT, PLUG

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

26
O RING, PLUG
..O-RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

27
.O RING

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

28
.HOLDER, BOOT

51203-29F00-000   5120329F00000

5120329F00000

Unit Price

29
.BOLT

07130-05207-000   0713005207000

0713005207000

Unit Price

30
.WASHER(5.5X10X1)

09160-05044-000   0916005044000

0916005044000

Unit Price

31
.BOLT, HANDLE HOLDER(8X35)

51321-27C40-000   5132127C40000

5132127C40000

Unit Price

32
.LABEL

51149-29E40-000   5114929E40000

5114929E40000

Unit Price

33
.COVER, AXLE HOLDER

51516-29F00-000   5151629F00000

5151629F00000

Unit Price

34
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FR FORK LH

51104-29F60-000   5110429F60000

5110429F60000

Unit Price

35
TUBE, OUTER, L
.TUBE, OUTER LH

51140-29F60-000   5114029F60000

5114029F60000

Unit Price

36
.BUSH, GUIDE

51167-36E80-000   5116736E80000

5116736E80000

Unit Price

37
.SPACER, SEAL

51158-36E00-000   5115836E00000

5115836E00000

Unit Price

38
.SEAL, OIL

51153-36E00-000   5115336E00000

5115336E00000

Unit Price

39
.RING, STOPPER

51156-36E00-000   5115636E00000

5115636E00000

Unit Price

40
.SEAL, DUST

51173-36E00-000   5117336E00000

5117336E00000

Unit Price

41
.TUBE, INNER

51110-29F00-000   5111029F00000

5111029F00000

Unit Price

42
.BUSH, SLIDE

51121-36E40-000   5112136E40000

5112136E40000

Unit Price

43
.PIECE, OIL LOCK

51195-29F00-000   5119529F00000

5119529F00000

Unit Price

44
.BOLT, CTR

51170-29F00-000   5117029F00000

5117029F00000

Unit Price

45
..O RING

51175-29F00-000   5117529F00000

5117529F00000

Unit Price

46
..O RING

51174-29F00-000   5117429F00000

5117429F00000

Unit Price

47
.PLATE, END

51205-29F00-000   5120529F00000

5120529F00000

Unit Price

48
.O RING

51117-27C40-000   5111727C40000

5111727C40000

Unit Price

49
.ROD, FR DAMPER

51190-29F00-000   5119029F00000

5119029F00000

Unit Price

50
..BUSH, SLIDE

51122-29F00-000   5112229F00000

5112229F00000

Unit Price

51
..NUT
..NUT

51827-33E00-000   5182733E00000

5182733E00000

Unit Price

52
..ROD, PUSH

51191-29F00-000   5119129F00000

5119129F00000

Unit Price

53
..NEEDLE

51192-05D80-000   5119205D80000

5119205D80000

Unit Price

54
..SPRING, PUSH ROD

51193-28E00-000   5119328E00000

5119328E00000

Unit Price

55
.SPRING, FR(K=8.63N/0.88KG)

51171-29F60-000   5117129F60000

5117129F60000

Unit Price

56
.JOINT, SPRING

51192-36E00-000   5119236E00000

5119236E00000

Unit Price

57
.BOLT, FORK

51351-29F00-000   5135129F00000

5135129F00000

Unit Price

58
..BOLT, PLUG

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

59
O RING, PLUG
..O-RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

60
.O RING

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

61
.HOLDER, BOOT

51203-29F00-000   5120329F00000

5120329F00000

Unit Price

62
.BOLT

07130-05207-000   0713005207000

0713005207000

Unit Price

63
.WASHER(5.5X10X1)

09160-05044-000   0916005044000

0916005044000

Unit Price

64
.BOLT, HANDLE HOLDER(8X35)

51321-27C40-000   5132127C40000

5132127C40000

Unit Price

65
.LABEL

51149-29E40-000   5114929E40000

5114929E40000

Unit Price

66
BOOT

51571-29F00-019  

51571-29F01-019
 5157129F00019

Unit Price

67
BAND, BOOT UPR
BAND, BOOT, UPPER

51575-29F00-000   5157529F00000

5157529F00000

Unit Price

68
BAND, BOOT LWR
BAND, BOOT, LOWER

51576-29F00-000   5157629F00000

5157629F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2019
