Finish line

Parts catalogue

Parts diagram

LEFT LEVER - HANDGRIP

FRONT FORK (DR-Z400S) FOR SUZUKI DR-Z 400 2021

FRONT FORK (DR-Z400SM)

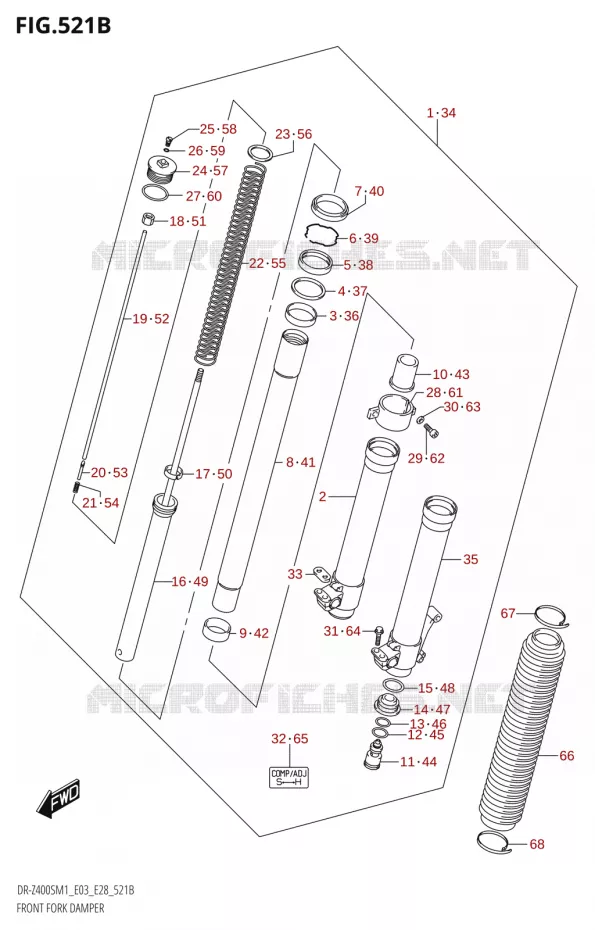

FRONT FORK (DR-Z400S) Suzuki MOTO 400 DR-Z 2021 DR-Z400S 2021 M1 (E28)
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FR FORK RH

51103-29F60-000   5110329F60000

5110329F60000

Unit Price

2
TUBE, OUTER, R
.TUBE, OUTER RH

51130-29F60-000   5113029F60000

5113029F60000

Unit Price

3
.BUSH, GUIDE

51167-36E80-000   5116736E80000

5116736E80000

Unit Price

4
.SPACER, SEAL

51158-36E00-000   5115836E00000

5115836E00000

Unit Price

5
.SEAL, OIL

51153-36E00-000   5115336E00000

5115336E00000

Unit Price

6
.RING, STOPPER

51156-36E00-000   5115636E00000

5115636E00000

Unit Price

7
.SEAL, DUST

51173-36E00-000   5117336E00000

5117336E00000

Unit Price

8
.TUBE, INNER

51110-29F00-000   5111029F00000

5111029F00000

Unit Price

9
.BUSH, SLIDE

51121-36E40-000   5112136E40000

5112136E40000

Unit Price

10
.PIECE, OIL LOCK

51195-29F00-000   5119529F00000

5119529F00000

Unit Price

11
.BOLT, CTR

51170-29F00-000   5117029F00000

5117029F00000

Unit Price

12
..O RING

51175-29F00-000   5117529F00000

5117529F00000

Unit Price

13
..O RING

51174-29F00-000   5117429F00000

5117429F00000

Unit Price

14
.PLATE, END

51205-29F00-000   5120529F00000

5120529F00000

Unit Price

15
.O RING

51117-27C40-000   5111727C40000

5111727C40000

Unit Price

16
.ROD, FR DAMPER

51190-29F00-000   5119029F00000

5119029F00000

Unit Price

17
..BUSH, SLIDE

51122-29F00-000   5112229F00000

5112229F00000

Unit Price

18
..NUT
..NUT

51827-33E00-000   5182733E00000

5182733E00000

Unit Price

19
..ROD, PUSH

51191-29F00-000   5119129F00000

5119129F00000

Unit Price

20
..NEEDLE

51192-05D80-000   5119205D80000

5119205D80000

Unit Price

21
..SPRING, PUSH ROD

51193-28E00-000   5119328E00000

5119328E00000

Unit Price

22
.SPRING, FR(K=8.63N/0.88KG)

51171-29F60-000   5117129F60000

5117129F60000

Unit Price

23
.JOINT, SPRING

51192-36E00-000   5119236E00000

5119236E00000

Unit Price

24
.BOLT, FORK

51351-29F00-000   5135129F00000

5135129F00000

Unit Price

25
..BOLT, PLUG

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

26
O RING, PLUG
..O-RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

27
.O RING

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

28
.HOLDER, BOOT

51203-29F00-000   5120329F00000

5120329F00000

Unit Price

29
.BOLT

07130-05207-000   0713005207000

0713005207000

Unit Price

30
.WASHER(5.5X10X1)

09160-05044-000   0916005044000

0916005044000

Unit Price

31
.BOLT, HANDLE HOLDER(8X35)

51321-27C40-000   5132127C40000

5132127C40000

Unit Price

32
.LABEL

51149-29E40-000   5114929E40000

5114929E40000

Unit Price

33
.COVER, AXLE HOLDER

51516-29F00-000   5151629F00000

5151629F00000

Unit Price

34
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FR FORK LH

51104-29F60-000   5110429F60000

5110429F60000

Unit Price

35
TUBE, OUTER, L
.TUBE, OUTER LH

51140-29F60-000   5114029F60000

5114029F60000

Unit Price

36
.BUSH, GUIDE

51167-36E80-000   5116736E80000

5116736E80000

Unit Price

37
.SPACER, SEAL

51158-36E00-000   5115836E00000

5115836E00000

Unit Price

38
.SEAL, OIL

51153-36E00-000   5115336E00000

5115336E00000

Unit Price

39
.RING, STOPPER

51156-36E00-000   5115636E00000

5115636E00000

Unit Price

40
.SEAL, DUST

51173-36E00-000   5117336E00000

5117336E00000

Unit Price

41
.TUBE, INNER

51110-29F00-000   5111029F00000

5111029F00000

Unit Price

42
.BUSH, SLIDE

51121-36E40-000   5112136E40000

5112136E40000

Unit Price

43
.PIECE, OIL LOCK

51195-29F00-000   5119529F00000

5119529F00000

Unit Price

44
.BOLT, CTR

51170-29F00-000   5117029F00000

5117029F00000

Unit Price

45
..O RING

51175-29F00-000   5117529F00000

5117529F00000

Unit Price

46
..O RING

51174-29F00-000   5117429F00000

5117429F00000

Unit Price

47
.PLATE, END

51205-29F00-000   5120529F00000

5120529F00000

Unit Price

48
.O RING

51117-27C40-000   5111727C40000

5111727C40000

Unit Price

49
.ROD, FR DAMPER

51190-29F00-000   5119029F00000

5119029F00000

Unit Price

50
..BUSH, SLIDE

51122-29F00-000   5112229F00000

5112229F00000

Unit Price

51
..NUT
..NUT

51827-33E00-000   5182733E00000

5182733E00000

Unit Price

52
..ROD, PUSH

51191-29F00-000   5119129F00000

5119129F00000

Unit Price

53
..NEEDLE

51192-05D80-000   5119205D80000

5119205D80000

Unit Price

54
..SPRING, PUSH ROD

51193-28E00-000   5119328E00000

5119328E00000

Unit Price

55
.SPRING, FR(K=8.63N/0.88KG)

51171-29F60-000   5117129F60000

5117129F60000

Unit Price

56
.JOINT, SPRING

51192-36E00-000   5119236E00000

5119236E00000

Unit Price

57
.BOLT, FORK

51351-29F00-000   5135129F00000

5135129F00000

Unit Price

58
..BOLT, PLUG

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

59
O RING, PLUG
..O-RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

60
.O RING

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

61
.HOLDER, BOOT

51203-29F00-000   5120329F00000

5120329F00000

Unit Price

62
.BOLT

07130-05207-000   0713005207000

0713005207000

Unit Price

63
.WASHER(5.5X10X1)

09160-05044-000   0916005044000

0916005044000

Unit Price

64
.BOLT, HANDLE HOLDER(8X35)

51321-27C40-000   5132127C40000

5132127C40000

Unit Price

65
.LABEL

51149-29E40-000   5114929E40000

5114929E40000

Unit Price

66
BOOT

51571-29F01-000   5157129F01000

5157129F01000
Not available
67
BAND, BOOT UPR
BAND, BOOT, UPPER

51575-29F00-000   5157529F00000

5157529F00000

Unit Price

68
BAND, BOOT LWR
BAND, BOOT, LOWER

51576-29F00-000   5157629F00000

5157629F00000

Unit Price
