Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

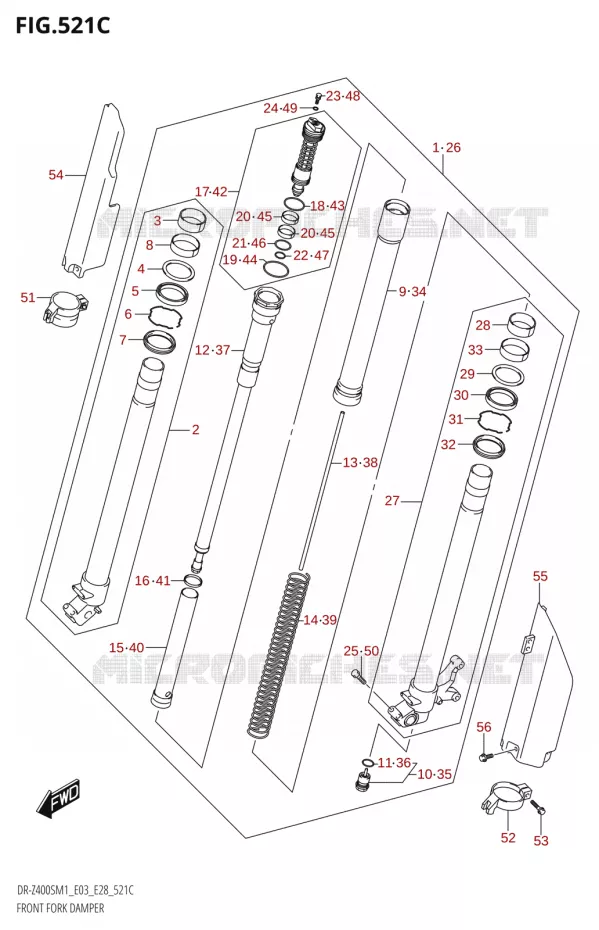

FRONT FORK (DR-Z400S)

FRONT FORK (DR-Z400SM) FOR SUZUKI DR-Z 400 2021

STEERING COLUMN (DR-Z400S)

FRONT FORK (DR-Z400SM) Suzuki MOTO 400 DR-Z 2021 DR-Z400S 2021 M1 (E28)
1
DAMPER ASSY, FR FORK, R

51103-29F70-000   5110329F70000

5110329F70000

Unit Price

2
.TUBE, INNER, R

51110-29F70-000   5111029F70000

5111029F70000

Unit Price

3
..BUSH, GUIDE

51167-36F00-000   5116736F00000

5116736F00000

Unit Price

4
..SPACER, SEAL

51158-36F00-000   5115836F00000

5115836F00000

Unit Price

5
..SEAL, OIL

51153-37F80-000   5115337F80000

5115337F80000

Unit Price

6
..RING, OIL SEAL STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

7
..SEAL, DUST

51173-37F80-000   5117337F80000

5117337F80000

Unit Price

8
..BUSH, SLIDE

51121-36F00-000   5112136F00000

5112136F00000

Unit Price

9
TUBE, OUTER
.TUBE, OUTER, R

51130-29F70-000   5113029F70000

5113029F70000

Unit Price

10
BOLT, CTR
.BOLT, CENTER

51170-37F70-000   5117037F70000

5117037F70000

Unit Price

11
..O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

12
.DAMPER

51190-29F70-000   5119029F70000

5119029F70000

Unit Price

13
.ROD, PUSH

51191-29F70-000   5119129F70000

5119129F70000

Unit Price

14
.SPRING, FR

51171-29F70-000   5117129F70000

5117129F70000

Unit Price

15
.COLLAR, SPRING

51198-37F70-000   5119837F70000

5119837F70000

Unit Price

16
.SPRING SEAT

51178-29F70-000   5117829F70000

5117829F70000

Unit Price

17
.BOLT, FORK

51351-29F70-000   5135129F70000

5135129F70000

Unit Price

18
..O RING

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

19
..O RING

51117-36E60-000   5111736E60000

5111736E60000

Unit Price

20
..BUSH, FORK BOLT SLIDE

51123-28E30-000   5112328E30000

5112328E30000

Unit Price

21
..O RING

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

22
..O RING

51175-36F00-000   5117536F00000

5117536F00000
Not available
23
.BOLT, PLUG

51357-36F20-000   5135736F20000

5135736F20000

Unit Price

24
O RING, PLUG
..O-RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

25
.BOLT

51166-35F00-000   5116635F00000

5116635F00000

Unit Price

26
DAMPER ASSY, FR FORK, L

51104-29F70-000   5110429F70000

5110429F70000

Unit Price

27
.TUBE, INNER, L

51120-29F70-000   5112029F70000

5112029F70000

Unit Price

28
..BUSH, GUIDE

51167-36F00-000   5116736F00000

5116736F00000

Unit Price

29
..SPACER, SEAL

51158-36F00-000   5115836F00000

5115836F00000

Unit Price

30
..SEAL, OIL

51153-37F80-000   5115337F80000

5115337F80000

Unit Price

31
..RING, OIL SEAL STOPPER

51156-27C40-000   5115627C40000

5115627C40000

Unit Price

32
..SEAL, DUST

51173-37F80-000   5117337F80000

5117337F80000

Unit Price

33
..BUSH, SLIDE

51121-36F00-000   5112136F00000

5112136F00000

Unit Price

34
TUBE, OUTER
.TUBE, OUTER, R

51130-29F70-000   5113029F70000

5113029F70000

Unit Price

35
BOLT, CTR
.BOLT, CENTER

51170-37F70-000   5117037F70000

5117037F70000

Unit Price

36
..O RING

51177-36E20-000   5117736E20000

5117736E20000

Unit Price

37
.DAMPER

51190-29F70-000   5119029F70000

5119029F70000

Unit Price

38
.ROD, PUSH

51191-29F70-000   5119129F70000

5119129F70000

Unit Price

39
.SPRING, FR

51171-29F70-000   5117129F70000

5117129F70000

Unit Price

40
.COLLAR, SPRING

51198-37F70-000   5119837F70000

5119837F70000

Unit Price

41
.SPRING SEAT

51178-29F70-000   5117829F70000

5117829F70000

Unit Price

42
.BOLT, FORK

51351-29F70-000   5135129F70000

5135129F70000

Unit Price

43
..O RING

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

44
..O RING

51117-36E60-000   5111736E60000

5111736E60000

Unit Price

45
..BUSH, FORK BOLT SLIDE

51123-28E30-000   5112328E30000

5112328E30000

Unit Price

46
..O RING

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

47
..O RING

51175-36F00-000   5117536F00000

5117536F00000
Not available
48
.BOLT, PLUG

51357-36F20-000   5135736F20000

5135736F20000

Unit Price

49
O RING, PLUG
..O-RING

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

50
.BOLT

51166-35F00-000   5116635F00000

5116635F00000

Unit Price

51
GUIDE, PROTECTOR, L

51210-36E61-000   5121036E61000

5121036E61000

Unit Price

52
GUIDE, PROTECTOR, R

51220-36E61-000   5122036E61000

5122036E61000

Unit Price

53
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

54
PROTECTOR, FR FORK, R
PROTECTOR, FR FORK, R(BLACK)

51501-29F70-019   5150129F70019

5150129F70019

Unit Price

55
PROTECTOR, FR FORK, L
PROTECTOR, FR FORK, L(BLACK)

51511-29F70-019   5151129F70019

5151129F70019

Unit Price

56
BOLT, EXHAUST VALVE S
BOLT(6X10)

09103-06256-000   0910306256000

0910306256000

Unit Price
