HEADLIGHT (LT-F400FL4 P17)

HEADLIGHT (LT-F400FZL3 P17) FOR SUZUKI KINGQUAD 400 2014

TAIL LIGHT ASSY (LT-F400FL4 P17)

Item numbers

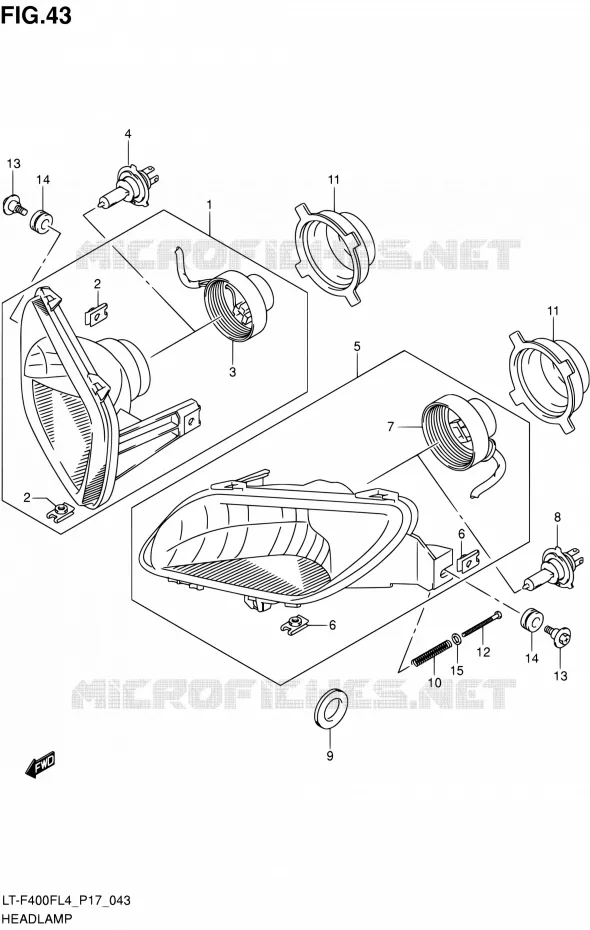

HEADLIGHT (LT-F400FZL3 P17) Suzuki QUAD 400 KINGQUAD 2014 LT-F400F L4/LT-F400FZ L4 (P17)
1
2
2
3
4
5
6
6
7
8
9
10
11
11
12
13
13
14
14
15
1
HEADLAMP ASSY, R
HEADLAMP ASSY, RH

35100-31G92-999   3510031G92999

3510031G92999

Unit Price

2
NUT
.NUT (M6)

35157-31G90-000   3515731G90000

3515731G90000

Unit Price

3
CORD ASSY, R
.CORD ASSY, RH

35171-31GM1-000   3517131GM1000

3517131GM1000

Unit Price

4
BULB(12V35/36.5W)
BULB (12V, 35/35W)

09471-12101-000  

0947112101000
Not available
5
HEADLAMP ASSY, L
HEADLAMP ASSY, LH

35300-31G92-999  

3530031G92999
Not available
6
NUT
.NUT (M6)

35157-31G90-000   3515731G90000

3515731G90000

Unit Price

7
CORD ASSY, L
.CORD ASSY, LH

35171-31GH1-000   3517131GH1000

3517131GH1000

Unit Price

8
BULB(12V35/36.5W)
BULB (12V, 35/35W)

09471-12101-000  

0947112101000
Not available
9
GROMMET

09308-07011-000  

0930807011000
Not available
10
SPRING
SPRING, HEADLAMP ADJUST

35154-31300-000   3515431300000

3515431300000

Unit Price

11
COVER, HEADLAMP HSG
COVER, HEADLAMP HOUSING

35174-31G00-000   3517431G00000

3517431G00000
Not available
12
SCREW, HEADLAMP ADJUS
SCREW (4X50)

09125-04031-000   0912504031000

0912504031000

Unit Price

13
SCREW
SCREW (6X22.5)

09139-06118-000   0913906118000

0913906118000

Unit Price

14
CUSHION
CUSHION

09320-10501-000   0932010501000

0932010501000

Unit Price

15
WASHER
WASHER

08322-0104A-000   083220104A000

083220104A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (LT-F400FZL3 P17) of your Suzuki of KINGQUAD. Let us know if you have any questions.
