Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL COOLER (LT-F400FL4 P17)

OIL COOLER (LT-F400FZL4 P17) FOR SUZUKI KINGQUAD 400 2014

FUEL PUMP

Item numbers

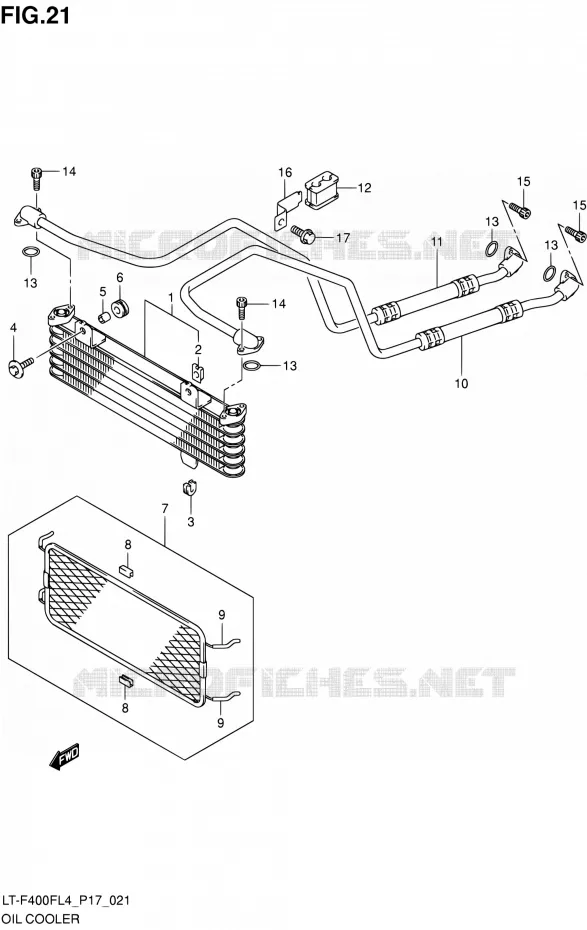

OIL COOLER (LT-F400FZL4 P17) Suzuki QUAD 400 KINGQUAD 2014 LT-F400F L4/LT-F400FZ L4 (P17)
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
13
13
13
14
14
15
15
16
17
1
COOLER ASM, OIL

16600-38F20-000  

16600-38F21-000
 1660038F20000

Unit Price

2
NUT, RADIATOR FAN
.NUT

17802-14F00-000   1780214F00000

1780214F00000

Unit Price

3
CUSHION,OIL COOLER NO.2<br />CUSHION, OIL COOLER
CUSHION, OIL COOLER NO.2
CUSHION, OIL COOLER

16628-27A00-000   1662827A00000

1662827A00000

Unit Price

4
BOLT
BOLT (6X25)

09116-06093-000   0911606093000

0911606093000

Unit Price

5
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

6
CUSHION
CUSHION

09320-10015-000   0932010015000

0932010015000

Unit Price

7
GUARD COMP, OIL COOLER

16650-27H00-000  

16650-27H01-000
 1665027H00000

Unit Price

8
PROTECTOR, CTR

16654-27H00-000  

16654-27H01-000
 1665427H00000

Unit Price

9
HOSE
HOSE

09352-30503-600  

09352-30504-600
 0935230503600

Unit Price

10
HOSE COMP, OIL COOLER
HOSE, OIL COOLER INLET

16460-38F10-000   1646038F10000

1646038F10000

Unit Price

11
HOSE COMP, OIL COLLER
HOSE, OIL COOLER OUTLET

16470-38F10-000   1647038F10000

1647038F10000

Unit Price

12
GROMMET, OIL HOSE

16468-38F00-000  

16468-38F01-000
 1646838F00000

Unit Price

13
O RING,CYLINDER<br />O RING (D:2.4,ID:12.3)
O RING, CYLINDER
O RING (D:2.4, ID:12.3)

09280-12008-000   0928012008000

0928012008000

Unit Price

14
BOLT

07130-0616A-000  

07130-0616B-000
 071300616A000

Unit Price

15
BOLT<br />BOLT (6X16)
BOLT
BOLT (6X16)

09106-06073-000   0910606073000

0910606073000

Unit Price

16
CLAMP, OIL HOSE

16490-38F00-000   1649038F00000

1649038F00000

Unit Price

17
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER (LT-F400FZL4 P17) of your Suzuki of KINGQUAD. Let us know if you have any questions.
