FRONT FENDER (LT-F400FL5 P33)

REAR FENDER FOR SUZUKI KINGQUAD 400 2015

MUDGUARD (LT-F400FL5 P28)

Item numbers

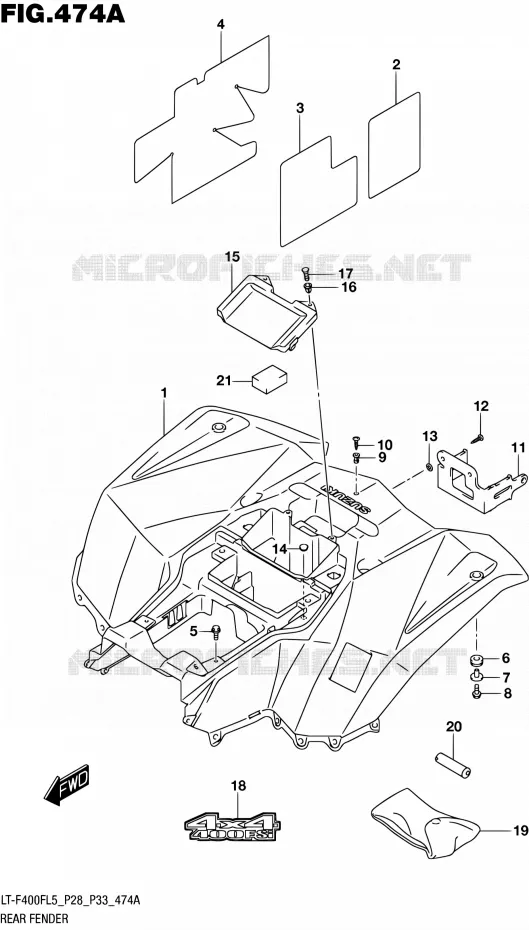

REAR FENDER Suzuki QUAD 400 KINGQUAD 2015 LT-F400F L5/LT-F400FZ L5 (P03,P28,P33)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
FENDER, RR
FENDER, REAR (GREEN)

63111-27H02-YLG   6311127H02YLG

6311127H02YLG

Unit Price

1
FENDER, RR
FENDER, REAR (RED)

63111-27H02-YT9   6311127H02YT9

6311127H02YT9

Unit Price

2
SHIELD, RR FENDER
SHIELD, REAR FENDER

63122-27H10-000   6312227H10000

6312227H10000

Unit Price

3
SHIELD, RR FENDER

63123-27H10-000  

63123-27H20-000
 6312327H10000

Unit Price

4
SHIELD, RR FENDER
SHIELD, REAR FENDER

63124-27H10-000   6312427H10000

6312427H10000

Unit Price

5
BOLT 6X16 W/PL-WASHE
BOLT (6X16)

09116-06006-000   0911606006000

0911606006000

Unit Price

6
CUSHION(11.5X32X12.2)
CUSHION

09320-11021-000   0932011021000

0932011021000

Unit Price

7
WASHER

09169-06074-000   0916906074000

0916906074000

Unit Price

8
BOLT
BOLT

01550-0625A-000   015500625A000

015500625A000

Unit Price

9
NUT,WINDSCREEN
NUT, WINDSCREEN

09159-05019-000  

94618-48H10-000
 0915905019000

Unit Price

10
SCREW
SCREW

02142-0520B-000   021420520B000

021420520B000

Unit Price

11
PLATE, CDI UNIT

47413-27H00-000   4741327H00000

4741327H00000

Unit Price

12
RIVET
RIVET

09229-04020-000   0922904020000

0922904020000

Unit Price

13
WASHER
WASHER

08322-0104A-000   083220104A000

083220104A000

Unit Price

14
DISCONTINUE
CAP (OD:16)

09250-08018-000   0925008018000

0925008018000
Not available
15
COVER, REAR FENDER

63112-27H00-000   6311227H00000

6311227H00000

Unit Price

16
GROMMET

09409-08329-000   0940908329000

0940908329000

Unit Price

17
PLUNGER

09409-08330-000   0940908330000

0940908330000

Unit Price

18
EMBLEM, RR FENDER

68171-27HG0-JLJ  

68171-27HG1-JLJ
 6817127HG0JLJ

Unit Price

19
TOOL ASM
TOOL ASSY

09800-21057-000   0980021057000

0980021057000

Unit Price

20
GAUGE ASSY, AIR PRESSURE
GAUGE ASSY, AIR

96200-18A02-000   9620018A02000

9620018A02000

Unit Price

21
CUSHION
CUSHION, TOOL

45146-31G10-000   4514631G10000

4514631G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki of KINGQUAD. Let us know if you have any questions.
