GEAR SHIFTING ASSY (1) (LT-F400FL5 P33)

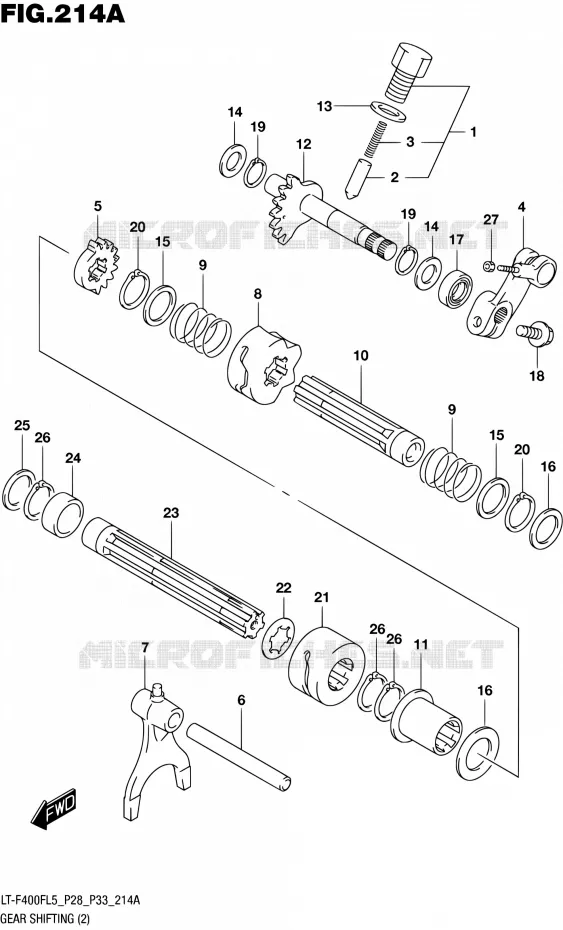

GEAR SHIFTING ASSY (2) FOR SUZUKI KINGQUAD 400 2015

DRIVESHAFT (LT-F400FL5 P28)

Item numbers

STOPPER, SUB T/M SHIFT CAM

25350-38F60-000 2535038F60000

$22,97

Unit Price

.STOPPER

25351-38F50-000 2535138F50000

$11,97

Unit Price

SPRING, SUB T/M SHIFT CAM STOP
.SPRING

29613-38F60-000 2961338F60000

$5,97

Unit Price

ARM, SUB T/M GEAR SHIFTT
ARM, SUB T/M GEAR SHIFT

25360-11H10-000 2536011H10000

$62,97

Unit Price

PLATE, SUB T/M GR SHIFT CAM
PLATE, SUB T/M GEAR (NT:16)

25381-38F60-000 2538138F60000

$31,97

Unit Price

SHAFT, GEAR SHIFT FORK
SHAFT, SUB T/M GEAR

25411-13A01-000 2541113A01000

$17,97

Unit Price

FORK, SUB T/M GEAR SHIFT
FORK, SUB T/M GEAR

29511-38F50-000 2951138F50000

$71,97

Unit Price

CAM, SUB T/M GEAR SHIFT
CAM, SUB T/M GEAR

29611-38F60-000 2961138F60000

$74,97

Unit Price

SPRING, REVERSE SHIFT CAM
SPRING, SUB T/M SHIFT

29612-38F50-000 2961238F50000

$4,97

Unit Price

SHAFT, SUB T/M GEAR SHIFT
SHAFT, SUB T/M GEAR

29620-38F50-000 2962038F50000

$76,97

Unit Price

JOINT, SHIFT CAM SHAFT

29625-38F50-000 2962538F50000

$24,97

Unit Price

SHAFT, SUB T/M SHIFT NO.2
SHAFT, SUB T/M NO.2 (NT:20)

29640-38F60-000 2964038F60000

$63,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$2,97

Unit Price

WASHER, THRUST
SHIM (12X20X1)

09181-12167-000 0918112167000

$3,97

Unit Price

SHIM (20X26X1)

09181-20139-000 0918120139000

$4,97

Unit Price

WASHER
SHIM (20X34X1)

09181-20251-000 0918120251000

$4,97

Unit Price

OIL SEAL
OIL SEAL (12X22X9)

09285-12006-000 0928512006000

$10,97

Unit Price

BOLT

01550-0620A-000 015500620A000

$2,97

Unit Price

CIRCLIP

08331-3112A-000 083313112A000

$2,97

Unit Price

CIRCLIP

08331-3120A-000 083313120A000

$3,97

Unit Price

CAM, REVERSE SHIFT

25321-38F70-000 2532138F70000

$58,97

Unit Price

PLATE, SHIFT CAM LOCK

25322-38F70-000 2532238F70000

$10,97

Unit Price

SHAFT, REVERSE CAM
SHAFT, REVERSE SHIFT

25531-38F50-000 2553138F50000

$64,97

Unit Price

SPACER, REVERSE SHIFT CAM

25532-38F70-000 2553238F70000

$12,97

Unit Price

SHIM, T:1.0
SHIM (20X28X1)

09181-20167-000 0918120167000

$4,97

Unit Price

CIRCLIP

08331-3120A-000 083313120A000

$3,97

Unit Price

NUT

08310-0006A-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY (2) of your Suzuki of KINGQUAD. Let us know if you have any questions.
