HEADLIGHT (LT-F400FL7 P33)

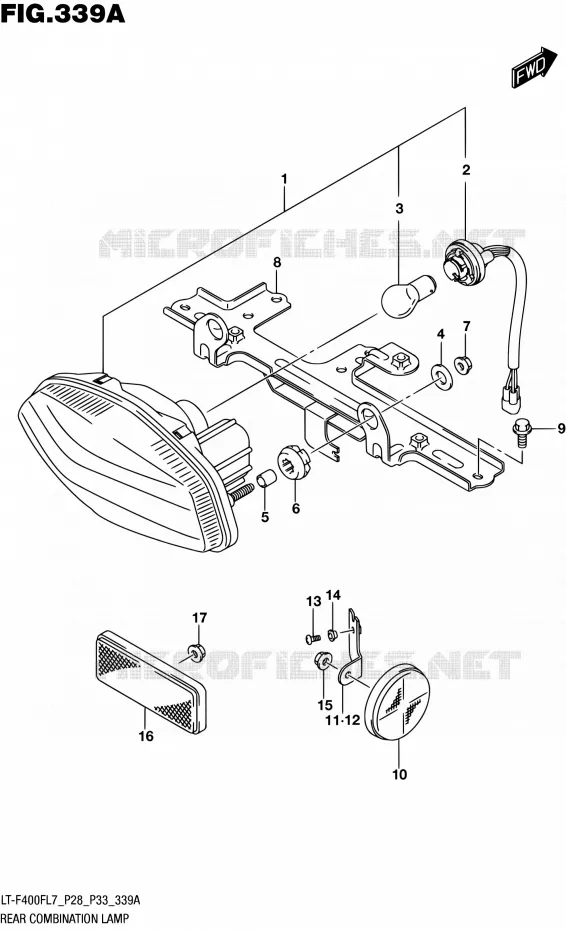

TAIL LIGHT ASSY (LT-F400FL7 P28) FOR SUZUKI KINGQUAD 400 2017

TAIL LIGHT ASSY (LT-F400FL7 P33)

Item numbers

LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMBINATION

35710-31G00-000 3571031G00000

$76,97

Unit Price

SOCKET, BULB
.SOCKET & BULB

35718-03G30-000 3571803G30000

$49,97

Unit Price

BULB(12V1.4W G30)

09471-12128-000

09471-12083-000

$9,97

Unit Price

WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000 0916006077000

$3,97

Unit Price

SPACER (6.5X9X10.5)

09180-06264-000 0918006264000

$3,97

Unit Price

CUSHION

09320-09018-000 0932009018000

$3,97

Unit Price

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

BRACKET, RR COMBINATION LAMP
BRACKET, REAR COMBINATION LAMP

35720-27H30-000 3572027H30000

$34,97

Unit Price

BOLT

01550-0612A-000 015500612A000

$2,97

Unit Price

REFLECTOR ASSY, RR SIDE
REFLECTOR ASSY, REAR SIDE

35970-14A20-000 3597014A20000

$20,97

Unit Price

BRACKET, RR SIDE RR, R
BRACKET, REAR SIDE RR RH

35975-27H00-000 3597527H00000

$8,97

Unit Price

BRACKET, RR SIDE RR, L
BRACKET, REAR SIDE RR LH

35976-27H00-000 3597627H00000

$8,97

Unit Price

SCREW (5X8)

09125-05073-000 0912505073000

$3,97

Unit Price

WASHER

09169-06071-000 0916906071000

$4,97

Unit Price

NUT

08316-1005B-000 083161005B000

$4,97

Unit Price

REFLECTOR ASSY, RR
REFLECTOR ASSY, REAR

35970-07F01-000 3597007F01000

$18,97

Unit Price

NUT

08316-1005B-000 083161005B000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT ASSY (LT-F400FL7 P28) of your Suzuki KINGQUAD 400 FSi SEMI-AUTOMATIC of KINGQUAD. Let us know if you have any questions.
