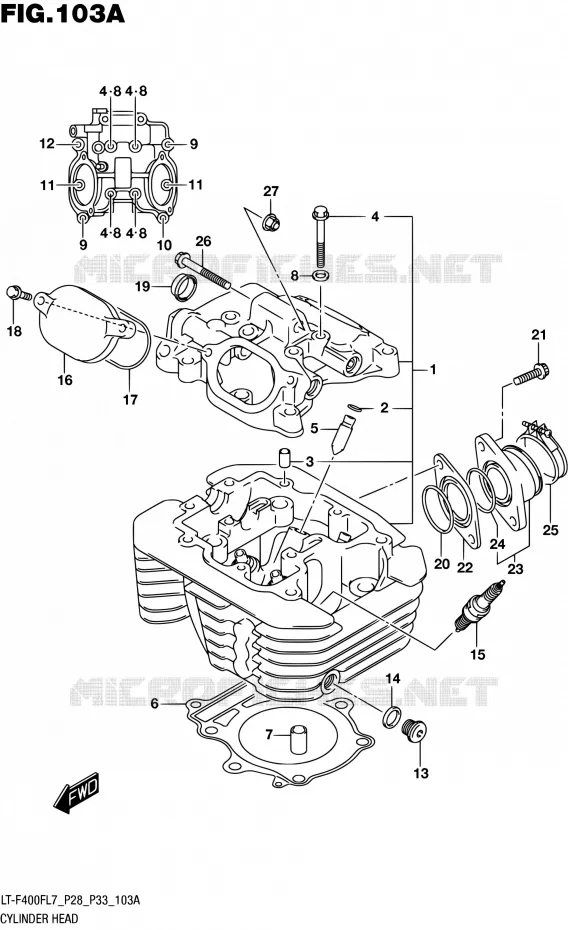

CYLINDER HEAD (LT-F400FL7 P28) FOR SUZUKI KINGQUAD 400 2017

CYLINDER HEAD (LT-F400FL7 P33)

Item numbers

HEAD ASSY, CYLINDER

11100-27H20-000 1110027H20000

$982,97

Unit Price

RING, VALVE GUIDE
.SNAP RING

09381-10004-000 0938110004000

$2,97

Unit Price

.PIN (8X11)

09206-08001-000 0920608001000

$2,97

Unit Price

.BOLT (6X55)

09103-06102-000 0910306102000

$3,97

Unit Price

GUIDE, VALVE
GUIDE, VALVE (OS:0.3)

11115-14D71-000 1111514D71000

$39,97

Unit Price

GASKET, CYLINDER HEAD

11141-38F00-000 1114138F00000

$40,97

Unit Price

CLUTCH COVER PI **S1
PIN (10.4X13X22)

09206-13004-000 0920613004000

$3,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

BOLT
BOLT (6X35)

09103-06108-000 0910306108000

$3,97

Unit Price

CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000 0910306026000

$2,97

Unit Price

BOLT

01550-0625A-000 015500625A000

$3,97

Unit Price

BOLT

01550-0630A-000 015500630A000

$3,97

Unit Price

PLUG
PLUG (L:12)

09248-12004-000 0924812004000

$11,97

Unit Price

GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000 0916812002000

Not available

PLUG, SPARK, CR7EIA-9

09482-00553-000

09482-00554-000

$20,45

Unit Price

PLUG, SPARK CR8EIA-9

09482-00555-000

09482-00556-000

$20,45

Unit Price

SPARK PLUG CR6EIA-9
SPARK PLUG (NGK, CR6EIA-9)

09482-00590-000 0948200590000

$21,45

Unit Price

CAP, INSPECTION

11175-47D00-000 1117547D00000

$23,97

Unit Price

O RING, INSPECTION CAP

11177-14D01-000 1117714D01000

$6,97

Unit Price

BOLT

01550-0620A-000 015500620A000

$3,97

Unit Price

PLUG, CYL HEAD
PLUG (OD:30)

09241-25007-000 0924125007000

$10,97

Unit Price

O RING

09280-40010-000

09280-40020-000

$7,97

Unit Price

BOLT
SCREW

07120-0625A-000 071200625A000

$4,97

Unit Price

INSULATOR, INTAKE PIPE

13117-38F01-000 1311738F01000

$14,97

Unit Price

PIPE ASSY, INTAKE

13101-27H00-000

13101-27H01-000

$60,97

Unit Price

.O RING

13118-38F00-000 1311838F00000

$7,97

Unit Price

CLAMP

09402-54208-000 0940254208000

$9,97

Unit Price

BOLT (8X60)

09103-08217-000 0910308217000

$5,97

Unit Price

NUT

08319-3108A-000 083193108A000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD (LT-F400FL7 P28) of your Suzuki KINGQUAD 400 FSi SEMI-AUTOMATIC of KINGQUAD. Let us know if you have any questions.
