Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

BATTERY

HEADLIGHT FOR SUZUKI QUADSPORT 400 2004

TAIL LIGHT (MODEL K3 E3,E33) REFER TO FIG.28A(F- 4) FOR MODEL K4 E33

Item numbers

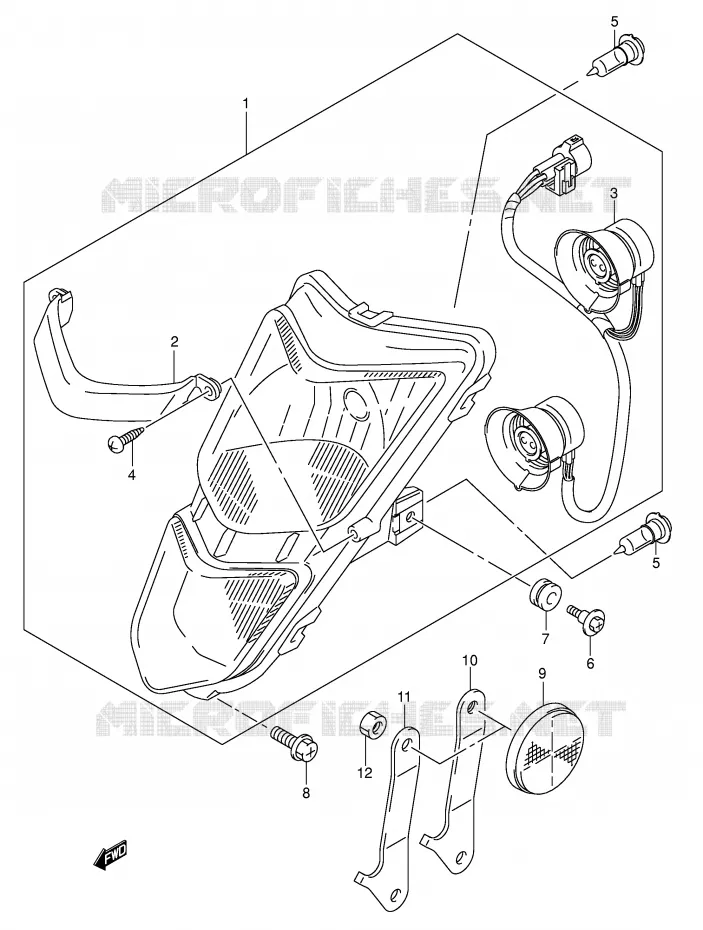

HEADLIGHT Suzuki QUAD 400 QUADSPORT 2004 LT-Z400ZK4(E3/E28)
1
1
1
2
2
2
3
4
5
5
6
7
8
9
10
10
11
11
12
1
HEADLAMP ASSY
HEADLAMP ASSY (BLACK)

35100-07G00-019   3510007G00019

3510007G00019

Unit Price

1
HEADLAMP ASSY
HEADLAMP ASSY (WHITE)

35100-07G00-30H   3510007G0030H

3510007G0030H

Unit Price

1
HEADLAMP ASSY
HEADLAMP ASSY (YELLOW)

35100-07G00-YU1   3510007G00YU1

3510007G00YU1

Unit Price

2
DISCONTINUE
MOLDING (BLACK)

35143-07G00-019   3514307G00019

3514307G00019
Not available
2
DISCONTINUE
MOLDING (WHITE)

35143-07G00-30H   3514307G0030H

3514307G0030H
Not available
2
DISCONTINUE
MOLDING (YELLOW)

35143-07G00-YU1   3514307G00YU1

3514307G00YU1
Not available
3
SOCKET & CORD ASSY
SOCKET/CORD ASSY

35171-07G00-000   3517107G00000

3517107G00000

Unit Price

4
SCREW

03511-04123-000  

03511-0412A-000
 0351104123000

Unit Price

5
BULB(12V1.7W, WB372, T7)
BULB (14V30/30W)

09471-12097-000  

0947112097000
Not available
6
SCREW
SCREW, HEADLAMP

09139-06118-000   0913906118000

0913906118000

Unit Price

7
CUSHION
CUSHION

09320-10501-000   0932010501000

0932010501000

Unit Price

8
02162-0616C
BOLT, HEADLAMP ADJUST

02162-06163-000  

0216206163000
Not available
9
REFLECTOR,REFLEX FR<br />REFLEX REFLECTOR ASSY, FR
REFLECTOR, REFLEX FR
REFLEX REFLECTOR ASSY, FR

35950-14A00-000   3595014A00000

3595014A00000

Unit Price

10
35956-07G01
BRACKET, FR SIDE, RH

35956-07G00-000  

3595607G00000
Not available
10
DISCONTINUE

35957-07G00-000  

3595707G00000
Not available
11
DISCONTINUE
BRACKET, FR SIDE, RH

35956-07G01-000  

3595607G01000
Not available
11
DISCONTINUE
BRACKET, FR SIDE, LH

35957-07G01-000   3595707G01000

3595707G01000
Not available
12
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
