OIL PUMP FOR SUZUKI QUADSPORT 400 2004

OIL HOSE

Item numbers

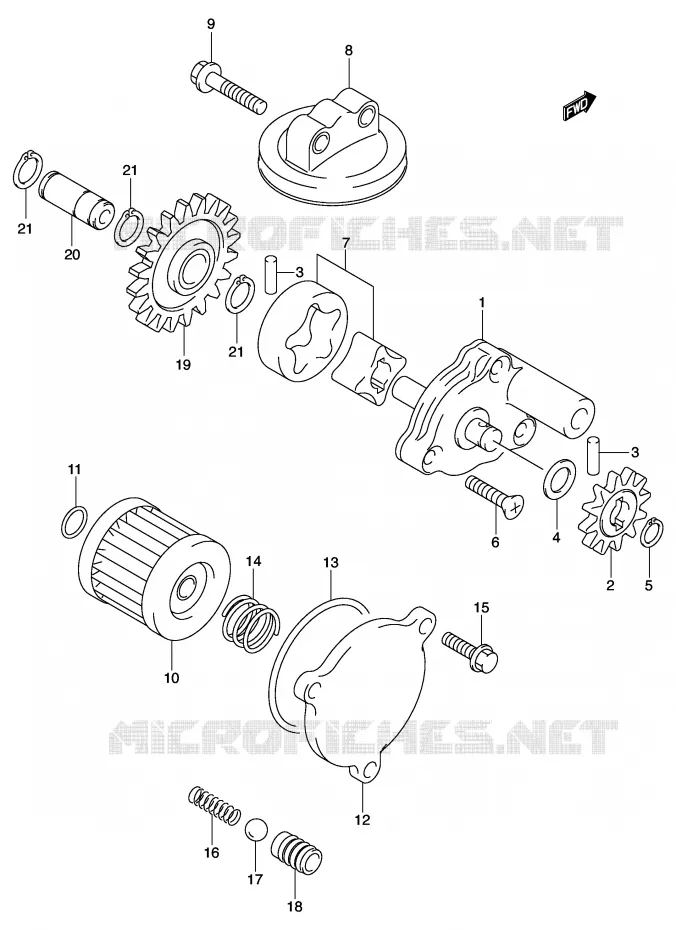

OIL PUMP Suzuki QUAD 400 QUADSPORT 2004 LT-Z400ZK4(E3/E28)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
1
PUMP ASSY, ENGINE OIL NO.1

16400-29F00-000   1640029F00000

1640029F00000

Unit Price

2
GEAR, OIL PUMP DRIVEN
GEAR, DRIVEN

16331-29F01-000   1633129F01000

1633129F01000

Unit Price

3
GR SHIFT CAM DR PIN<br />PIN
GR SHIFT CAM DR PIN
PIN

09261-04009-000   0926104009000

0926104009000

Unit Price

4
SHIM,10X18X0.5<br />WASHER
SHIM, 10X18X0.5
WASHER

09181-10158-000   0918110158000

0918110158000

Unit Price

5
CIRCLIP

08331-31106-000  

08331-31109-000
 0833131106000

Unit Price

6
SCREW

02122-06253-000  

02122-0625B-000
 0212206253000

Unit Price

7
ROTOR SET, OIL PUMP NO.2

16410-29F00-000   1641029F00000

1641029F00000

Unit Price

8
STRAINER, OIL PUMP NO.2

16520-29F00-000  

16520-29F01-000
 1652029F00000

Unit Price

9
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

10
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-29F00-000   1651029F00000

1651029F00000

Unit Price

11
ENG OIL PUMP O RING<br />O RING (D:1.9,ID:13.0)
ENG OIL PUMP O RING
O RING (D:1.9, ID:13.0)

09280-13004-000   0928013004000

0928013004000

Unit Price

12
CAP, OIL FILTER

16512-47E00-000   1651247E00000

1651247E00000

Unit Price

13
O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

14
SPRING
SPRING

09440-18002-000   0944018002000

0944018002000

Unit Price

15
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

16
SPRING

09440-07073-000   0944007073000

0944007073000

Unit Price

17
BALL

06111-12004-000   0611112004000

0611112004000

Unit Price

18
SEAT, OIL CHECK VALVE

16442-29F00-000   1644229F00000

1644229F00000

Unit Price

19
GEAR, OIL PUMP IDLE

16321-29F00-000   1632129F00000

1632129F00000

Unit Price

20
SHAFT, OIL PUMP IDLE GEAR
SHAFT

16322-29F00-000   1632229F00000

1632229F00000

Unit Price

21
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price
