FRAME FOR SUZUKI QUADSPORT 400 2009

FOOTREST

Item numbers

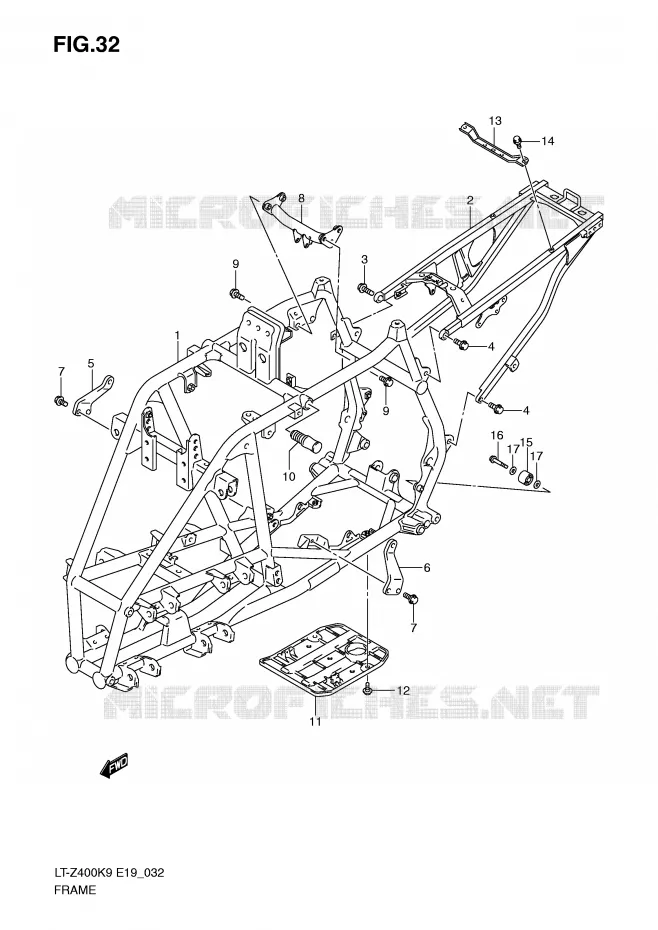

FRAME Suzuki QUAD 400 QUADSPORT 2009 LT-Z400ZK9(E19)
1
1
1
1
2
2
2
3
4
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
17
1
FRAME(BLACK)

41100-33H00-019  

41100-33H10-019
 4110033H00019

Unit Price

1
FRAME (GRAY)

41100-33H10-YPT   4110033H10YPT

4110033H10YPT

Unit Price

1
DISCONTINUE
FRAME (BLUE)

41100-33H00-YBA  

4110033H00YBA
Not available
2
RAIL, SEAT (BLACK)

41200-33H01-019   4120033H01019

4120033H01019

Unit Price

2
DISCONTINUE
RAIL, SEAT (SILVER)

41200-33H00-YD8  

4120033H00YD8
Not available
3
BOLT(10X30)
BOLT, RH

09103-10421-000   0910310421000

0910310421000

Unit Price

4
BOLT, LH

09103-10424-000   0910310424000

0910310424000
Not available
5
PLATE, ENG MTG FR, R
PLATE, MOUNT FRONT RH

41911-07G00-000   4191107G00000

4191107G00000

Unit Price

6
PLATE, ENG MTG FR, L
PLATE, MOUNT FRONT LH

41912-07G00-000   4191207G00000

4191207G00000

Unit Price

7
BOLT

01550-0820A-000   015500820A000

015500820A000

Unit Price

8
PLATE, ENG MTG UPR
PLATE, MOUNT UPPER

41990-07G40-000   4199007G40000

4199007G40000

Unit Price

9
BOLT
BOLT

01550-0816B-000   015500816B000

015500816B000

Unit Price

10
GUARD, RADIATOR

43978-33H00-000   4397833H00000

4397833H00000
Not available
11
PROTECTOR, ENGINE

42511-07G00-000   4251107G00000

4251107G00000

Unit Price

12
BOLT

09111-06085-000   0911106085000

0911106085000

Unit Price

13
PLATE, BATTERY

41560-33H01-000   4156033H01000

4156033H01000

Unit Price

14
BOLT(6X20)<br />BOLT
BOLT(6X20)
BOLT

09103-06286-000   0910306286000

0910306286000

Unit Price

15
ROLLER, CHAIN
ROLLER, CHAIN CONTROL

43910-37F00-000   4391037F00000

4391037F00000

Unit Price

16
BOLT, CHAIN ROLL *S1
BOLT

09103-08083-000   0910308083000

0910308083000

Unit Price

17
WASHER

09181-08111-000   0918108111000

0918108111000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
