CRANKCASE COVER

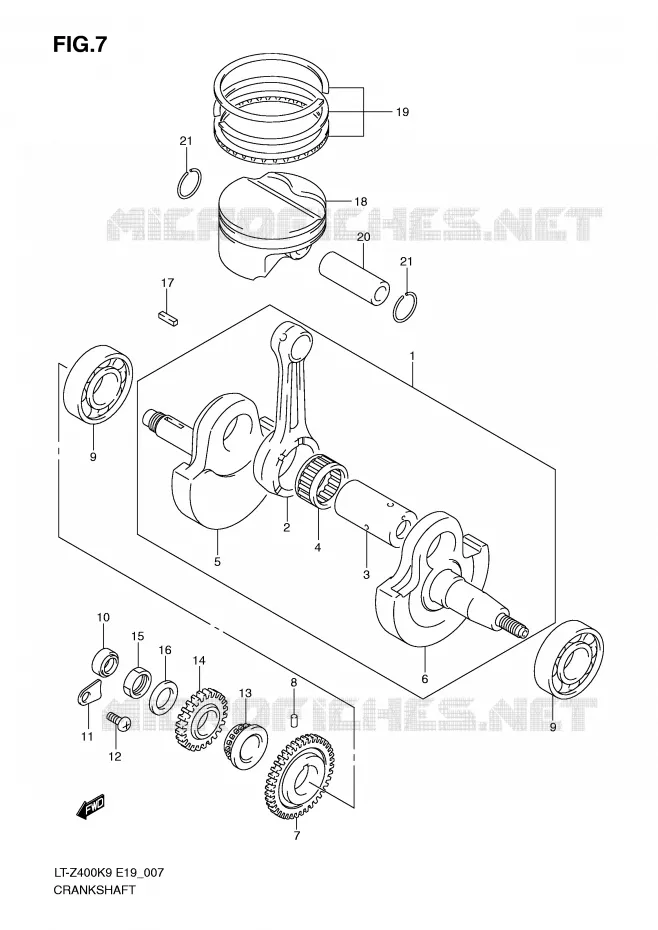

CRANKSHAFT FOR SUZUKI QUADSPORT 400 2009

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT ASSY

12200-33H00-000

Not available

CONNECTING ROD ASSY
ROD, CONNECTING

12160-29F10-0B0 1216029F100B0

$163,97

Unit Price

PIN, CRANK
PIN

12210-29F20-000 1221029F20000

$82,97

Unit Price

BEARING, 35X43X2
BEARING

09263-35047-0B0 09263350470B0

$99,97

Unit Price

CRANKSHAFT, R
CRANKSHAFT, RH

12221-07G01-000 1222107G01000

$266,97

Unit Price

CRANKSHAFT, L
CRANKSHAFT, LH

12261-07G00-000 1226107G00000

$286,97

Unit Price

GEAR, CRANK BALANCER DRIVE
GEAR, BALANCER DRIVE

12661-29F00-000 1266129F00000

$109,97

Unit Price

KNOCK PIN, SPROCKET
PIN

09261-05005-000 0926105005000

$2,97

Unit Price

BEARING

09262-30100-000 0926230100000

$112,97

Unit Price

OIL SEAL
OIL SEAL, RH (14X24X6)

09282-14003-000 0928214003000

$14,97

Unit Price

RETAINER, BEARING
RETAINER, OIL SEAL RH

24742-18A00-000 2474218A00000

$5,97

Unit Price

SCREW

02112-0612B-000 021120612B000

$2,97

Unit Price

SPROCKET, CAM CHAIN DRIVE

12731-29F10-000 1273129F10000

$62,97

Unit Price

GEAR, PRIMARY DRIVE

21111-29F10-000 2111129F10000

$74,97

Unit Price

NUT

09140-18012-000 0914018012000

$13,97

Unit Price

WASHER

09164-18008-000 0916418008000

$6,97

Unit Price

KEY
KEY, GEAR

09421-05002-000 0942105002000

$7,97

Unit Price

PISTON

12111-29F00-0F0 1211129F000F0

$162,97

Unit Price

RING SET, PISTON

12140-29F00-000 1214029F00000

$90,97

Unit Price

PIN, PISTON

12151-24F10-000 1215124F10000

$23,97

Unit Price

CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000 0938120004000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
