LEVERS - HANDGRIPS (MODEL X / Y) REFER TO FIG.46A(I-9) FOR MODEL K1/K2

LEVERS - HANDGRIPS (MODEL K1 / K2) FOR SUZUKI BURGMAN 400 1999

FRONT FORK (MODEL X) REFER TO FIG.53A(K-3) FOR MODEL Y

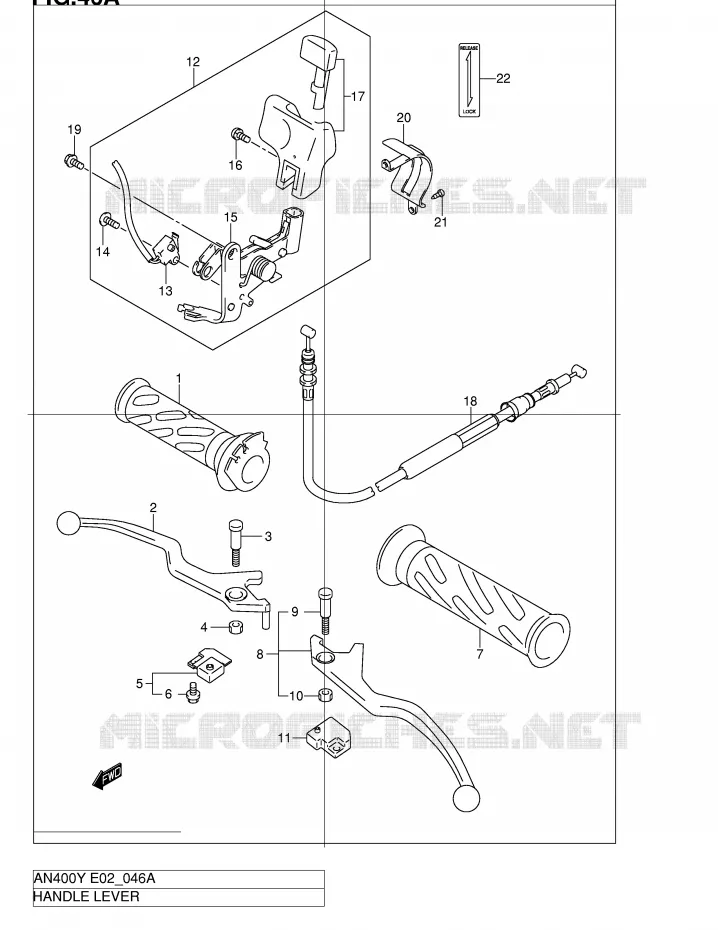

LEVERS - HANDGRIPS (MODEL K1/K2) Suzuki SCOOTER 400 BURGMAN 1999 AN400X(E2)
1
GRIP,THROTTLE
GRIP, THROTTLE

57110-46E01-000  

57110-46E02-000
 5711046E01000

Unit Price

2
LEVER, FR BRAKE
LEVER, FRONT BRAKE

57421-14F00-000   5742114F00000

5742114F00000

Unit Price

3
BOLT, BRAKE LEVER PIVOT

57431-04F00-000   5743104F00000

5743104F00000

Unit Price

4
NUT, LEVER, PIVOT

57433-09F00-000   5743309F00000

5743309F00000

Unit Price

5
SWITCH ASSY, STOP

57460-14J00-000  

57460-14J02-000
 5746014J00000

Unit Price

6
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

7
GRIP, L(BLACK)

57211-22D01-000  

57211-22D02-291
 5721122D01000

Unit Price

8
LEVER ASSY, RR BRAKE
LEVER ASSY, REAR BRAKE

57500-14F00-000   5750014F00000

5750014F00000

Unit Price

9
BOLT, BRAKE LEVER PIVOT

57431-04F00-000   5743104F00000

5743104F00000

Unit Price

10
NUT

08319-21063-000  

08319-2106A-000
 0831921063000

Unit Price

11
SWITCH ASSY, RR BRAKE

57560-14J00-000  

57560-14J02-000
 5756014J00000

Unit Price

12
LEVER ASSY, BRAKE LOCK

57800-14FA0-000   5780014FA0000

5780014FA0000
Not available
12
LEVER ASSY, BRAKE LOCK

57800-14FA1-000   5780014FA1000

5780014FA1000
Not available
13
SWITCH ASSY, BRAKE LOCK

57870-14F01-000   5787014F01000

5787014F01000
Not available
14
SCREW, SWITCH

57852-14F00-000   5785214F00000

5785214F00000
Not available
15
LEVER, BRAKE LOCK

57810-14FA1-000   5781014FA1000

5781014FA1000
Not available
16
SCREW, BRAKE LOCK

57851-14F00-000   5785114F00000

5785114F00000
Not available
17
KNOB SET, BRAKE LOCK

57802-14FA1-000   5780214FA1000

5780214FA1000
Not available
17
KNOB SET, BRAKE LOCK

57820-14820-000   5782014820000

5782014820000
Not available
18
CABLE, BRAKE LOCK

58810-14FA0-000   5881014FA0000

5881014FA0000
Not available
19
SCREW

02162-06123-000  

02162-0612A-000
 0216206123000

Unit Price

20
PLATE, LEVER SEAL

57950-14F00-000   5795014F00000

5795014F00000
Not available
21
SCREW

03511-04103-000  

03511-0410A-000
 0351104103000

Unit Price

22
LABEL, BRAKE LOCK

57891-14F00-000   5789114F00000

5789114F00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVERS - HANDGRIPS (MODEL K1/K2) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
