REAR CALIPER (MODEL X / Y) REFER TO FIG.61A(L-8) FOR MODEL K1/K2

REAR CALIPER (MODEL K1 / K2) FOR SUZUKI BURGMAN 400 1999

REAR BRAKE HOSE

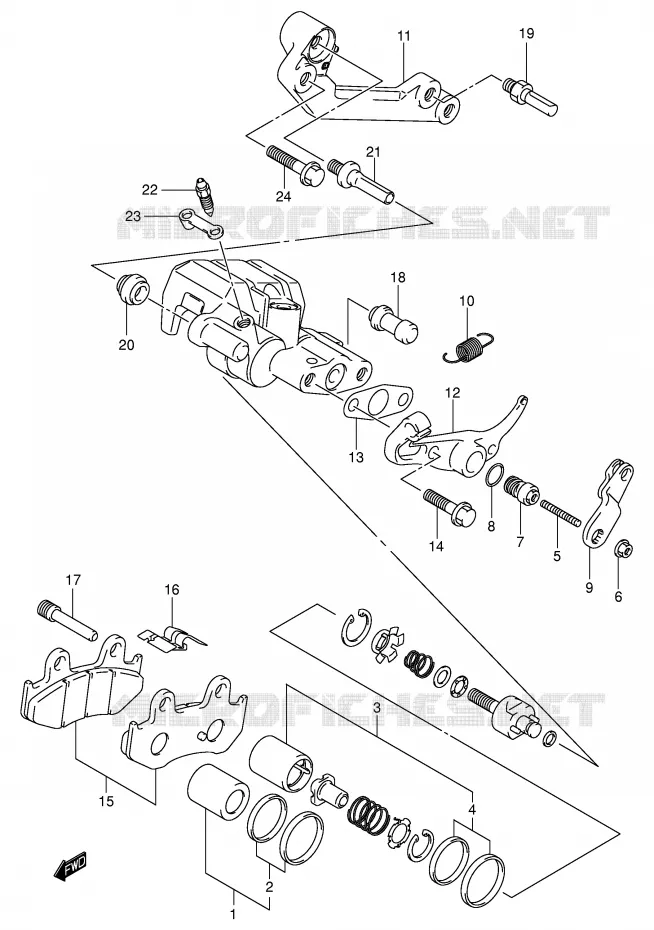

REAR CALIPER (MODEL K1/K2) Suzuki SCOOTER 400 BURGMAN 1999 AN400X(E2)
1
PISTON SET

69100-14820-000   6910014820000

6910014820000

Unit Price

2
SEAL SET, PISTON

69100-21840-000   6910021840000

6910021840000

Unit Price

3
PISTON SET

69100-14870-000   6910014870000

6910014870000

Unit Price

4
SEAL SET, PISTON

69100-21840-000   6910021840000

6910021840000

Unit Price

5
BOLT

69127-14F40-000   6912714F40000

6912714F40000

Unit Price

6
NUT

69123-14F40-000   6912314F40000

6912314F40000

Unit Price

7
DISCONTINUE
SHAFT

69124-14F40-000   6912414F40000

6912414F40000
Not available
8
O RING

69122-14F40-000   6912214F40000

6912214F40000

Unit Price

9
ARM

69125-14F50-000   6912514F50000

6912514F50000

Unit Price

10
SPRING, RETURN

69128-14F00-000   6912814F00000

6912814F00000

Unit Price

11
BRACKET

69150-14F00-000   6915014F00000

6915014F00000

Unit Price

12
DISCONTINUE
PARKING

69120-14F40-000   6912014F40000

6912014F40000
Not available
13
PACKING

69126-14F40-000   6912614F40000

6912614F40000

Unit Price

14
BOLT (8X25)

69121-14F00-000   6912114F00000

6912114F00000

Unit Price

15
PAD SET

69100-14860-000   6910014860000

6910014860000
Not available
16
SPRING, PAD

69115-31D10-000   6911531D10000

6911531D10000

Unit Price

17
PIN, HANGER

59345-13E00-000   5934513E00000

5934513E00000

Unit Price

18
BOOT
BOOT

59386-13A00-000   5938613A00000

5938613A00000

Unit Price

19
BOLT
BOLT

59382-27C30-000   5938227C30000

5938227C30000

Unit Price

20
BOOT
BOOT

59303-14500-000   5930314500000

5930314500000
Not available
21
PIN

59305-27C00-000   5930527C00000

5930527C00000

Unit Price

22
BLEEDER
BLEEDER

59121-01A00-000   5912101A00000

5912101A00000

Unit Price

23
CAP, BLEEDER
CAP, BLEEDER

59122-01A00-000   5912201A00000

5912201A00000

Unit Price

24
BOLT
BOLT

01550-08357-000   0155008357000

0155008357000

Unit Price

99x
CALIPER ASSY, REAR

69100-14F50-000   6910014F50000

6910014F50000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER (MODEL K1/K2) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
