SPEEDOMETER (MODEL Y) REFER TO FIG.26B(E-6) FOR MODEL K1/K2

SPEEDOMETER (MODEL K1 / K2) FOR SUZUKI BURGMAN 400 2000

HEADLIGHT (MODEL X / Y) REFER TO FIG.27A(E-8) FOR MODEL X/Y E4,E18,E22,E34,E54,P37

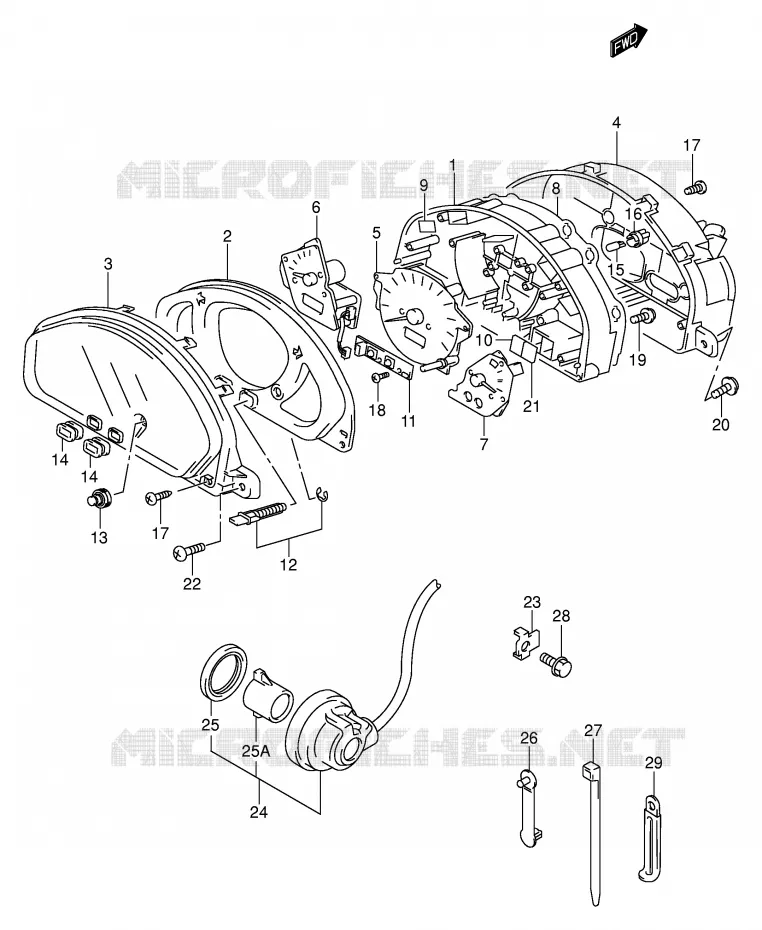

SPEEDOMETER (MODEL K1/K2) Suzuki SCOOTER 400 BURGMAN 2000 AN400RY(E2)
1
CASE, LWR WINDOW

34111-14F00-000   3411114F00000

3411114F00000
Not available
2
PLATE, WINDOW

34113-14F00-000   3411314F00000

3411314F00000
Not available
3
GLASS, FR

34112-14F00-000   3411214F00000

3411214F00000
Not available
4
CASE, LWR

34152-14F01-000   3415214F01000

3415214F01000
Not available
5
SPEEDOMETER (KILO)

34110-14FB0-000   3411014FB0000

3411014FB0000
Not available
5
SPEEDOMETER (MILE/KILO)

34110-14FD0-000   3411014FD0000

3411014FD0000
Not available
6
BODY ASSY, FUEL METER

34320-14FB0-000   3432014FB0000

3432014FB0000
Not available
7
BODY ASSY, WATER TEMP METER

34420-14FB0-000   3442014FB0000

3442014FB0000
Not available
7
BODY ASSY, WATER TEMP METER

34420-14FJ0-000   3442014FJ0000

3442014FJ0000
Not available
8
PLATE, PRINTED CIRCUIT

34177-14F00-000   3417714F00000

3417714F00000
Not available
8
PLATE, PRINTED CIRCUIT

34177-14FH0-000   3417714FH0000

3417714FH0000
Not available
9
LENS (GREEN)

36341-14F00-000   3634114F00000

3634114F00000
Not available
10
LENS (BLUE)

36331-14F00-000   3633114F00000

3633114F00000
Not available
11
SWITCH ASSY, CLOCK

34630-14F00-000   3463014F00000

3463014F00000
Not available
12
ATTACHING PARTS SET

34680-14F00-000   3468014F00000

3468014F00000
Not available
13
KNOB, TRIP

34124-14F00-000   3412414F00000

3412414F00000
Not available
14
KNOB, CLOCK

34661-14F00-000   3466114F00000

3466114F00000
Not available
15
BULB, 14V 3W
BULB, T6.5 (14V, 1.7W)

34171-14F00-000  

3417114F00000
Not available
16
SOCKET
SOCKET, T6.5

34173-14F00-000   3417314F00000

3417314F00000

Unit Price

17
DISCONTINUE
SCREW

03112-04163-000  

0311204163000
Not available
18
SCREW (3X10)

34183-14F00-000   3418314F00000

3418314F00000

Unit Price

19
SCREW

02112-73207-000   0211273207000

0211273207000
Not available
20
SCREW (3X24)

34383-21D30-000   3438321D30000

3438321D30000
Not available
21
LENS (RED)

36371-14F00-000   3637114F00000

3637114F00000
Not available
22
SCREW

03541-05163-000  

03541-0516B-000
 0354105163000

Unit Price

23
GUIDE, SENSOR LEAD
GUIDE, SENSOR LEAD

34938-14F00-000   3493814F00000

3493814F00000

Unit Price

24
SENSOR, SPEED

34990-14F00-000   3499014F00000

3499014F00000
Not available
25
SEAL, OIL(43X58X7)

09283-43002-000  

09283-43004-000
 0928343002000

Unit Price

25A
ROTOR, SPEEDOMETER

34983-04F00-000   3498304F00000

3498304F00000
Not available
26
CLAMP<br />CLAMP, SENSOR LEAD
CLAMP
CLAMP, SENSOR LEAD

09407-03401-000   0940703401000

0940703401000

Unit Price

27
CLAMP<br />CLAMP, SENSOR (L:145)
CLAMP
CLAMP, SENSOR (L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

28
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

29
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER (MODEL K1/K2) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
