TRANSMISSION (2)(MODEL X / Y) REFER TO FIG.21A(D-10) FOR MODEL K1/K2

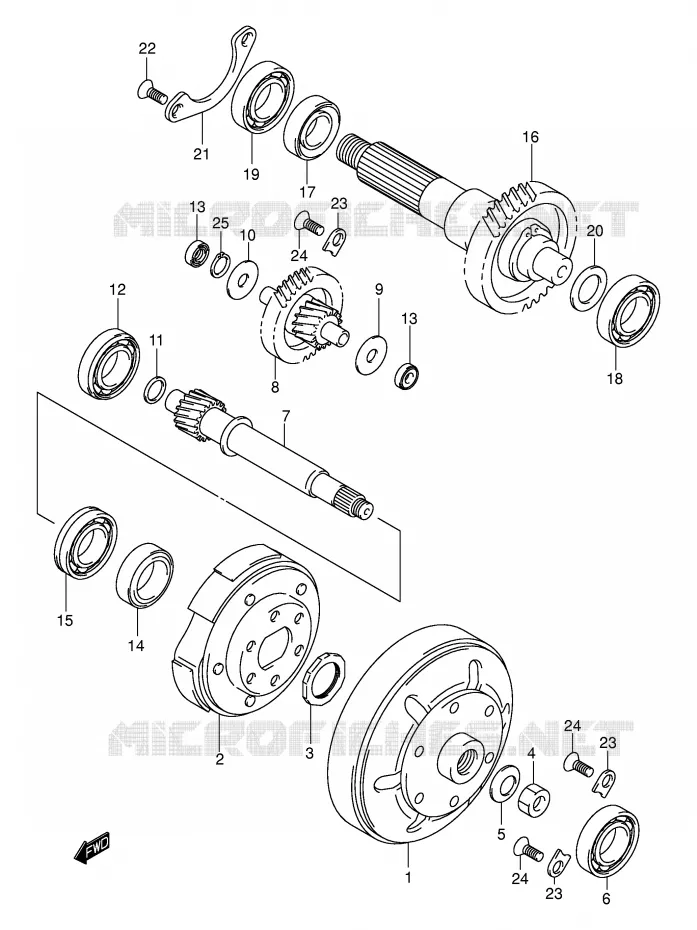

TRANSMISSION (2) FOR SUZUKI BURGMAN 400 2000

FUEL FILTER

HOUSING, CLUTCH

21220-15F00-000 2122015F00000

Not available

CLUTCH ASSY, SHOE

21501-15F01-000

21501-15F02-000

$381,97

Unit Price

NUT, SHOE CLUTCH

21518-15F00-000 2151815F00000

$12,97

Unit Price

SPROCKET LOCK NUT
NUT, CLUTCH HOUSING

09140-16002-000 0914016002000

$4,97

Unit Price

PR DVN GEAR WASHER
WASHER, CLUTCH HOUSING

09164-16002-000 0916416002000

$4,97

Unit Price

BEARING, 35X62X14
BEARING, CLUTCH HOUSING

09262-35064-000 0926235064000

$111,97

Unit Price

DISCONTINUE
SHAFT, DRIVE (NT:14)

24131-15F10-000 2413115F10000

Not available

DISCONTINUE
SHAFT, IDLE (NT:14)

24150-15F10-000 2415015F10000

Not available

SHIM, IDLE SHAFT (20X50X2)

09160-20051-000 0916020051000

Not available

WASHER(20X50X2)
SHIM, IDLE SHAFT (20X50X2)

09160-20077-000 0916020077000

$17,97

Unit Price

SHIM(20X28X1.5)
WASHER, DRIVE SHAFT RH

09181-20184-000 0918120184000

$5,97

Unit Price

BEARING(20X52X15)
BEARING, DRIVE SHAFT RH

09262-20073-000 0926220073000

$32,97

Unit Price

BEARING
BEARING, IDLE SHAFT

09263-20062-000 0926320062000

$57,97

Unit Price

SEAL, 25X37X6
SEAL, DRIVE SHAFT OIL

09283-25097-000 0928325097000

$17,97

Unit Price

BEARING
BEARING, DRIVE SHAFT LH

08113-52050-000 0811352050000

$100,97

Unit Price

SHAFT, REAR AXLE

24140-15F10-000 2414015F10000

Not available

SEAL, OIL(38X52X7)
SEAL, AXLE SHAFT OIL

09283-38019-000 0928338019000

$22,97

Unit Price

BEARING(25X62X17)
BEARING, AXLE SHAFT LH

09262-25084-000 0926225084000

$63,97

Unit Price

BEARING, AXLE SHAFT RH

08133-63067-000 0813363067000

Not available

SHIM(25X34X1.5)
WASHER, AXLE SHAFT LH

09181-25184-000 0918125184000

$6,97

Unit Price

DISCONTINUE
RETAINER, AXLE SHAFT BEARING

24751-14F00-000 2475114F00000

Not available

SCREW

02122-06163-000

02122-0616B-000

$3,97

Unit Price

RETAINER

24742-44B00-000 2474244B00000

$5,97

Unit Price

SCREW

02122-06163-000

02122-0616B-000

$3,97

Unit Price

CIRCLIP
CIRCLIP, IDLE SHAFT RH

08331-41349-000 0833141349000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (2)(MODEL K1/K2) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
