BATTERY HOLDER

FUEL TANK (MODEL X / Y) FOR SUZUKI BURGMAN 400 2002

FUEL TANK (MODEL K1 / K2)

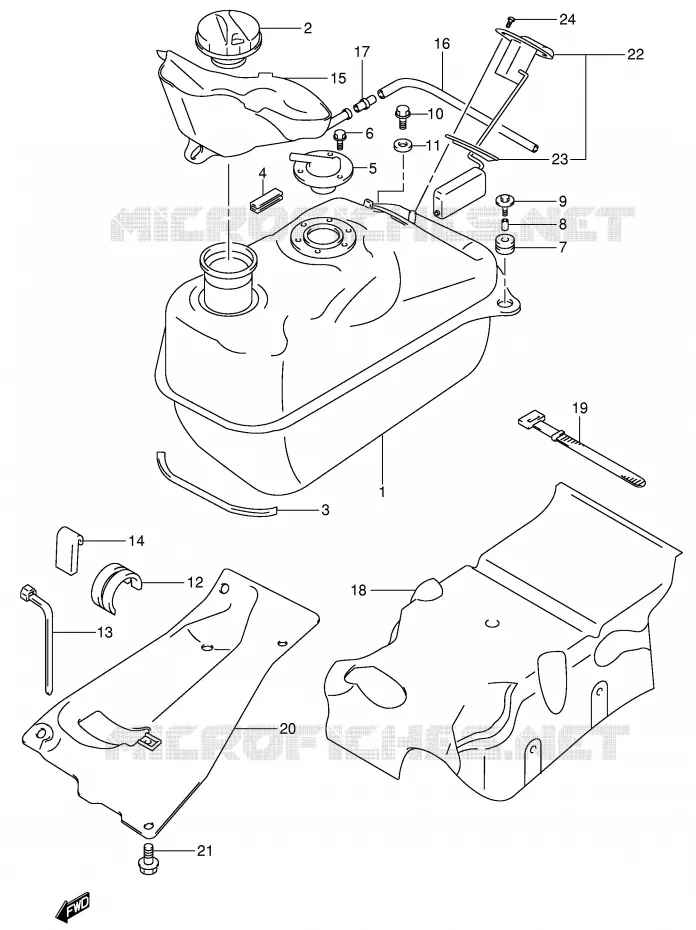

FUEL TANK (MODEL X/Y) Suzuki SCOOTER 400 BURGMAN 2002 AN400K2(E2)
1
TANK, FUEL

44110-14F00-000   4411014F00000

4411014F00000
Not available
1
TANK, FUEL

44110-14F01-000   4411014F01000

4411014F01000
Not available
2
CAP ASSY, FUEL TANK

44200-10F00-000  

44200-10F01-000
 4420010F00000

Unit Price

3
MOLDING

68241-04X50-300   6824104X50300

6824104X50300

Unit Price

4
MOLDING
MOLDING

68241-04X50-00B   6824104X5000B

6824104X5000B

Unit Price

5
VALVE, FUEL CUT

89485-65D00-000   8948565D00000

8948565D00000

Unit Price

6
BOLT

09117-05003-000  

01570-05103-000
 0911705003000

Unit Price

7
CUSHION, FUEL TANK SIDE

44512-04F00-000  

44512-04F01-000
 4451204F00000

Unit Price

8
SPACER (6.5X9X12.5)
SPACER (6.5X9X12.5)

09180-06267-000   0918006267000

0918006267000

Unit Price

9
BOLT (6X25)
BOLT (6X25)

09116-06147-000   0911606147000

0911606147000

Unit Price

10
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

11
WASHER, 6.5X24X1.6
WASHER

09160-06501-000   0916006501000

0916006501000

Unit Price

12
44541-03F01
CUSHION, FUEL TANK SIDE

44541-03F00-000  

4454103F00000
Not available
13
CLAMP<br />CLAMP (L:248)
CLAMP
CLAMP (L:248)

09407-25402-000   0940725402000

0940725402000

Unit Price

14
CUSHION, FUEL TANK LWR RH
CUSHION, FUEL TANK LOWER RH

44541-14F00-000   4454114F00000

4454114F00000

Unit Price

15
TRAY, FUEL TANK INLET

44261-14F00-000   4426114F00000

4426114F00000
Not available
16
HOSE(7X10.2X600)
HOSE(7X10.2X600)

09352-70103-600  

09352-70104-600
 0935270103600

Unit Price

17
JOINT

09367-08001-000   0936708001000

0936708001000

Unit Price

18
BODY, HEAT SHIELD

44191-14F10-000   4419114F10000

4419114F10000
Not available
19
CLAMP,WIRING HARNESS<br />CLAMP
CLAMP, WIRING HARNESS
CLAMP

09407-18402-000   0940718402000

0940718402000

Unit Price

20
COVER, FUEL TANK LOWER

44271-14F00-000   4427114F00000

4427114F00000
Not available
21
BOLT,6X12
BOLT, 6X12

63161-43E00-000  

09111-06107-000
 6316143E00000

Unit Price

22
GAUGE ASSY, FUEL LEVEL

34810-14F00-000   3481014F00000

3481014F00000
Not available
23
GASKET,FUEL LEVEL GAUGE<br />GASKET, FUEL GAUGE
GASKET, FUEL LEVEL GAUGE
GASKET, FUEL GAUGE

34825-45100-000   3482545100000

3482545100000

Unit Price

24
BOLT

09117-05003-000  

01570-05103-000
 0911705003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL X/Y) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
