TAIL LIGHT (MODEL X / Y) REFER TO FIG.28A(E-12) FOR MODEL K1/K2

TAIL LIGHT (MODEL K1 / K2) FOR SUZUKI BURGMAN 400 2002

WIRING HARNESS (MODEL X) REFER TO FIG.29A(E-14) FOR MODEL Y

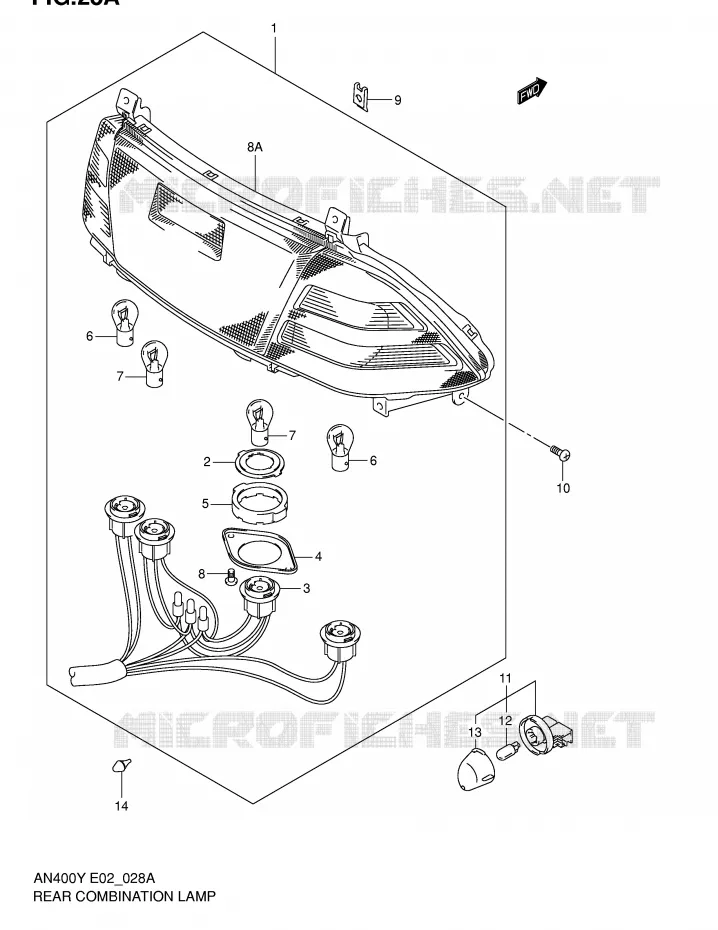

TAIL LIGHT (MODEL K1/K2) Suzuki SCOOTER 400 BURGMAN 2002 AN400K2(E2)

1

LAMP ASSY, REAR COMBINATION

35710-14F10-000 3571014F10000

Not available

2

PLATE NO.1

35716-48B21-000 3571648B21000

$30,97

Unit Price

3

SOCKET & CORD

35718-14F10-000 3571814F10000

Not available

4

PLATE NO.2

35736-48B21-000 3573648B21000

$21,97

Unit Price

5

CUSHION

35765-48B21-000 3576548B21000

$16,97

Unit Price

6

BULB(12V55W/H7/PX26D/PHILIPS)
BULB (12V, 21W)

09471-12186-000 0947112186000

$13,97

Unit Price

7

BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

8

SCREW

03211-04123-000

03211-0412A-000

$3,97

Unit Price

8A

UNIT, LAMP

35720-14F10-000 3572014F10000

Not available

9

NUT
NUT, REAR COMB

09148-05020-000 0914805020000

$3,97

Unit Price

10

SCREW

03541-05163-000

03541-0516B-000

$3,97

Unit Price

11

LAMP ASSY, LICENSE

35910-14F00-000 3591014F00000

Not available

12

09471-12216
BULB (12V, 5W)

09471-12081-000

Not available

13

LENS

35912-14F10-000 3591214F10000

Not available

14

CUSHION, LICENSE PLATE

09321-06031-000 0932106031000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (MODEL K1/K2) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
