FUEL PUMP

WATER PUMP FOR SUZUKI BURGMAN 400 2016

RADIATOR

Item numbers

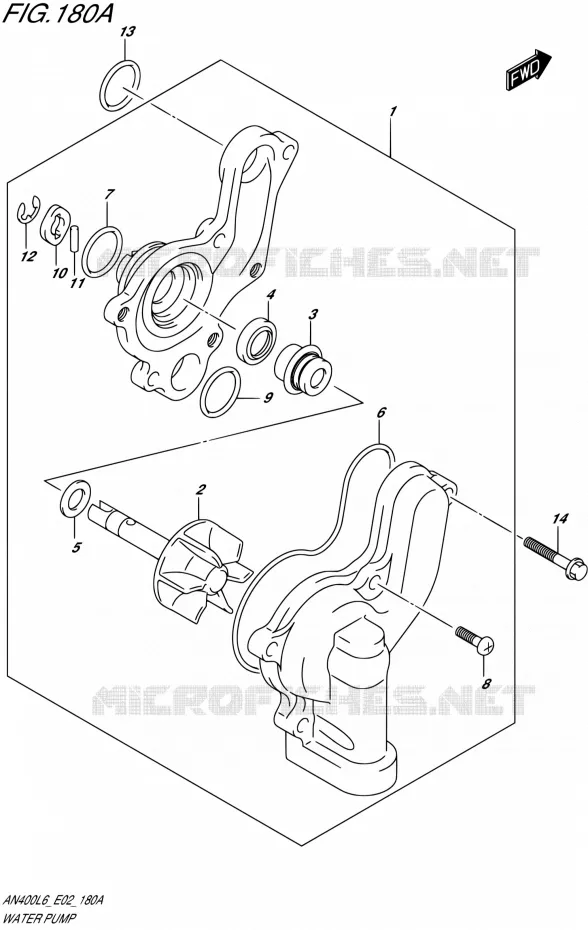

WATER PUMP Suzuki SCOOTER 400 BURGMAN 2016 AN400A L6 (E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
PUMP ASSY, WATER

17400-05H00-000  

17400-05H01-000
 1740005H00000

Unit Price

2
.IMPELLER

17491-05H00-000   1749105H00000

1749105H00000

Unit Price

3
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F10-000  

17470-02F11-000
 1747002F10000

Unit Price

4
.OIL SEAL

17461-48G00-000   1746148G00000

1746148G00000

Unit Price

5
.WASHER

17432-07G00-000   1743207G00000

1743207G00000

Unit Price

6
.O RING

17418-05H00-000   1741805H00000

1741805H00000

Unit Price

7
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

8
.SCREW
.SCREW

02112-0616A-000   021120616A000

021120616A000

Unit Price

9
OIL PLUG O RING<br />.O RING (D:2.4,ID:21.8)
OIL PLUG O RING
.O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

10
.CAP

17481-05H00-000   1748105H00000

1748105H00000

Unit Price

11
.PIN

17482-03G00-000   1748203G00000

1748203G00000

Unit Price

12
.E RING

17483-05H00-000   1748305H00000

1748305H00000

Unit Price

13
OIL PLUG O RING<br />O RING (D:2.4,ID:21.8)
OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

14
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki BURGMAN 400 ABS of BURGMAN. Let us know if you have any questions.
