RADIATOR (MODEL K5) REFER TO FIG.15A(C-11) FOR MODEL K6

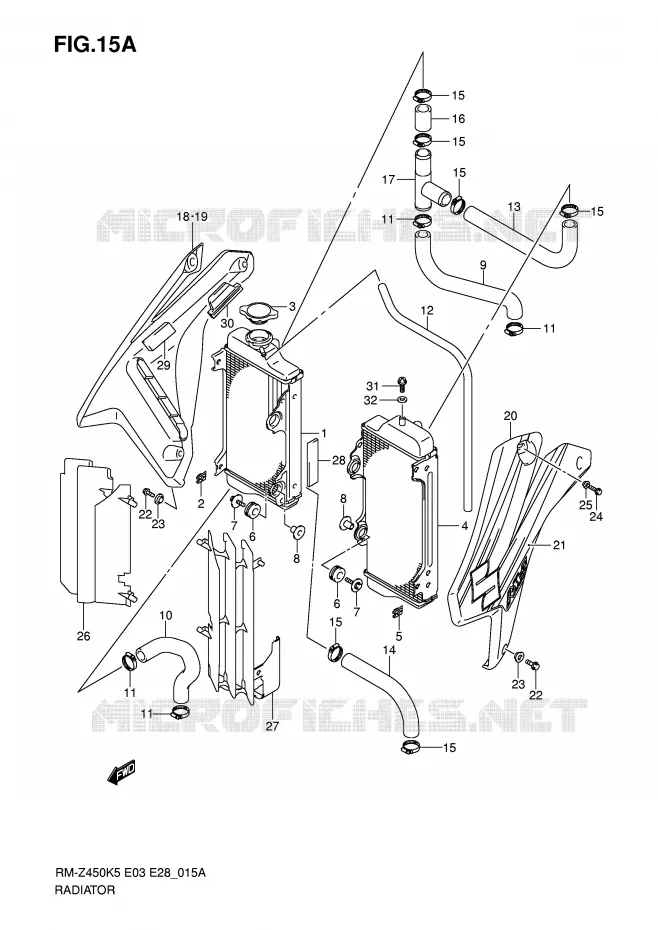

RADIATOR (MODEL K6) FOR SUZUKI RM-Z 450 2006

RADIATOR (MODEL K7)

Item numbers

DISCONTINUE
RADIATOR, RH

17710-35G20-000 1771035G20000

Not available

NUT

09148-06015-000 0914806015000

$4,97

Unit Price

CAP, RADIATOR

17730-12C20-000

17730-08J00-000

$38,97

Unit Price

DISCONTINUE
RADIATOR, LH

17720-35G20-000 1772035G20000

Not available

NUT

09148-06015-000 0914806015000

$4,97

Unit Price

CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000 1778719A00000

$5,97

Unit Price

BOLT, MUFFLER MTG
BOLT (6X25)

09116-06186-000 0911606186000

$4,97

Unit Price

SPACER

09180-06243-000 0918006243000

$8,97

Unit Price

HOSE, INLET

17851-35G20-000 1785135G20000

Not available

HOSE, RADIATOR OUTLET
HOSE, OUTLET

17852-35G11-000 1785235G11000

$24,97

Unit Price

CLAMP

09402-28511-000 0940228511000

$13,97

Unit Price

HOSE, 5X8X2000
HOSE, OVERFLOW

09351-50803-00B 093515080300B

$19,97

Unit Price

DISCONTINUE
HOSE, JOINT UPPER NO.1

17853-35G10-000 1785335G10000

Not available

DISCONTINUE
HOSE, JOINT LOWER

17854-35G10-000 1785435G10000

Not available

CLAMP

09402-28511-000 0940228511000

$13,97

Unit Price

HOSE, JOINT UPPER NO.2

17856-35G10-000 1785635G10000

Not available

JOINT, RADIATOR HOSE

17857-35G10-000 1785735G10000

$14,97

Unit Price

DISCONTINUE
COVER, RADIATOR, RH (YELLOW)

17761-35G00-YU1 1776135G00YU1

Not available

DISCONTINUE
TAPE, RADIATOR COVER, RH

68660-35G10-CET 6866035G10CET

Not available

DISCONTINUE
COVER, RADIATOR, LH (YELLOW)

17762-35G00-YU1 1776235G00YU1

Not available

DISCONTINUE
TAPE, RADIATOR COVER, LH

68670-35G10-CET 6867035G10CET

Not available

BOLT
BOLT, 6X12

09103-06233-000 0910306233000

$3,97

Unit Price

WASHER

69232-37F00-000

69232-37F01-000

$17,97

Unit Price

BOLT, 6X16

09103-06234-000 0910306234000

$4,97

Unit Price

SPACER

09180-06328-000 0918006328000

$8,97

Unit Price

LOUVER, RADIATOR, R

17831-35G10-000 1783135G10000

$39,97

Unit Price

LOUVER, RADIATOR, L

17832-35G11-000 1783235G11000

$39,97

Unit Price

DISCONTINUE
CUSHION, RADIATOR

17795-35G00-000 1779535G00000

Not available

CUSHION, RADIATOR COVER NO.2

17795-35G10-000 1779535G10000

Not available

CUSHION, RADIATOR COVER NO.1

17795-35G20-000 1779535G20000

Not available

UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000 1756850F00000

$7,97

Unit Price

GASKET(6.4X11.5X0.84)
GASKET

09168-06026-000 0916806026000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR (MODEL K6) of your Suzuki of RM-Z. Let us know if you have any questions.
