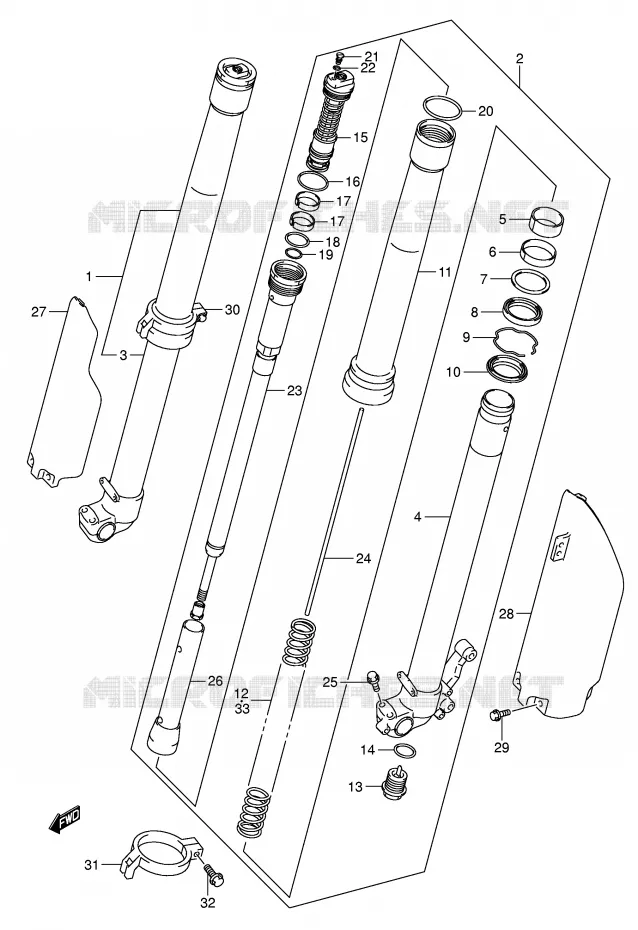

FRONT FORK (MODEL K5) FOR SUZUKI RM-Z 450 2006

FRONT FORK (MODEL K6) REFER TO FIG.34B(F- 8) FOR MODEL K7

Item numbers

DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-35G00-000 5110335G00000

Not available

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-35G00-000 5110435G00000

Not available

DISCONTINUE
TUBE, INNER RH

51110-35G00-000 5111035G00000

Not available

DISCONTINUE
TUBE, INNER LH

51120-35G00-000 5112035G00000

Not available

BUSH, SLIDE
BUSH, GUIDE

51121-36F00-000 5112136F00000

$20,97

Unit Price

BUSH, GUIDE

51167-36F00-000 5116736F00000

$25,97

Unit Price

SPACER, SEAL

51158-36F00-000 5115836F00000

$11,97

Unit Price

SEAL, OIL

51153-37F80-000 5115337F80000

$25,97

Unit Price

RING, OIL SEAL STOPPER

51156-27C40-000 5115627C40000

$7,97

Unit Price

SEAL, DUST

51173-37F80-000 5117337F80000

$29,97

Unit Price

DISCONTINUE
TUBE, OUTER

51130-37F70-000 5113037F70000

Not available

DISCONTINUE
SPRING, FRONT (K=0.47)

51171-35G00-000 5117135G00000

Not available

BOLT, CTR
BOLT, CENTER

51170-37F80-000 5117037F80000

$243,97

Unit Price

O RING

51177-36E20-000 5117736E20000

$6,97

Unit Price

DISCONTINUE
BOLT, FORK

51351-35G00-000 5135135G00000

Not available

O RING

51117-37F80-000 5111737F80000

$9,97

Unit Price

BUSH, FORK BOLT SLIDE

51123-28E30-000 5112328E30000

$19,97

Unit Price

O RING

51174-36E40-000 5117436E40000

$6,97

Unit Price

O RING

51175-37F80-000 5117537F80000

$9,97

Unit Price

O RING

51117-36E60-000 5111736E60000

$6,97

Unit Price

BOLT, PLUG

51357-36F20-000 5135736F20000

$18,97

Unit Price

O RING, PLUG
O RING

51358-28E30-000 5135828E30000

$5,97

Unit Price

DISCONTINUE
ROD, DAMPER

51190-35G00-000 5119035G00000

Not available

ROD, PUSH

51191-36F40-000 5119136F40000

$24,97

Unit Price

BOLT

51328-37F80-000 5132837F80000

$11,97

Unit Price

COLLAR, SPRING

51198-37F80-000 5119837F80000

$87,97

Unit Price

PROTECTOR, FR FORK, R
PROTECTOR, RH

51501-37F61-000 5150137F61000

$157,97

Unit Price

PROTECTOR, FR FORK, L
PROTECTOR, LH

51511-37F61-000 5151137F61000

$157,97

Unit Price

BOLT, EXHAUST VALVE S
BOLT

09103-06256-000 0910306256000

$3,97

Unit Price

GUIDE, PROTECTOR, R
GUIDE, PROTECTOR RH

51220-36E61-000 5122036E61000

$61,97

Unit Price

GUIDE, PROTECTOR, L
GUIDE, PROTECTOR LH

51210-36E61-000 5121036E61000

$61,97

Unit Price

BOLT, 6X25
BOLT

01547-06257-000 0154706257000

$3,97

Unit Price

DISCONTINUE
SPRING, FRONT (SOFT K=0.45)

51171-35G10-000 5117135G10000

Not available

DISCONTINUE
SPRING, FRONT (HARD K=0.49)

51171-35G20-000 5117135G20000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL K5) of your Suzuki of RM-Z. Let us know if you have any questions.
