FRAME (RM-Z450L1)

FOOTREST (RM-Z450K8 / K9 / L0) FOR SUZUKI RM-Z 450 2012

FOOTREST (RM-Z450L1)

Item numbers

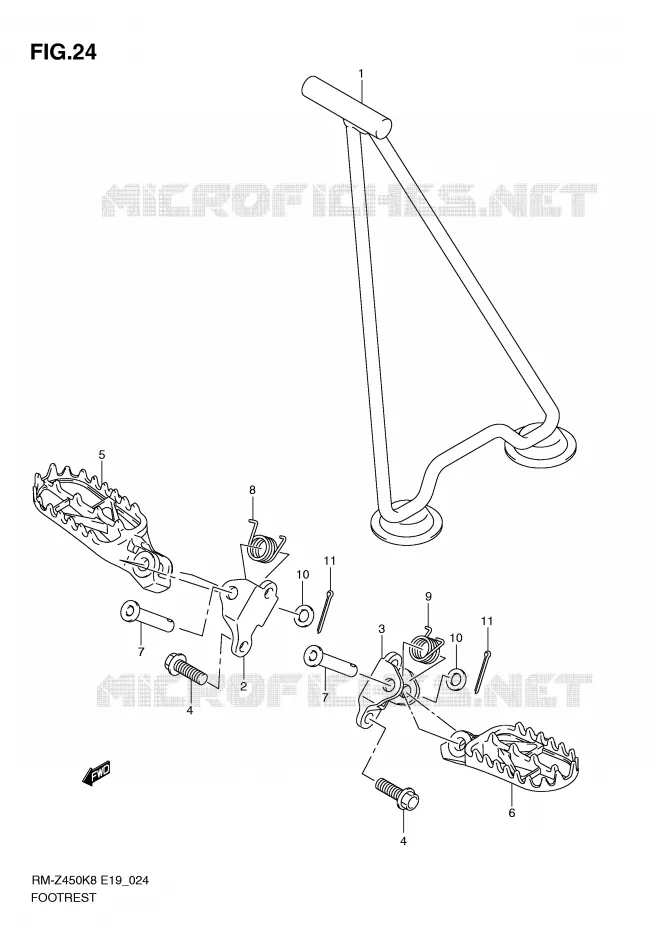

FOOTREST (RM-Z450K8/K9/L0) Suzuki MOTO 450 RM-Z 2012 RM-Z450L1(E19)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
1
STAND

42310-35G00-000   4231035G00000

4231035G00000

Unit Price

1
DISCONTINUE
STAND

42310-28H00-000   4231028H00000

4231028H00000
Not available
2
BRACKET, FOOTREST RH

41855-28H10-000   4185528H10000

4185528H10000

Unit Price

2
DISCONTINUE
BRACKET, FOOTREST RH

41855-28H00-000   4185528H00000

4185528H00000
Not available
3
BRACKET, FOOTREST, L
BRACKET, FOOTREST LH

41865-28H00-000   4186528H00000

4186528H00000

Unit Price

3
BRACKET, FOOTREST LH

41865-28H10-000   4186528H10000

4186528H10000

Unit Price

4
BOLT (10X25)

09103-10415-000   0910310415000

0910310415000

Unit Price

5
FOOTREST, R
FOOTREST, RH

43551-28H01-000   4355128H01000

4355128H01000

Unit Price

5
FOOTREST, R
FOOTREST, RH

43551-28H10-000   4355128H10000

4355128H10000

Unit Price

6
FOOTREST, L
FOOTREST, LH

43561-28H01-000   4356128H01000

4356128H01000

Unit Price

6
FOOTREST, LH

43561-28H10-000   4356128H10000

4356128H10000

Unit Price

7
PIN

09200-10019-000   0920010019000

0920010019000

Unit Price

8
SPRING
SPRING, RH

09448-18035-000   0944818035000

0944818035000

Unit Price

8
SPRING
SPRING, RH

09448-21012-000   0944821012000

0944821012000

Unit Price

9
SPRING
SPRING, LH

09448-18036-000   0944818036000

0944818036000

Unit Price

9
SPRING
SPRING, LH

09448-21013-000   0944821013000

0944821013000

Unit Price

10
WASHER (10.5X18X1)

09160-10121-000   0916010121000

0916010121000

Unit Price

11
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2520A-000   041112520A000

041112520A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST (RM-Z450K8/K9/L0) of your Suzuki of RM-Z. Let us know if you have any questions.
