Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI RM-Z 450 2015

CRANKSHAFT

Item numbers

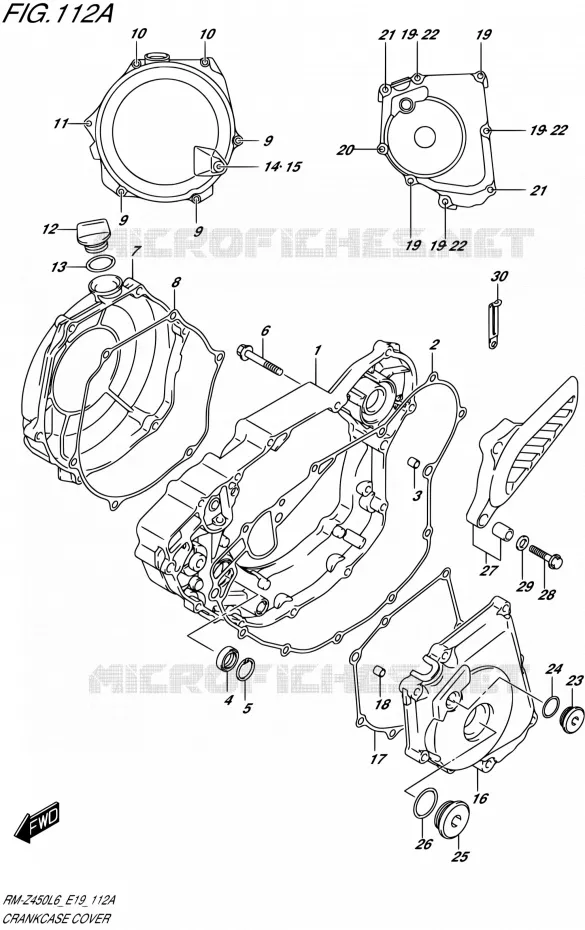

CASING Suzuki MOTO 450 RM-Z 2015 RM-Z450 L6 (E19)
1
2
3
4
5
6
7
8
9
9
9
10
10
11
12
13
14
15
16
17
18
19
19
19
19
19
20
21
21
22
22
22
23
24
25
26
27
28
29
30
1
COVER, CLUTCH

11340-28H20-000   1134028H20000

1134028H20000

Unit Price

2
GASKET, CLUTCH COVER

11482-28H00-000   1148228H00000

1148228H00000

Unit Price

3
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

4
SEAL, OIL GALLER
OIL SEAL (12X22X6)

09282-12012-000   0928212012000

0928212012000

Unit Price

5
CIRCLIP
CIRCLIP

08331-41249-000   0833141249000

0833141249000

Unit Price

6
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

7
COVER, CLUTCH OUTER

11371-02J00-000   1137102J00000

1137102J00000

Unit Price

8
GASKET, CLUTCH COVER OUTER

11484-28H00-000   1148428H00000

1148428H00000

Unit Price

9
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

10
BOLT

01547-0665A-000   015470665A000

015470665A000

Unit Price

11
BOLT

01547-0670A-000   015470670A000

015470670A000

Unit Price

12
PLUG
PLUG

09259-20008-XC0   0925920008XC0

0925920008XC0

Unit Price

13
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

14
SCREW
SCREW (6X10)

09139-06055-000   0913906055000

0913906055000

Unit Price

15
TACH GEAR WASHER<br />GASKET (6.2X11X1.2)
TACH GEAR WASHER
GASKET (6.2X11X1.2)

09168-06004-000   0916806004000

0916806004000

Unit Price

16
COVER, MAGNETO

11351-28H02-000   1135128H02000

1135128H02000

Unit Price

17
GASKET, MAGNETO COVER

11483-28H00-000   1148328H00000

1148328H00000

Unit Price

18
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

19
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

20
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

21
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

22
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
23
PLUG
PLUG (12X9)

09248-12007-000   0924812007000

0924812007000

Unit Price

24
O RING (D:1.9, ID:9.8)

09280-10016-000   0928010016000

0928010016000

Unit Price

25
PLUG
PLUG (26X9)

09259-26011-000   0925926011000

0925926011000

Unit Price

26
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

27
COVER, ENGINE SPROCKET

11360-35G00-000   1136035G00000

1136035G00000

Unit Price

28
BOLT (6X30)

09103-06297-000   0910306297000

0910306297000

Unit Price

29
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

30
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 450 RM-Z 2015

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 450 RM-Z 2015

Select your Suzuki 2015 model

450 RM-Z 2015 RM-Z450 L6 (E19)

Suzuki RM-Z

Displacement: 450 cc
Year: 2015
Model code RM-Z450 L6 (E19)
