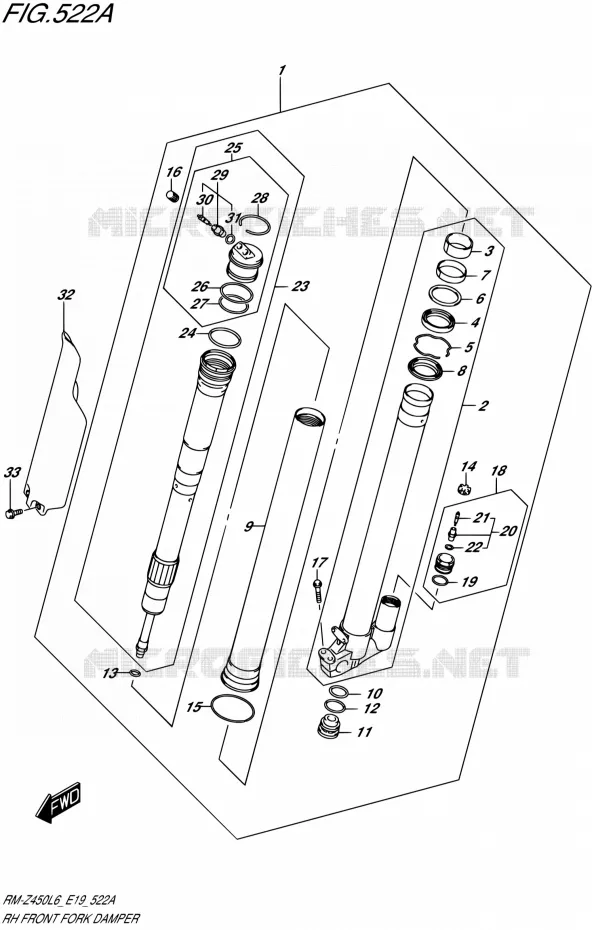

RIGHT FRONT FORK LEG FOR SUZUKI RM-Z 450 2015

FRONT LEFT FORK LEG

Item numbers

DAMPER ASSY, FRONT FORK RH

51103-28H40-000 5110328H40000

Not available

TUBE, INNER, R
.TUBE, INNER RH

51110-28H40-000 5111028H40000

$827,97

Unit Price

..BUSH, SLIDE

51127-28H40-000 5112728H40000

$36,97

Unit Price

..SEAL, OIL

51153-36E00-000 5115336E00000

$36,97

Unit Price

RING, STOPPER
..RING, OIL SEAL STOPPER

51156-36E00-000 5115636E00000

$10,97

Unit Price

..SPACER, SEAL

51158-36E00-000 5115836E00000

$11,97

Unit Price

..BUSH, GUIDE

51167-28H40-000 5116728H40000

$36,97

Unit Price

..SEAL, DUST

51173-28H40-000 5117328H40000

$57,97

Unit Price

.TUBE, OUTER

51130-28H40-000 5113028H40000

Not available

.O RING

51175-37F80-000 5117537F80000

$9,97

Unit Price

.BOLT

51177-28H40-000 5117728H40000

$171,97

Unit Price

.O RING

51178-28H40-000 5117828H40000

$12,97

Unit Price

.O RING

51179-28H40-000 5117928H40000

$7,97

Unit Price

.CAP

51199-28H40-000 5119928H40000

$12,97

Unit Price

.RING, STOPPER

51211-28H40-000 5121128H40000

$17,97

Unit Price

.CAP

51294-20400-000 5129420400000

$9,97

Unit Price

.BOLT

51328-37F80-000 5132837F80000

$11,97

Unit Price

.BOLT

51357-28H40-000 5135728H40000

$94,97

Unit Price

..O RING

51176-28H40-000 5117628H40000

$7,97

Unit Price

..VALVE ASSY, AIR

51290-28H40-000 5129028H40000

$29,97

Unit Price

...CORE, VALVE

51291-28H40-000 5129128H40000

$23,97

Unit Price

...O RING

51292-28H40-000 5129228H40000

$7,97

Unit Price

.ROD, JOINT

51180-28H40-000 5118028H40000

$1 639,97

Unit Price

.O RING

51118-28H30-000 5111828H30000

$6,97

Unit Price

..CAP

51360-28H40-000 5136028H40000

$444,97

Unit Price

...O RING

51133-28H40-000 5113328H40000

$7,97

Unit Price

...O RING

51134-28H40-000 5113428H40000

$8,97

Unit Price

...RING, STOPPER

51132-28H40-000 5113228H40000

$9,97

Unit Price

...VALVE ASSY, AIR

51290-28H40-000 5129028H40000

$29,97

Unit Price

....CORE, VALVE

51291-28H40-000 5129128H40000

$23,97

Unit Price

....O RING

51292-28H40-000 5129228H40000

$7,97

Unit Price

PROTECTOR, FRONT FORK RH
PROTECTOR, RH

51501-28H60-000 5150128H60000

$63,97

Unit Price

BOLT (6X10)

09111-06098-000 0911106098000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RIGHT FRONT FORK LEG of your Suzuki of RM-Z. Let us know if you have any questions.
