LEVERS - HANDGRIPS

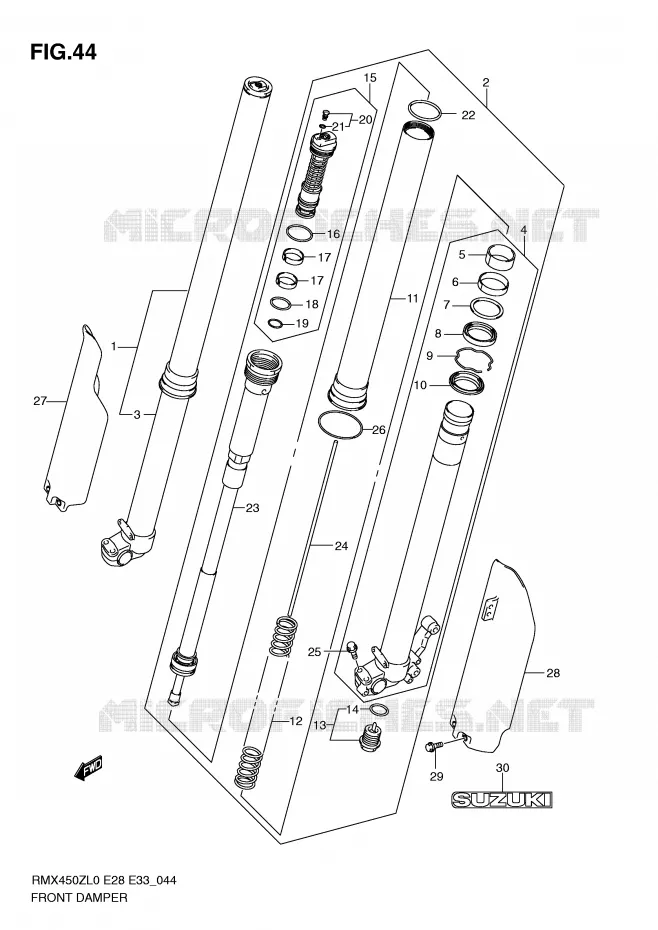

FRONT FORK FOR SUZUKI RMX-Z 450 2010

STEERING COLUMN

Item numbers

DAMPER ASSY, FRONT FORK RH

51103-02J00-000 5110302J00000

Not available

DAMPER ASSY, FRONT FORK LH

51104-02J00-000 5110402J00000

Not available

TUBE, INNER, R
TUBE, INNER RH

51110-28H10-000 5111028H10000

$500,97

Unit Price

TUBE, INNER, L
TUBE, INNER LH

51120-28H10-000 5112028H10000

$500,97

Unit Price

BUSH
BUSH, GUIDE

51121-28H10-000 5112128H10000

$24,97

Unit Price

BUSH, GUIDE

51167-28H10-000 5116728H10000

$39,97

Unit Price

SPACER, SEAL

51158-36F00-000 5115836F00000

$11,97

Unit Price

SEAL, OIL

51153-37F80-000 5115337F80000

$25,97

Unit Price

RING, OIL SEAL STOPPER

51156-27C40-000 5115627C40000

$7,97

Unit Price

SEAL, DUST

51173-37F80-000 5117337F80000

$29,97

Unit Price

DISCONTINUE

51130-28H00-000

Not available

SPRING, FR(K=0.47)
SPRING, FRONT (K=0.47)

51171-28H00-000 5117128H00000

$172,97

Unit Price

SPRING, FR(K=0.45)
SPRING, FRONT (K=0.45)

51171-28H10-000 5117128H10000

$172,97

Unit Price

SPRING, FR(K=0.49)
SPRING, FRONT (K=0.49)

51171-28H20-000 5117128H20000

$172,97

Unit Price

BOLT, CTR
BOLT, CENTER

51170-37FC0-000 5117037FC0000

$218,97

Unit Price

O RING

51177-36E20-000 5117736E20000

$6,97

Unit Price

BOLT, FORK

51351-02J00-000 5135102J00000

$415,97

Unit Price

O RING

51117-37F80-000 5111737F80000

$9,97

Unit Price

BUSH
BUSH, FORK BOLT SLIDE

51123-28H10-000 5112328H10000

$18,97

Unit Price

O RING

51174-36E40-000 5117436E40000

$6,97

Unit Price

O RING

51175-37F80-000 5117537F80000

$9,97

Unit Price

BOLT, PLUG

51357-36F20-000 5135736F20000

$18,97

Unit Price

O RING, PLUG
O RING

51358-28E30-000 5135828E30000

$5,97

Unit Price

O RING

51118-37F80-000 5111837F80000

$9,97

Unit Price

ROD, DAMPER

51190-02J00-000 5119002J00000

$1 186,97

Unit Price

ROD, PUSH

51191-10H10-000 5119110H10000

$28,97

Unit Price

BOLT

51328-37F80-000 5132837F80000

$11,97

Unit Price

STOPPER, RING
RING STOPPER

51211-37FC0-000 5121137FC0000

$16,97

Unit Price

DISCONTINUE
PROTECTOR, RH

51501-28H10-000

Not available

PROTECTOR, FR FORK, L
PROTECTOR, LH

51511-28H00-000 5151128H00000

$141,97

Unit Price

BOLT (6X10)

09111-06098-000 0911106098000

$4,97

Unit Price

68661-29F01-DPZ
EMBLEM, SUZUKI

68661-29F00-DPZ 6866129F00DPZ

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of RMX-Z. Let us know if you have any questions.
