CRANKCASE COVER

CRANKSHAFT FOR SUZUKI QUADRACER 450 2009

STARTER MOTOR CLUTCH

Item numbers

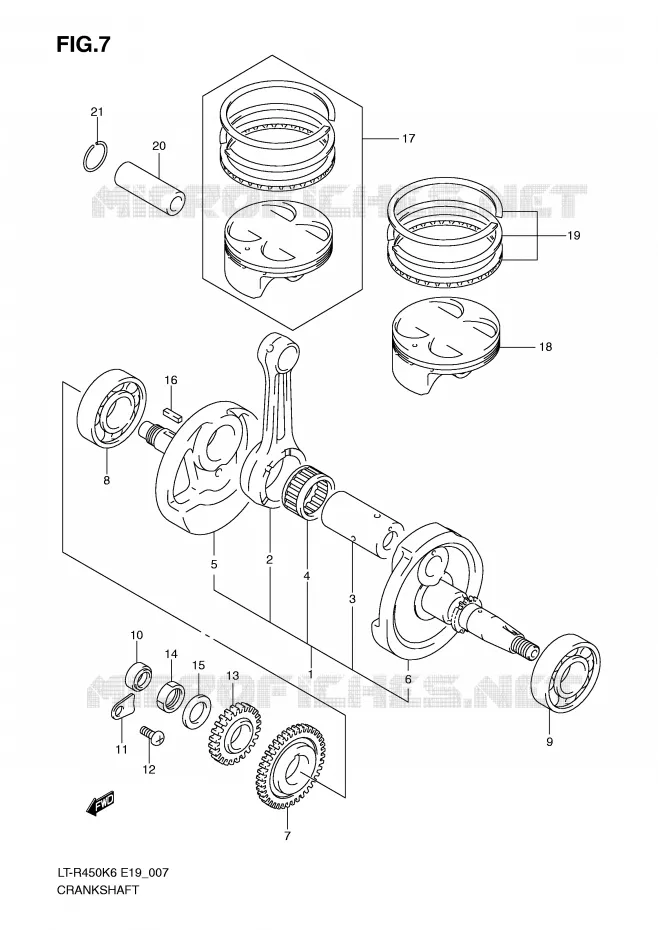

CRANKSHAFT Suzuki QUAD 450 QUADRACER 2009 LT-R450K9(E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
CRANKSHAFT ASSY

12200-45G10-000  

12200-45G11-000
 1220045G10000

Unit Price

2
CONNECTING ROD ASSY
ROD, CONNECTING

12160-45G10-000   1216045G10000

1216045G10000

Unit Price

3
PIN, CRANK
PIN

12210-45G00-000   1221045G00000

1221045G00000

Unit Price

4
BEARING, 34X42X2

09263-34009-000  

09263-34013-000
 0926334009000

Unit Price

5
DISCONTINUE
CRANKSHAFT, RH

12221-45G10-000   1222145G10000

1222145G10000
Not available
6
CRANKSHAFT, L
CRANKSHAFT, LH

12261-45G10-000   1226145G10000

1226145G10000

Unit Price

7
GEAR, CRANK BALANCER DRIVE
GEAR, BALANCER DRIVE

12661-45G01-000   1266145G01000

1266145G01000

Unit Price

8
BEARING, CRANKSH
BEARING, RH

09262-30116-000   0926230116000

0926230116000

Unit Price

9
BEARING, CRANKSH
BEARING, LH

09262-32015-000   0926232015000

0926232015000

Unit Price

10
SEAL, CRANKSHAFT OIL,
OIL SEAL, RH (14X24X6)

09282-14006-000   0928214006000

0928214006000

Unit Price

11
RETAINER, BEARING
RETAINER, OIL SEAL RH

24742-18A00-000   2474218A00000

2474218A00000

Unit Price

12
SCREW
SCREW

02112-0612B-000   021120612B000

021120612B000

Unit Price

13
GEAR, PRIMARY DRIVE

21111-45G00-000   2111145G00000

2111145G00000

Unit Price

14
NUT

09140-18012-000   0914018012000

0914018012000

Unit Price

15
WASHER

09164-18008-000   0916418008000

0916418008000

Unit Price

16
KEY, PRIM DR GR
KEY, GEAR

09421-05009-000   0942105009000

0942105009000

Unit Price

17
PISTON SET

12100-45840-000   1210045840000

1210045840000

Unit Price

18
PISTON

12111-45G10-0F0   1211145G100F0

1211145G100F0

Unit Price

19
RING SET, PISTON

12140-45G10-000   1214045G10000

1214045G10000

Unit Price

20
PIN, PISTON

12151-45G00-000   1215145G00000

1215145G00000

Unit Price

21
CIRCLIP

09381-19005-000   0938119005000

0938119005000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of QUADRACER. Let us know if you have any questions.
