GEAR SHIFTING ASSY (MODEL K6 / K7) REFER TO FIG.23A(D-10) FOR MODEL K8/K9/L0

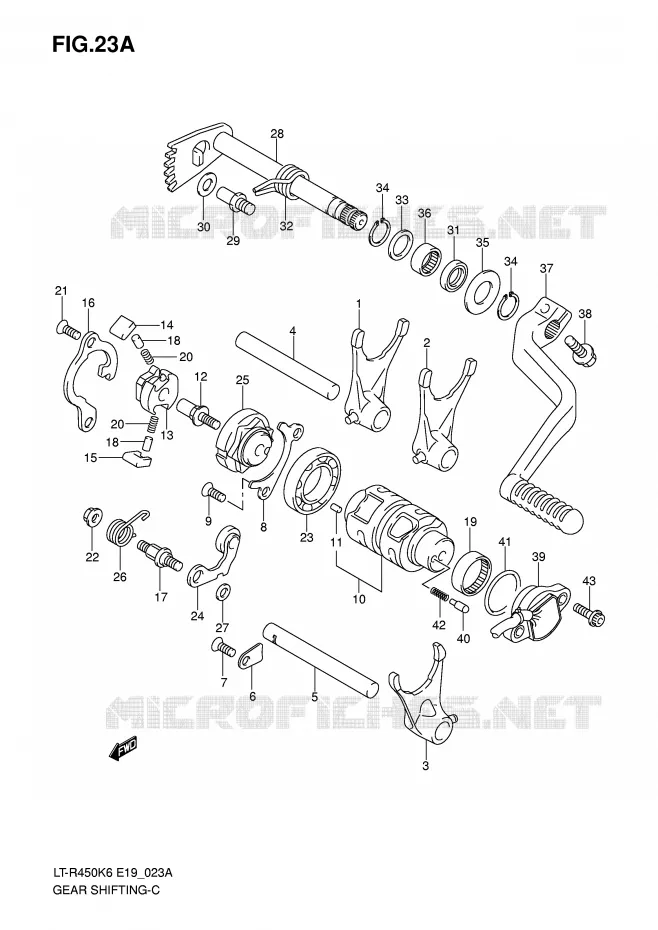

GEAR SHIFTING ASSY (MODEL K8 / K9 / L0) FOR SUZUKI QUADRACER 450 2009

BRAKE PEDAL (MODEL K6 / K7 / K8) REFER TO FIG.34A(F- 7) FOR MODEL K9/L0

FORK, GEAR SHIFT
FORK, GEAR SHIFT NO.1

25211-45G10-000 2521145G10000

$122,97

Unit Price

FORK, GEAR SHIFT
FORK, GEAR SHIFT NO.2

25211-45G10-000 2521145G10000

$122,97

Unit Price

FORK, GEAR SHIFT NO.3

25231-45G10-000 2523145G10000

$122,97

Unit Price

SHAFT, GEAR SHIFT FORK NO.1
SHAFT, GEAR FORK NO.1

25411-45G00-000 2541145G00000

$34,97

Unit Price

SHAFT, GEAR SHIFT FORK NO.2
SHAFT, GEAR FORK NO.2

25412-45G00-000 2541245G00000

$42,97

Unit Price

RETAINER
RETAINER, SHIFT FORK

24741-20A00-000 2474120A00000

$4,97

Unit Price

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

RETAINER, SHIFT CAM BEARING
REATAINER, SHIFT CAM

24741-45G00-000 2474145G00000

$13,97

Unit Price

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

CAM, GEAR SHIFT

25310-45G10-000 2531045G10000

$273,97

Unit Price

PIN
PIN, SHIFT CAM

04221-04089-000 0422104089000

$1,97

Unit Price

PIN, GEAR SHIFT CAM SHIFTER
PIN, SHIFT

25313-45G00-000 2531345G00000

$17,97

Unit Price

GEAR, GEAR SHIFT CAM DRIVEN
GEAR, GEAR SHIFT CAM

25322-45G00-000 2532245G00000

$131,97

Unit Price

PAWL, GEAR SHIFT NO.1

25323-34201-000 2532334201000

$11,97

Unit Price

PAWL, GEAR SHIFT NO.2

25324-34201-000 2532434201000

$11,97

Unit Price

LIFTER, GEAR SHIFT PAWL

25331-45G00-000 2533145G00000

$26,97

Unit Price

SUPPORT, CAM STOPPER ARM
SUPPORT, CAM STOPPER

25356-12C00-000 2535612C00000

$18,97

Unit Price

PIN
PIN, SHIFT PAWL

09209-05023-000 0920905023000

$3,97

Unit Price

R BEARING 25X32X12
BEARING, SHIFT CAM LH

09263-25018-000 0926325018000

$29,97

Unit Price

K S PAWL SPRING
SPRING, SHIFT PAWL RETURN

09440-04003-000 0944004003000

$2,97

Unit Price

SCREW
SCREW, SHIFT PAWL LIFTER

09120-06014-000 0912006014000

$4,97

Unit Price

NUT
NUT, SHIFT PAWL LIFTER

08316-1006B-000 083161006B000

$3,97

Unit Price

BEARING, RH
BEARING, SHIFT CAM RH

08113-69050-000 0811369050000

$54,97

Unit Price

STOPPER, GEAR SHIFT CAM
STOPPER, SHIFT CAM

25350-45G10-000 2535045G10000

$25,97

Unit Price

PLATE, SHIFT CAM STOPPER

25381-45G00-000 2538145G00000

$162,97

Unit Price

SPRING, GEAR SHIFT CAM STOPPER
SPRING, SHIFT CAM

25355-38F00-000 2535538F00000

$5,97

Unit Price

WASHER, THRUST
WASHER, SHIFT CAM

08211-06121-000 0821106121000

$3,97

Unit Price

SHAFT, GEAR SHIFT

25510-45G10-000

25510-45G11-000

$176,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-37F10-000 2567137F10000

$9,97

Unit Price

WASHER, THRUST
WASHER, GEAR SHAFT

09181-08167-000 0918108167000

$3,97

Unit Price

SEAL, OIL(14X22X6)
SEAL, SHIFT SHAFT OIL

09283-14006-000 0928314006000

$7,97

Unit Price

SPRING
SPRING, SHIFT SHAFT RETURN

09444-20010-000 0944420010000

$19,97

Unit Price

WASHER
WASHER, GEAR SHAFT

09181-14139-000 0918114139000

$4,97

Unit Price

CIRCLIP
CIRCLIP, GEAR SHAFT

08331-3114A-000 083313114A000

$3,97

Unit Price

WASHER, 14X29X1.5
WASHER, GEAR SHIFT LH

09160-14046-XC0 0916014046XC0

$6,97

Unit Price

BEARING, RR CUSHION
BEARING, GEAR SHAFT (14X20X12)

09263-14027-000 0926314027000

$19,97

Unit Price

LEVER, GEAR SHIFT

25611-45G00-000 2561145G00000

$137,97

Unit Price

BOLT
BOLT, GEAR SHIFT

01550-0620A-000 015500620A000

$2,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37730-45G00-000 3773045G00000

$185,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37730-45G10-000 3773045G10000

$152,97

Unit Price

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

O RING
O RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

BOLT

07120-0516A-000

07120-0516B-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY (MODEL K8/K9/L0) of your Suzuki of QUADRACER. Let us know if you have any questions.
