CRANKSHAFT

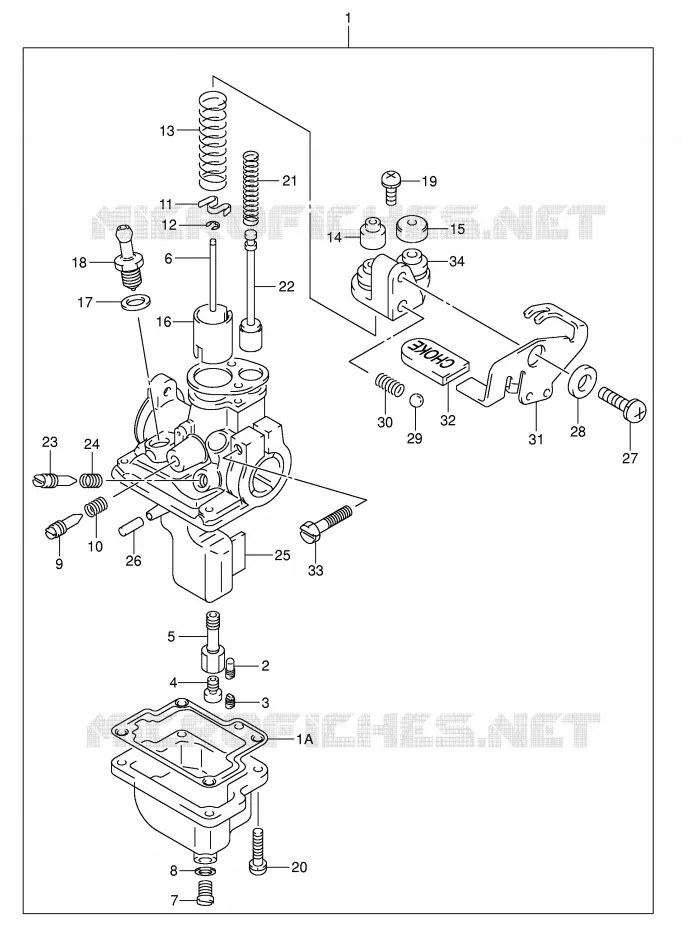

CARBURETOR FOR SUZUKI JR 50 2002

AIR FILTER

Item numbers

CARBURETOR ASSY

13200-04450-000 1320004450000

$192,97

Unit Price

GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13251-04110-000 1325104110000

$12,97

Unit Price

JET, PILOT (15)
JET, PILOT NO.1 (15)

09492-15015-000 0949215015000

$31,97

Unit Price

JET, PILOT (2) #15
JET, PILOT NO.2

09492-15009-000 0949215009000

$19,97

Unit Price

JET, MAIN (56.3)

09491-56002-000 0949156002000

$19,97

Unit Price

JET, NEEDLE (E-6)

09494-00933-000 0949400933000

$42,97

Unit Price

DISCONTINUE
NEEDLE, JET (3D23-3)

13383-13670-000 1338313670000

Not available

PLUG
PLUG, DRAIN

13247-05010-000 1324705010000

$11,97

Unit Price

GASKET, DRAIN PLUG

13249-05010-000 1324905010000

$3,97

Unit Price

SCREW, THROTTLE STOP

13267-01010-000 1326701010000

$13,97

Unit Price

SPRING
SPRING, STOP SCREW

13268-01010-000 1326801010000

$7,97

Unit Price

SEAT, THROTTLE VALVE SPRING

13581-04010-000 1358104010000

$9,97

Unit Price

CLIP, NEEDLE

13394-40D00-000 1339440D00000

$6,97

Unit Price

SPRING, THROTTLE VALVE

13573-01010-000 1357301010000

$10,97

Unit Price

CAP

13681-04010-000

13681-04011-000

$6,97

Unit Price

RUBBER, THROTTLE VALVE CAP
CAP, STARTER

13682-98010-000 1368298010000

$6,97

Unit Price

DISCONTINUE
VALVE, THROTTLE (CA:3.0)

13551-04110-000 1355104110000

Not available

GASKET, THRO VALVE INSPECTION
GASKET, VALVE SEAT

13663-31010-000 1366331010000

$6,97

Unit Price

VALVE ASSY, NEEDLE

13370-04450-000 1337004450000

$56,97

Unit Price

SCREW

02112-34103-000

02112-3410A-000

$3,97

Unit Price

SCREW

02112-34123-000

02112-3412B-000

$3,97

Unit Price

SPRING
SPRING, STARTER VALVE

13417-43010-000 1341743010000

$6,97

Unit Price

DISCONTINUE
VALVE, STARTER

13411-04410-000 1341104410000

Not available

SCREW, AIR
SCREW, PILOT AIR

13269-04010-000 1326904010000

$18,97

Unit Price

SPRING

13268-01010-000 1326801010000

$7,97

Unit Price

FLOAT

13252-04011-000 1325204011000

$39,97

Unit Price

PIN, FLOAT

13254-04010-000 1325404010000

$7,97

Unit Price

SCREW

13601-06128-000 1360106128000

$6,97

Unit Price

RING, CARBURETOR STARTER
RING

13424-30650-000 1342430650000

$12,97

Unit Price

BALL, STARTER SHAFT
BALL

13435-33110-000 1343533110000

$4,97

Unit Price

SPRING, STARTER SHAFT
SPRING

13434-30650-000 1343430650000

$7,97

Unit Price

LEVER, STARTER

13413-04450-000 1341304450000

$26,97

Unit Price

CAP, LEVER

13416-28700-000 1341628700000

$11,97

Unit Price

DISCONTINUE
BOLT

13323-04010-000 1332304010000

Not available

DISCONTINUE
TOP ASSY

13261-04410-000 1326104410000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of JR. Let us know if you have any questions.
