SWINGARM

REAR WHEEL FOR SUZUKI JR 50 2002

OPTIONS

Item numbers

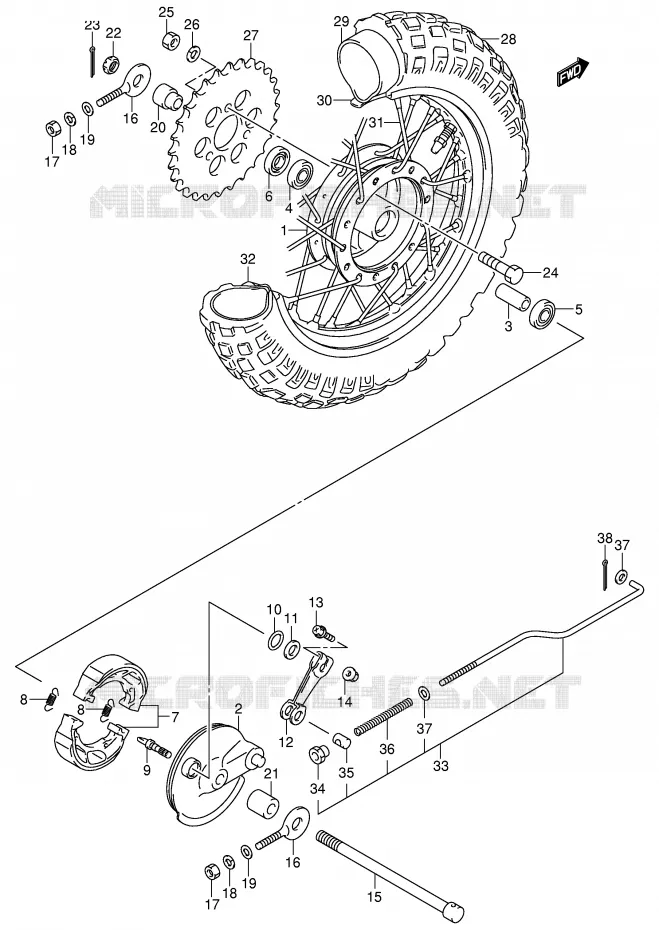

REAR WHEEL Suzuki MOTO 50 JR 2002 JR50K2(P3/P28)
1
2
3
4
5
6
7
8
8
9
10
10
11
12
13
14
15
16
16
17
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
1
HUB, RR WHEEL
HUB, REAR WHEEL

64110-04400-000   6411004400000

6411004400000

Unit Price

2
DISCONTINUE
PANEL, REAR BRAKE ANCHOR

64210-04400-000   6421004400000

6421004400000
Not available
3
SPACER (10.2X16X55)

09180-10149-000   0918010149000

0918010149000

Unit Price

4
BEARING
BEARING, LH

09262-10015-000   0926210015000

0926210015000

Unit Price

5
BEARING, RR WHEEL
BEARING, RH

08143-60007-000   0814360007000

0814360007000

Unit Price

6
WHEEL HUB DUSTSEAL
OIL SEAL (15X27X6)

09284-15004-000   0928415004000

0928415004000

Unit Price

7
SHOE & SPRING SET
SHOE SET, BRAKE

64400-04811-000   6440004811000

6440004811000

Unit Price

8
SPRING

09443-07025-000   0944307025000

0944307025000
Not available
9
CAM, BRAKE

54441-04001-000   5444104001000

5444104001000

Unit Price

10
O RING D:2.4 ID:9.6

09280-10006-000  

09280-10013-000
 0928010006000

Unit Price

11
WASHER (10.5X18X1)

09160-10121-000   0916010121000

0916010121000

Unit Price

12
LEVER, RR BRAKE CAM
LEVER, BRAKE CAM

64451-04000-000   6445104000000

6445104000000

Unit Price

13
SCREW

02162-05303-000   0216205303000

0216205303000
Not available
14
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

15
AXLE, RR
AXLE, REAR

54711-04410-000   5471104410000

5471104410000

Unit Price

16
ADJUSTER, CHAIN

61411-04000-000   6141104000000

6141104000000

Unit Price

17
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
18
08321-0106A
LOCK WASHER

08321-01063-000  

0832101063000
Not available
19
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

20
SPACER, RR AXLE, L
SPACER, LH (L:22)

64751-04410-000   6475104410000

6475104410000

Unit Price

21
SPACER, RR AXLE, R
SPACER, RH (10X20X21)

64741-04410-000   6474104410000

6474104410000

Unit Price

22
NUT

09141-10006-000   0914110006000

0914110006000

Unit Price

23
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

24
BOLT (8X36)

09105-08011-000   0910508011000

0910508011000

Unit Price

25
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

26
WASHER, CHAIN ADJUSTE
LOCK WASHER

09162-08008-000   0916208008000

0916208008000

Unit Price

27
SPROCKET, RR
SPROCKET, REAR (NT:28)

64511-04411-000   6451104411000

6451104411000

Unit Price

28
TIRE
TIRE, REAR (2.50-10)

55100-04410-000   5510004410000

5510004410000

Unit Price

29
TUBE, INNER
TUBE ASSY, WHEEL INNER

55200-04410-000   5520004410000

5520004410000

Unit Price

30
PROTECTOR, INNER TUBE

55261-04410-000   5526104410000

5526104410000

Unit Price

31
SPOKE SET, RR
SPOKE SET, REAR WHEEL

55300-04820-000   5530004820000

5530004820000

Unit Price

32
RIM, WHEEL
RIM, WHEEL (1.40X10)

55311-04410-000   5531104410000

5531104410000

Unit Price

33
ROD ASSY, RR BRAKE
ROD ASSY, REAR BRAKE

43300-04410-000   4330004410000

4330004410000

Unit Price

34
NUT

09150-05003-000   0915005003000

0915005003000

Unit Price

35
BRAKE ROD LEVER PIN
PIN

09209-10001-000   0920910001000

0920910001000

Unit Price

36
BRK ROD ADJ SPRING<br />SPRING
BRK ROD ADJ SPRING
SPRING

09440-09004-000   0944009004000

0944009004000

Unit Price

37
WASHER

08322-01053-000  

08322-0105B-000
 0832201053000

Unit Price

38
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 2002
