FRAME / FOOTREST FOR SUZUKI JR 50 2004

FUEL TANK (MODEL Y / K1) REFER TO FIG.17A(D-5) FOR MODEL K2/K3

Item numbers

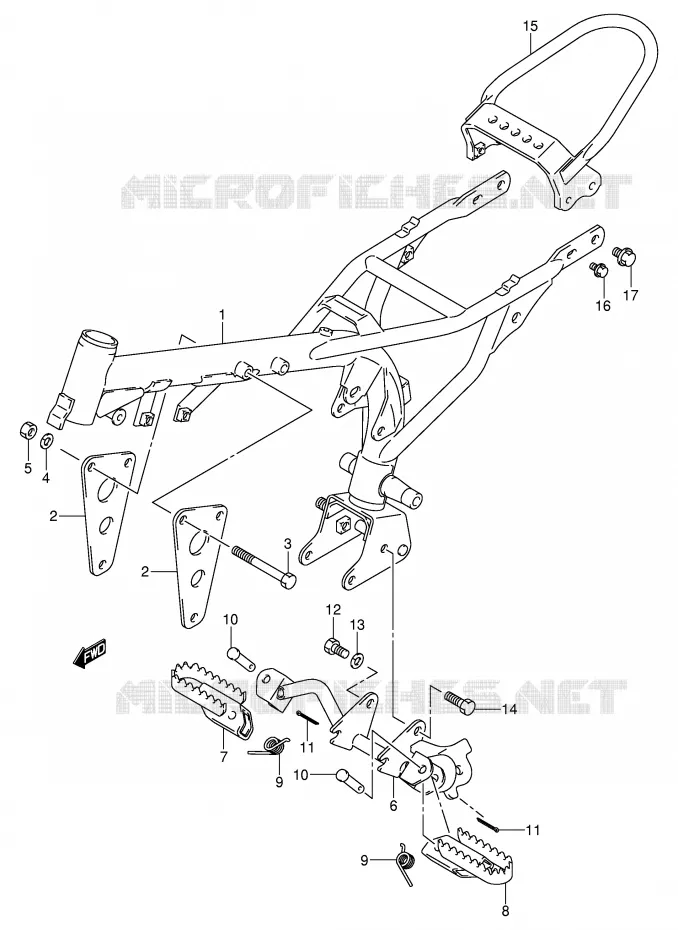

FRAME/FOOTREST Suzuki MOTO 50 JR 2004 JR50K4(P3/P28)
1
2
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
1
DISCONTINUE
FRAME (BLACK)

41100-09AA0-019   4110009AA0019

4110009AA0019
Not available
2
DISCONTINUE
PLATE, MOUNTING

41991-04410-000   4199104410000

4199104410000
Not available
3
BOLT

01500-08703-000  

01500-0870B-000
 0150008703000

Unit Price

4
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

5
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

6
DISCONTINUE
BAR, FRONT FOOTREST

43510-04411-000   4351004411000

4351004411000
Not available
7
FOOTREST, FR, R
FOOTREST, RH (BLACK)

43550-46000-019   4355046000019

4355046000019

Unit Price

8
FOOTREST, FR, L
FOOTREST, LH (BLACK)

43560-46000-019   4356046000019

4356046000019

Unit Price

9
FR FOOTREST SPRING<br />SPRING
FR FOOTREST SPRING
SPRING

09448-14012-000   0944814012000

0944814012000

Unit Price

10
FITTING PIN<br />PIN
FITTING PIN
PIN

09200-08002-000   0920008002000

0920008002000

Unit Price

11
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

12
BOLT

01500-08163-000  

01500-0816B-000
 0150008163000

Unit Price

13
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

14
FR FENDER FTREST*S1<br />BOLT, LH
FR FENDER FTREST*S1
BOLT, LH

09100-08143-000   0910008143000

0910008143000

Unit Price

15
DISCONTINUE
GRIP, REAR

43980-09AA0-000   4398009AA0000

4398009AA0000
Not available
16
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

17
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME/FOOTREST of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 2004

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 2004

Select your Suzuki 2004 model

50 JR 2004 JR50K4(P3/P28)

Suzuki JR

Displacement: 50 cc
Year: 2004
Model code JR50K4(P3 / P28)
