CRANKCASE COVER

CRANKSHAFT FOR SUZUKI JR 50 2004

CARBURETOR

Item numbers

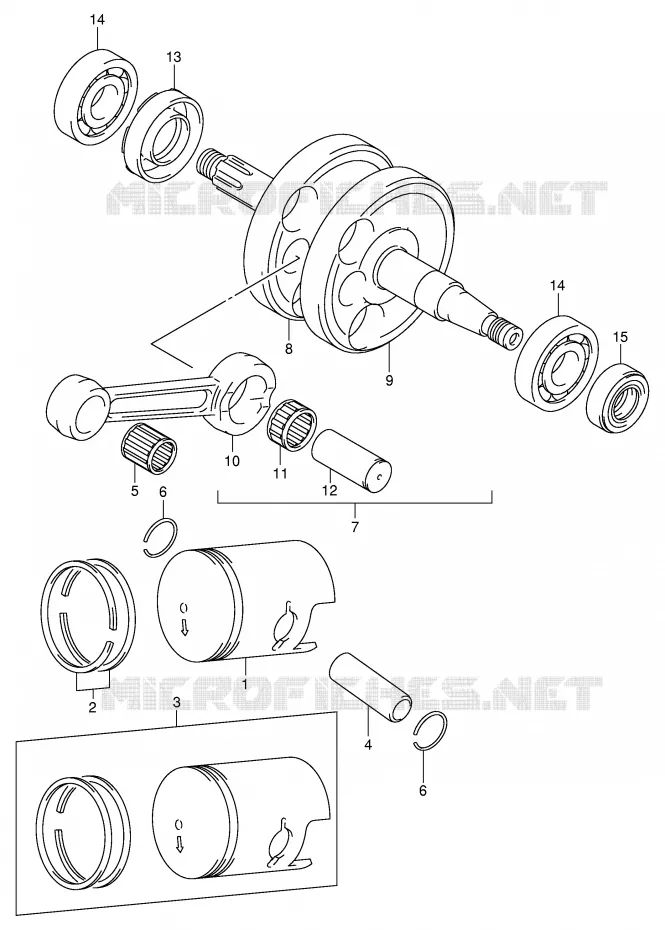

CRANKSHAFT Suzuki MOTO 50 JR 2004 JR50K4(P3/P28)
1
1
2
2
2
3
3
3
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
1
PISTON (41.00MM)

12110-35613-0F0  

12110-43000-000
 12110356130F0

Unit Price

2
RING SET, PISTON
RING SET, PISTON (STD)

12140-16B10-000   1214016B10000

1214016B10000

Unit Price

2
RING SET, PISTON(OS:0.50)
RING SET, PISTON (OS:0.5)

12140-46110-050   1214046110050

1214046110050

Unit Price

2
RING SET, PISTON (OS:1.0)

12140-46110-100  

1214046110100
Not available
3
PISTON SET(OS:0.5)

12103-43820-050  

12100-35611-050
 1210343820050

Unit Price

3
PISTON SET(OS:1.0)

12103-43820-100  

12100-35611-100
 1210343820100

Unit Price

3
PISTON SET (OS:0.5)

12100-35611-050   1210035611050

1210035611050

Unit Price

3
PISTON SET (OS:1.0)

12100-35611-100   1210035611100

1210035611100

Unit Price

4
PIN, PISTON

12151-04700-000   1215104700000

1215104700000

Unit Price

5
BEARING<br />BEARING, PISTON PIN
BEARING
BEARING, PISTON PIN

09263-12023-000   0926312023000

0926312023000

Unit Price

6
RING,SNAP<br />CIRCLIP
RING, SNAP
CIRCLIP

09381-12001-000   0938112001000

0938112001000

Unit Price

7
DISCONTINUE
CRANKSHAFT ASSY

12200-04401-000   1220004401000

1220004401000
Not available
8
DISCONTINUE
CRANKSHAFT, RH

12221-04400-000   1222104400000

1222104400000
Not available
9
DISCONTINUE
CRANKSHAFT, LH

12261-04000-000   1226104000000

1226104000000
Not available
10
ROD, CONNECTING

12161-04001-000   1216104001000

1216104001000

Unit Price

11
BEARING(15X21X9.8)
BEARING

09263-15014-000   0926315014000

0926315014000

Unit Price

12
PIN, CRANK

12211-04000-000   1221104000000

1221104000000

Unit Price

13
OIL SEAL

09283-22001-000  

09283-22037-000
 0928322001000

Unit Price

14
BEARING (17X40X12)
BEARING (17X40X12)

09262-17023-000   0926217023000

0926217023000

Unit Price

15
OIL SEAL

09283-17010-000  

09283-17012-000
 0928317010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 2004

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 2004

Select your Suzuki 2004 model

50 JR 2004 JR50K4(P3/P28)

Suzuki JR

Displacement: 50 cc
Year: 2004
Model code JR50K4(P3 / P28)
