CYLINDER

CRANKCASE FOR SUZUKI JR 50 2005

CLUTCH COVER / OIL PUMP

Item numbers

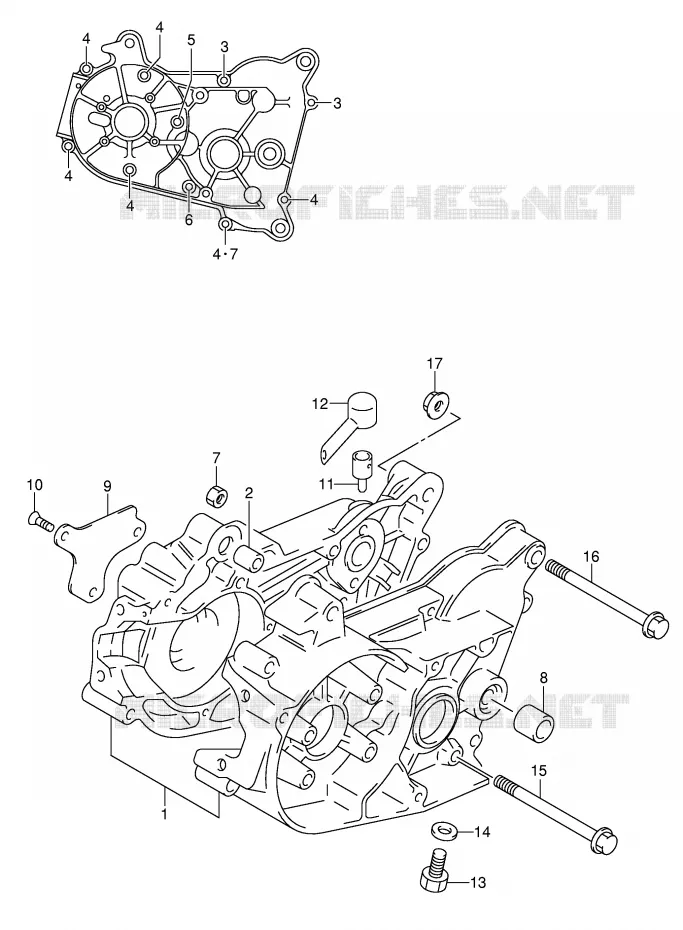

CRANKCASE Suzuki MOTO 50 JR 2005 JR50K5(P3/P28)
1
2
3
3
4
4
4
4
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
DISCONTINUE

11300-04843-000  

1130004843000
Not available
2
PIN
PIN

04211-11129-000   0421111129000

0421111129000

Unit Price

3
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

4
02112-0635B
SCREW

02112-06353-000  

0211206353000
Not available
5
SCREW

02112-06403-000  

02112-0640B-000
 0211206403000

Unit Price

6
SCREW

02112-06553-000  

02112-0655B-000
 0211206553000

Unit Price

7
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
8
BUSH, COUNTER SHAFT

09304-10005-000   0930410005000

0930410005000
Not available
9
PLATE, OIL RESERVOIR

12521-04000-000   1252104000000

1252104000000

Unit Price

10
SCREW

02122-04103-000  

02122-0410A-000
 0212204103000

Unit Price

11
PLUG,T/M BREATHER<br />PLUG, BREATHER
PLUG, T/M BREATHER
PLUG, BREATHER

24821-09001-000   2482109001000

2482109001000

Unit Price

12
DISCONTINUE
CAP, BREATHER PLUG

24822-20000-000  

2482220000000
Not available
13
PLUG
PLUG, OIL DRAIN

09247-10008-000   0924710008000

0924710008000

Unit Price

14
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

15
BOLT

09103-08397-000   0910308397000

0910308397000
Not available
16
BOLT(8X70)
BOLT

09103-08099-000   0910308099000

0910308099000

Unit Price

17
NUT

08319-31088-000   0831931088000

0831931088000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki JR 50 of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 2005

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 2005

Select your Suzuki 2005 model

50 JR 2005 JR50K5(P3/P28)
50 JR 2005 JR50K5(P3/P28)

JR 50

Suzuki JR

Displacement: 50 cc
Year: 2005
Model code JR50K5(P3 / P28)
