GEAR SHIFTING ASSY

KICK STARTER FOR SUZUKI JR 50 2005

FUEL COCK

Item numbers

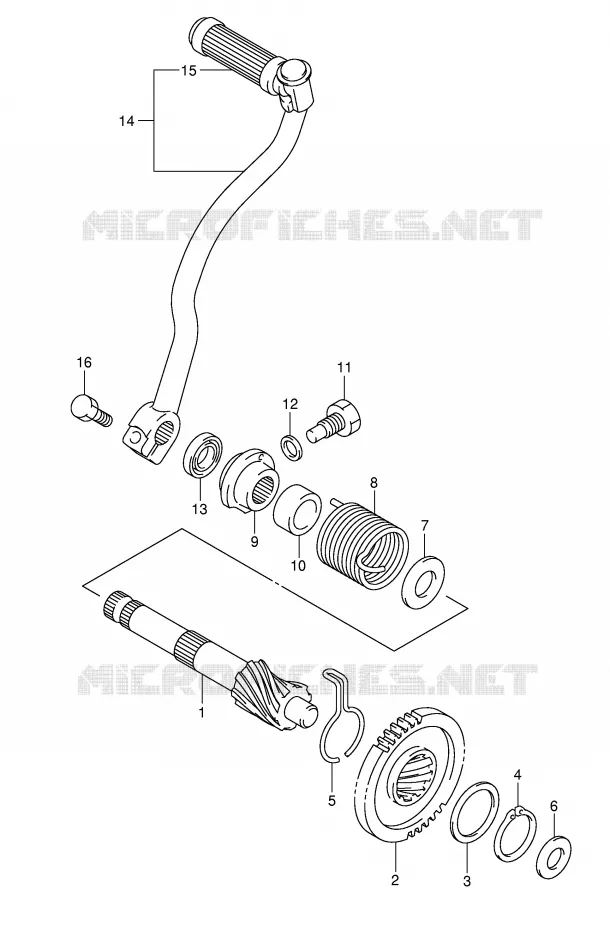

KICK STARTER Suzuki MOTO 50 JR 2005 JR50K5(P3/P28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
SHAFT, KICK STARTER

26211-04000-000   2621104000000

2621104000000

Unit Price

2
GEAR, KICK STARTER DRIIVE
GEAR, DRIVE (NT:43)

26241-04002-000   2624104002000

2624104002000

Unit Price

3
WASHER
WASHER

08211-25321-000   0821125321000

0821125321000

Unit Price

4
CIRCLIP

09380-25009-000   0938025009000

0938025009000

Unit Price

5
RETAINER, SNAP
RETAINER SPRING

09384-30001-000   0938430001000

0938430001000

Unit Price

6
WASHER
WASHER

08211-12261-000   0821112261000

0821112261000

Unit Price

7
KK ST SHFT THR WASHR
WASHER (16X30.5X1)

09160-16003-000   0916016003000

0916016003000

Unit Price

8
KK STARTER SPRIN****
SPRING

09448-41001-000   0944841001000

0944841001000

Unit Price

9
LIFTER, KICK STARTER
STOPPER, KICK STARTER

26232-04401-000   2623204401000

2623204401000

Unit Price

10
DISCONTINUE
GUIDE, KICK RETURN SPRING

26221-04400-000   2622104400000

2622104400000
Not available
11
BOLT(10X17)
BOLT

09135-10003-000   0913510003000

0913510003000

Unit Price

12
CRNK DRAIN PLUG GASK<br />GASKET (9.9X14X0.3)
CRNK DRAIN PLUG GASK
GASKET (9.9X14X0.3)

09168-10002-000   0916810002000

0916810002000

Unit Price

13
KICKSTART OIL SEAL
KICKSTART OIL SEAL

09285-14001-000  

09285-14002-000
 0928514001000

Unit Price

14
LEVER ASSY, KICK STARTER

26300-04410-000  

26300-04411-000
 2630004410000

Unit Price

15
26352-01020<br />RUBBER
26352-01020
RUBBER

26352-01000-000  

2635201000000
Not available
16
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER of your Suzuki JR 50 of JR. Let us know if you have any questions.
