SPEEDOMETER (E16,E43)

HEADLIGHT (E43) FOR SUZUKI PV 50 1991

INDICATORS (E43)

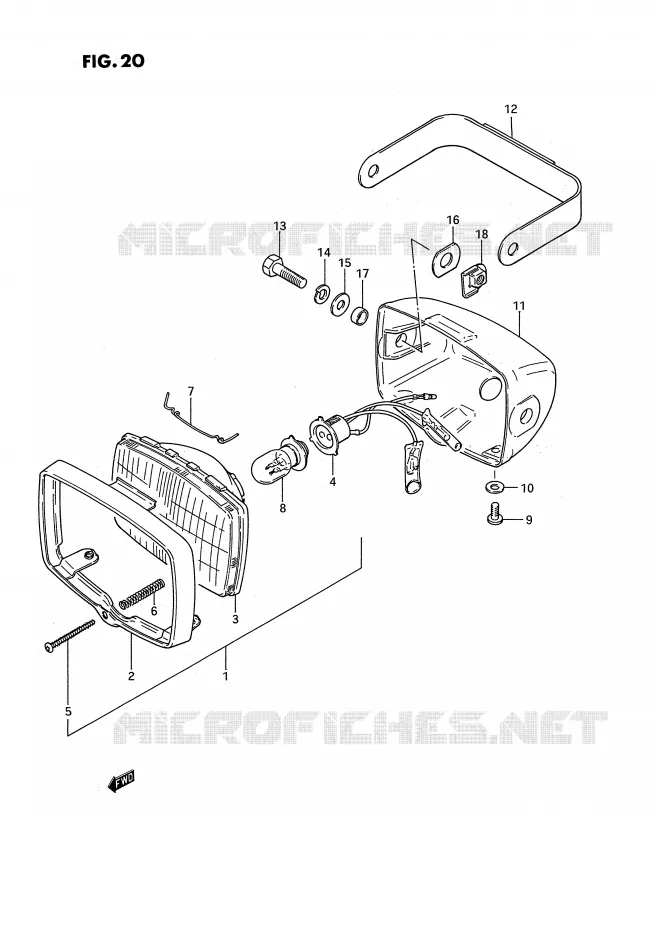

HEADLIGHT (E43) Suzuki MOTO 50 PV 1991 PV50M(E15)
1
DISCONTINUE
HEADLAMP ASSY

35100-35310-999   3510035310999

3510035310999
Not available
2
DISCONTINUE
HEADLAMP RIM

35111-35301-000   3511135301000

3511135301000
Not available
3
DISCONTINUE
UNIT

35121-35300-000  

3512135300000
Not available
4
SOCKET, HEADLAMP

35171-35300-000  

35171-09X51-000
 3517135300000

Unit Price

5
SCREW

35151-35302-000  

35623-09400-000
 3515135302000

Unit Price

6
SPRING, HEAD LAMP ADJUSTER
SPRING

35154-35300-000   3515435300000

3515435300000

Unit Price

7
SPRING, SUPPORTER

35128-353A0-000   35128353A0000

35128353A0000
Not available
8
BULB(6V5W, TOKAI DENSO)
BULB (6V, 15/15W)

09471-06022-000   0947106022000

0947106022000

Unit Price

9
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

10
WASHER

08322-21057-000  

08322-01057-000
 0832221057000

Unit Price

11
HOUSING, HEADLAMP(BLACK)
HOUSING, HEADLAMP

51811-17202-291   5181117202291

5181117202291

Unit Price

12
BRACKET, HEADLAMP

51350-17211-000   5135017211000

5135017211000
Not available
13
BOLT

01107-08207-000  

01500-08207-000
 0110708207000

Unit Price

14
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

15
WASHER

08322-11088-000  

08322-01087-000
 0832211088000

Unit Price

16
CUSHION

09329-12002-000  

09329-12005-000
 0932912002000

Unit Price

17
SPACER, 8.5X12X7

09180-08030-000  

09180-08187-000
 0918008030000

Unit Price

18
DISCONTINUE
PLATE

51860-46400-000   5186046400000

5186046400000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (E43) of your Suzuki of PV. Let us know if you have any questions.

Genuine parts for Suzuki 50 PV 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 PV 1991

Select your Suzuki 1991 model

50 PV 1991 PV50M(E15)

Suzuki PV

Displacement: 50 cc
Year: 1991
Model code PV50M(E15)
