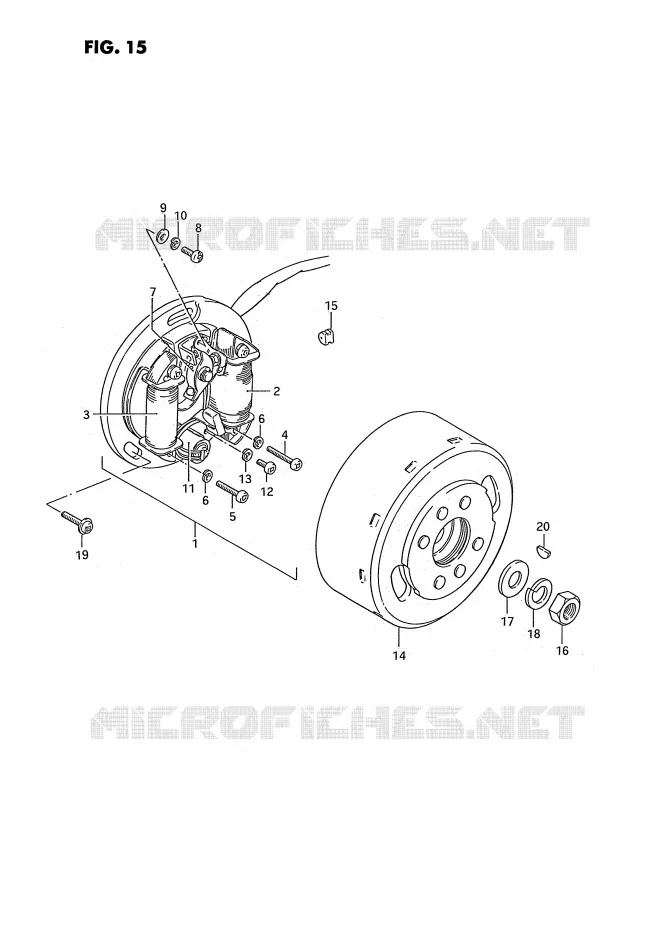

IGNITION (MODEL X E15, MODEL D / H / L / M E43) FOR SUZUKI PV 50 1991

IGNITION (MODEL D / H / L / M E15) REFER TO FIG.16A(D-4) FOR MODEL R E15/P15

STATOR ASSY

32101-17220-000 3210117220000

Not available

STATOR ASSY

32101-17240-000 3210117240000

Not available

COIL, LIGHTING

32120-17220-000 3212017220000

Not available

COIL, LIGHTING

32120-46521-000 3212046521000

Not available

COIL, PRIMARY

32140-46120-000 3214046120000

Not available

SCREW

02112-04258-000

02112-0425B-000

$3,97

Unit Price

SCREW

02112-04208-000

02112-0420A-000

$2,97

Unit Price

WASHER, LOCK

08321-21047-000

08321-0104A-000

$2,97

Unit Price

DISCONTINUE
CONTACT POINT

32240-13020-000 3224013020000

Not available

DISCONTINUE
SCREW

09125-04001-000 0912504001000

Not available

WASHER

08322-21047-000

08322-01047-000

$2,97

Unit Price

WASHER, LOCK

08321-21047-000

08321-0104A-000

$2,97

Unit Price

DISCONTINUE
CONDENSER

32341-22020-000 3234122020000

Not available

SCREW

02112-05087-000

02112-0508A-000

$3,97

Unit Price

WASHER, LOCK

08321-21057-000

08321-0105A-000

$2,97

Unit Price

FLYWHEEL

32102-17220-000 3210217220000

Not available

FLYWHEEL

32102-17240-000 3210217240000

Not available

CAP, LEAD WIRE

09259-04001-000 0925904001000

Not available

GROMMET

32742-32021-000 3274232021000

Not available

NUT

09140-10003-000

09140-10041-000

$5,97

Unit Price

WASHER

08322-21108-000

08322-01107-000

$2,97

Unit Price

WASHER

08321-21107-000

08321-01107-000

$3,97

Unit Price

SCREW(5X14)
SCREW

09139-05011-000 0913905011000

$4,97

Unit Price

KEY

08341-31039-000 0834131039000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the IGNITION (MODEL X E15, MODEL D/H/L/M E43) of your Suzuki of PV. Let us know if you have any questions.
