TAIL LIGHT FOR SUZUKI TS-W 50 1983

WIRING HARNESS

Item numbers

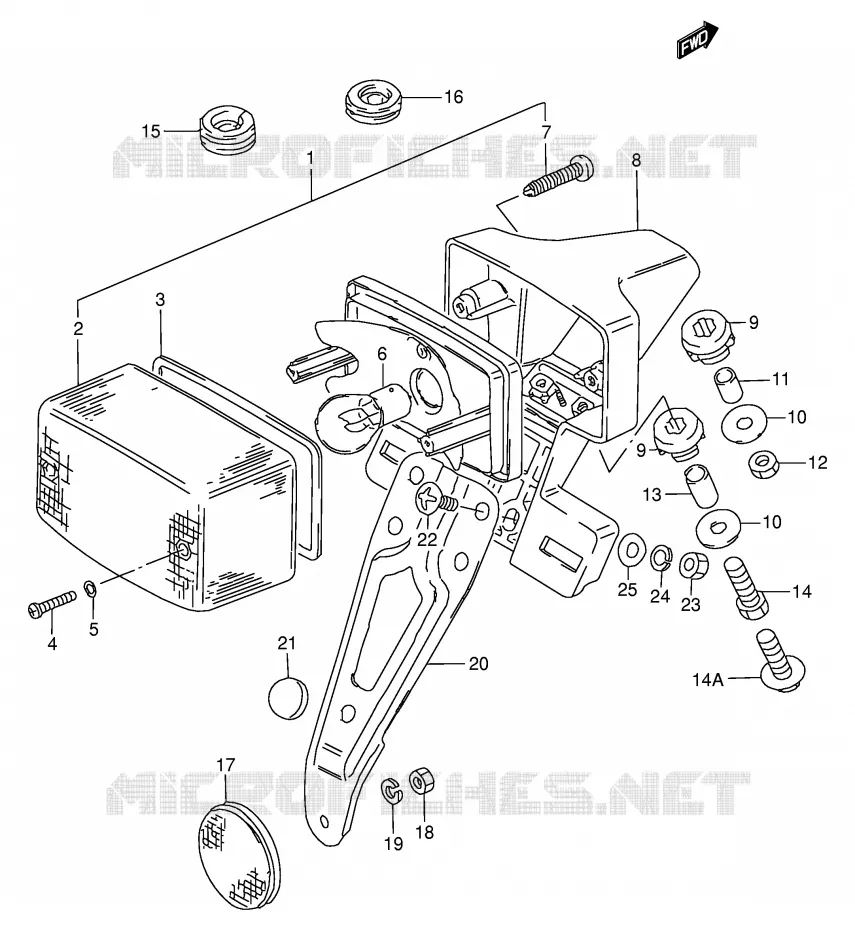

TAIL LIGHT Suzuki MOTO 50 TS-W 1983 TS50WD(E6)
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
14A
15
16
17
18
18
19
20
21
22
23
24
25
1
LAMP UNIT, REAR COMBINATION

35720-13600-000   3572013600000

3572013600000
Not available
2
LENS

35712-36A70-000   3571236A70000

3571236A70000
Not available
3
GASKET

35713-13600-000   3571313600000

3571313600000
Not available
4
SCREW
SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(12V3.4W G20)
BULB (12V, 18/5W)

09471-12119-000   0947112119000

0947112119000

Unit Price

7
SCREW

03211-05255-000   0321105255000

0321105255000
Not available
8
BRACKET, TAIL LAMP

35730-13600-000   3573013600000

3573013600000
Not available
9
CUSHION

09320-09015-000   0932009015000

0932009015000

Unit Price

10
WASHER 6.5X10X1.2

09160-06027-000  

09160-06077-000
 0916006027000

Unit Price

11
SPACER(6.1X8X12)

09180-06035-000  

09180-06249-000
 0918006035000

Unit Price

12
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
13
SPACER (6.4X9X15.5)

09180-06087-000   0918006087000

0918006087000
Not available
14
BOLT
BOLT

01500-06307-000   0150006307000

0150006307000

Unit Price

14A
BOLT

09116-06171-000   0911606171000

0911606171000

Unit Price

15
GROMMET

09308-07010-000   0930807010000

0930807010000
Not available
16
GROMMET
GROMMET

09308-07013-000   0930807013000

0930807013000
Not available
17
REFLEX REFRECTOR, REAR

35970-08400-000   3597008400000

3597008400000
Not available
18
NUT

08310-11057-000  

08310-00057-000
 0831011057000

Unit Price

18
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

19
WASHER, LOCK

08321-01057-000  

08321-0105A-000
 0832101057000

Unit Price

20
BRACKET

35974-48511-000   3597448511000

3597448511000
Not available
21
CUSHION

09321-05010-000   0932105010000

0932105010000
Not available
22
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

23
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
24
08321-0106A
LOCK WASHER

08321-01063-000  

0832101063000
Not available
25
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
