HANDELBAR

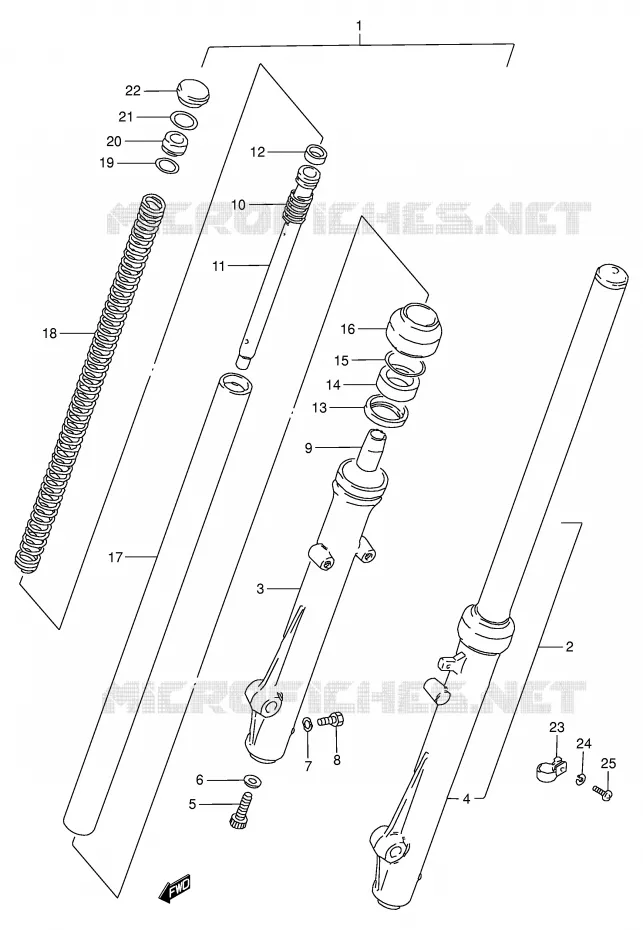

FRONT FORK (MODEL D / E / F / G) FOR SUZUKI TS-W 50 1983

FRONT FORK (MODEL P / S)

Item numbers

DAMPER ASSY, RH (RED)

51103-13600-07P 511031360007P

Not available

DAMPER ASSY, RH (RED)

51103-13600-14C 511031360014C

Not available

DAMPER ASSY, RH (WHITE)

51103-13600-14L 511031360014L

Not available

DAMPER ASSY, RH (YELLOW)

51103-13600-163 5110313600163

Not available

DAMPER ASSY, RH (BLACK)

51103-13600-21C 511031360021C

Not available

DAMPER ASSY, LH (RED)

51104-13600-07P 511041360007P

Not available

DAMPER ASSY, LH (RED)

51104-13600-14C 511041360014C

Not available

DAMPER ASSY, LH (WHITE)

51104-13600-14L 511041360014L

Not available

DAMPER ASSY, LH (YELLOW)

51104-13600-163 5110413600163

Not available

DAMPER ASSY, LH (BLACK)

51104-13600-21C 511041360021C

Not available

OUTER TUBE, RH (RED)

51130-13600-07P 511301360007P

Not available

OUTER TUBE, RH (RED)

51130-13600-14C 511301360014C

Not available

OUTER TUBE, RH (WHITE)

51130-13600-14L 511301360014L

Not available

OUTER TUBE, RH (YELLOW)

51130-13600-163 5113013600163

Not available

OUTER TUBE, RH (BLACK)

51130-13600-21C 511301360021C

Not available

OUTER TUBE, LH (RED)

51140-13600-07P 511401360007P

Not available

OUTER TUBE, LH (RED)

51140-13600-14C 511401360014C

Not available

OUTER TUBE, LH (WHITE)

51140-13600-14L 511401360014L

Not available

OUTER TUBE, LH (YELLOW)

51140-13600-163 5114013600163

Not available

OUTER TUBE, LH (BLACK)

51140-13600-21C 511401360021C

Not available

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET
WASHER

51148-36011-000 5114836011000

$5,97

Unit Price

GASKET, DRAIN PLUG

51183-31030-000 5118331030000

$7,97

Unit Price

..BOLT

01107-06088-000 0110706088000

Not available

PIECE, OIL LOCK

51195-48000-000 5119548000000

$19,97

Unit Price

DISCONTINUE
SPRING, REBOUND

51177-48720-000 5117748720000

Not available

CYLINDER

51146-13600-000 5114613600000

Not available

RING

51196-48000-000 5119648000000

$10,97

Unit Price

DISCONTINUE
SEAL, SPACER

51168-20900-000 5116820900000

Not available

SEAL, OIL
OIL SEAL

51153-48420-000 5115348420000

$21,97

Unit Price

DISCONTINUED

51156-36030-000 5115636030000

Not available

SEAL, DUST
DUST SEAL

51173-20400-000 5117320400000

$21,97

Unit Price

INNER TUBE

51110-13600-000 5111013600000

Not available

SPRING

51171-13600-000 5117113600000

Not available

O RING

51181-33131-000 5118133131000

$9,97

Unit Price

SEAT, SPRING

51175-48500-000 5117548500000

$16,97

Unit Price

RING, STOPPER
SNAP RING

51169-48500-000 5116948500000

$5,97

Unit Price

DISCONTINUE
CAP

51189-26515-000 5118926515000

Not available

DISCONTINUED

51189-48530-000 5118948530000

Not available

CLIP, FR BRAKE CABLE
GUIDE, BRAKE CABLE

51452-46040-000 5145246040000

$9,97

Unit Price

WASHER, LOCK

08321-21047-000

08321-0104A-000

$2,97

Unit Price

SCREW

02112-04208-000

02112-0420A-000

$2,97

Unit Price
