OIL TANK

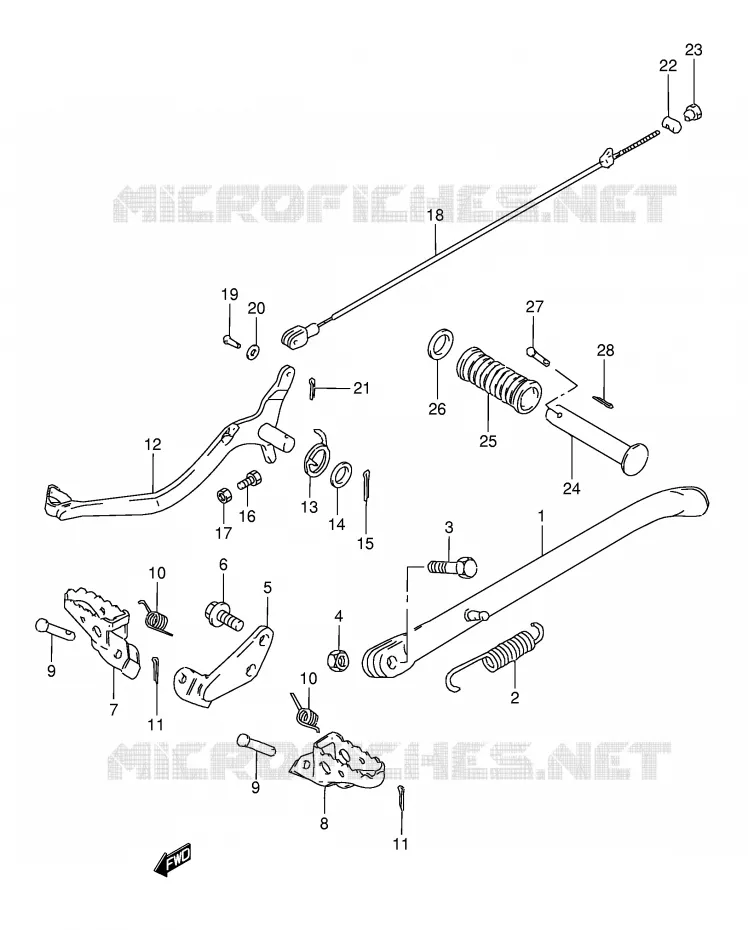

STAND - FOOTREST (MODEL E / G) FOR SUZUKI TS-X 50 1988

STAND - FOOTREST (MODEL H / J / M / R)

Item numbers

STAND, PROP (BLACK)

42310-13621-019 4231013621019

Not available

STAND, PROP (BLUE)

42310-13621-19F 423101362119F

Not available

STAND, PROP (BLACK)

42310-13631-019 4231013631019

Not available

STAND, PROP (BLUE)

42310-13631-19F 423101363119F

Not available

SPRING

09443-15007-000 0944315007000

Not available

SPRING

09443-18011-000 0944318011000

Not available

SIDE STAND BOLT
BOLT

09100-10067-000 0910010067000

$6,97

Unit Price

BOLT

09111-10019-000

09111-10047-000

$7,97

Unit Price

NUT

08310-00107-000 0831000107000

$3,97

Unit Price

HOLDER, FOOTREST RH (BLACK)

43510-13602-019 4351013602019

Not available

HOLDER, FOOTREST RH (BLUE)

43510-13602-19F 435101360219F

Not available

BOLT

01550-10253-000

01550-1025B-000

$5,97

Unit Price

FOOTREST, FRONT RH (BLACK)

43550-13600-019 4355013600019

Not available

FOOTREST, FRONT RH (BLUE)

43550-13600-19F 435501360019F

Not available

FOOTREST, FRONT LH (BLACK)

43560-13600-019 4356013600019

Not available

FOOTREST, FRONT LH (BLUE)

43560-13600-19F 435601360019F

Not available

FITTING PIN
PIN

09200-08002-000 0920008002000

$3,97

Unit Price

FR FOOTREST SPRING
SPRING

09448-14012-000 0944814012000

$5,97

Unit Price

04111-25208-000

04111-2520A-000

$2,97

Unit Price

PEDAL, BRAKE

43110-13701-000 4311013701000

Not available

SPRING

09448-25012-000 0944825012000

Not available

PEDAL LOCK WASHER
WASHER

09160-15002-000 0916015002000

$2,97

Unit Price

04111-30308-000

04111-3030A-000

$2,97

Unit Price

BOLT

01500-06203-000

01500-0620A-000

$2,97

Unit Price

NUT

09140-06027-000 0914006027000

$3,97

Unit Price

CABLE, REAR BRAKE (L:542)

58510-13650-000 5851013650000

Not available

CABLE, REAR BRAKE (L:519)

58510-13651-000 5851013651000

Not available

RR BRK CONNECTOR
PIN

09200-05001-000 0920005001000

$2,97

Unit Price

WASHER

08322-01067-000

08322-0106A-000

$3,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

BRAKE CAM LEVER PIN
PIN

09209-11002-000 0920911002000

$3,97

Unit Price

09150-06010
NUT

09150-06014-000

Not available

BAR, FOOTREST RUBBER
BAR, PILLION FOOTREST

43610-03001-000 4361003001000

$16,97

Unit Price

RUBBER, PILLION FOOTREST
RUBBER

43612-03001-000 4361203001000

$10,97

Unit Price

WASHER

09160-19024-000 0916019024000

$4,97

Unit Price

09200-06010-000 0920006010000

$3,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND - FOOTREST (MODEL E/G) of your Suzuki of TS-X. Let us know if you have any questions.
