CRANKSHAFT

CARBURETOR FOR SUZUKI ADDRESS 50 1992

AIR FILTER

Item numbers

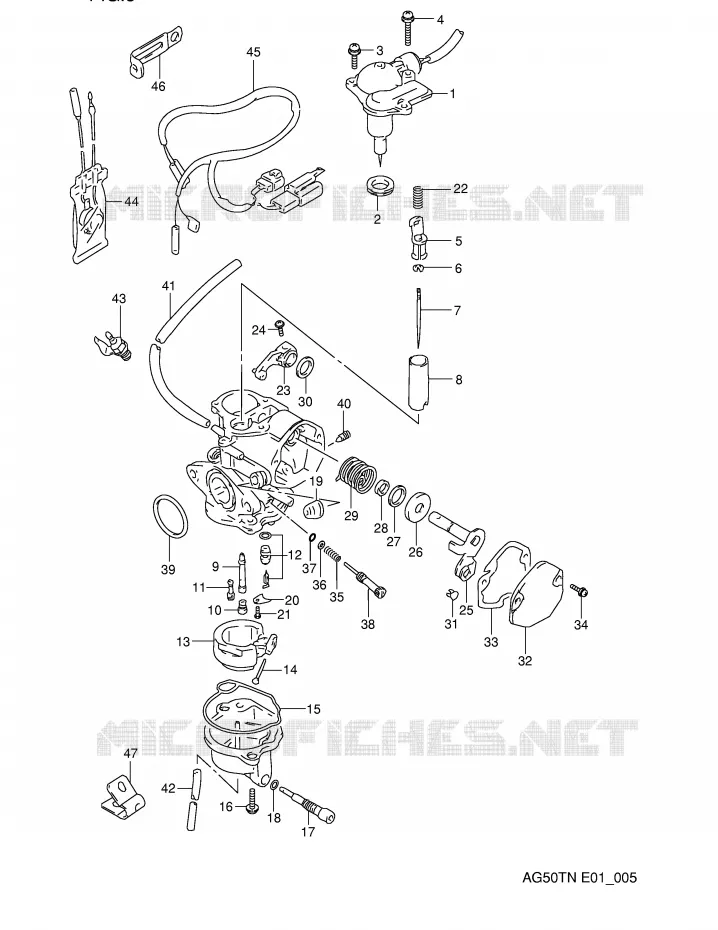

CARBURETOR Suzuki SCOOTER 50 ADDRESS 1992 AG50TN(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
1
ELEMENT ASSY, THERMO

13430-41D30-000   1343041D30000

1343041D30000
Not available
2
O RING

13278-39C60-000   1327839C60000

1327839C60000
Not available
3
SCREW

02112-34163-000  

02112-3416B-000
 0211234163000

Unit Price

4
DISCONTINUE
SCREW

13601-04228-000   1360104228000

1360104228000
Not available
5
JOINT

13511-29C50-000   1351129C50000

1351129C50000
Not available
6
CLIP, NEEDLE

13394-40D00-000   1339440D00000

1339440D00000

Unit Price

7
NEEDLE, JET

13383-35440-000   1338335440000

1338335440000
Not available
8
VALVE, PISTON

13551-40D00-000   1355140D00000

1355140D00000
Not available
9
JET, NEEDLE (E-2)

09494-00817-000   0949400817000

0949400817000
Not available
10
DISCONTINUE
JET, MAIN (62.5)

09491-62007-000   0949162007000

0949162007000
Not available
11
DISCONTINUE
JET, PILOT (17.5)

09492-17014-000   0949217014000

0949217014000
Not available
12
VALVE ASSY, NEEDLE

13370-02421-000   1337002421000

1337002421000
Not available
13
FLOAT

13250-29C50-000   1325029C50000

1325029C50000
Not available
14
PIN, FLOAT

13254-29C50-000   1325429C50000

1325429C50000

Unit Price

15
GASKET

13258-29C50-000   1325829C50000

1325829C50000
Not available
16
SCREW

02112-35163-000  

02112-3516A-000
 0211235163000

Unit Price

17
SCREW, DRAIN

13247-25E00-000   1324725E00000

1324725E00000
Not available
18
O RING
O RING

13278-02340-000   1327802340000

1327802340000

Unit Price

19
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

20
PLATE, NEEDLE VALVE FITTING
PLATE

13373-46710-000   1337346710000

1337346710000

Unit Price

21
SCREW

02112-03063-000  

02112-0306B-000
 0211203063000

Unit Price

22
SPRING

13543-09400-000   1354309400000

1354309400000
Not available
23
LEVER, THROTTLE

13541-29C50-000   1354129C50000

1354129C50000
Not available
24
SCREW

02112-34123-000  

02112-3412B-000
 0211234123000

Unit Price

25
SHAFT ASSY, THROTTLE

13550-29C50-000   1355029C50000

1355029C50000
Not available
26
PLATE

13557-09400-000   1355709400000

1355709400000
Not available
27
RING

13574-29C50-000   1357429C50000

1357429C50000
Not available
28
SEAL,THRO SHAFT
SEAL, THRO SHAFT

13651-51010-000  

13651-51011-000
 1365151010000

Unit Price

29
SPRING

13573-40D00-000   1357340D00000

1357340D00000
Not available
30
RING

13572-29C50-000   1357229C50000

1357229C50000
Not available
31
GUIDE, CABLE

13569-29C50-000   1356929C50000

1356929C50000
Not available
32
COVER, THROTTLE

13484-29C50-000   1348429C50000

1348429C50000
Not available
33
GASKET

13237-29C50-000   1323729C50000

1323729C50000
Not available
34
SCREW

02112-74103-000  

02112-7410B-000
 0211274103000

Unit Price

35
SPRING
SPRING

13268-35010-000   1326835010000

1326835010000

Unit Price

36
WASHER
WASHER

13291-35010-000   1329135010000

1329135010000

Unit Price

37
O RING
O RING

13295-33010-000   1329533010000

1329533010000

Unit Price

38
ADJUSTER

13267-25E00-000   1326725E00000

1326725E00000
Not available
39
O RING

13278-29C50-000   1327829C50000

1327829C50000
Not available
40
JET, AIR (1.1)
JET, AIR (1.1)

09493-22005-000   0949322005000

0949322005000
Not available
41
HOSE (5X9X760)

09343-05513-000   0934305513000

0934305513000
Not available
42
HOSE

13683-36A00-000  

09352-30504-600
 1368336A00000

Unit Price

43
HEATER ASSY, CARBURETOR(15W)

13650-25E00-000  

13650-25E01-000
 1365025E00000

Unit Price

44
THERMO SWITCH, CARB HEATER

13694-40D00-000  

13655-25E00-000
 1369440D00000

Unit Price

45
DISCONTINUE
WIRE, CARBURETOR HEATER LEAD

36852-39C10-000   3685239C10000

3685239C10000
Not available
46
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

47
CLAMP

09403-06401-000   0940306401000

0940306401000

Unit Price

99x
CARBURETOR ASSY

13200-40D60-000   1320040D60000

1320040D60000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of ADDRESS. Let us know if you have any questions.
