CYLINDER

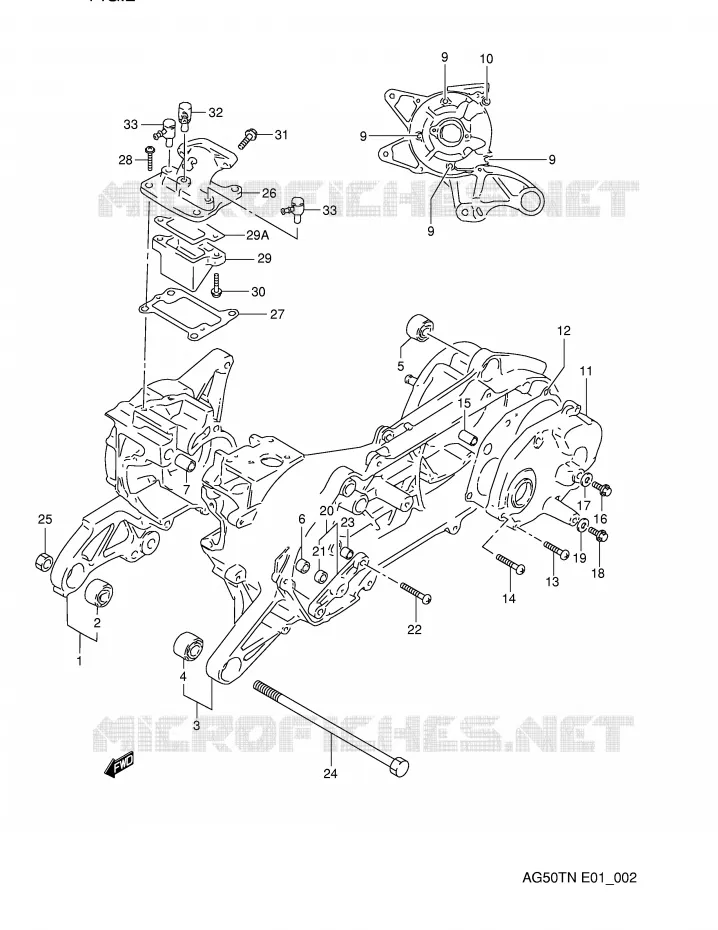

CRANKCASE FOR SUZUKI ADDRESS 50 1992

LEFT CRANKCASE COVER

Item numbers

CRANKCASE SET, RH

11310-29822-000 1131029822000

Not available

BUSH

09319-10050-000 0931910050000

$34,97

Unit Price

CRANKCASE SET, LH

11320-39812-000 1132039812000

Not available

BUSH

09319-10050-000 0931910050000

$34,97

Unit Price

BUSH(10.2X22.3X20)
BUSH

09319-10032-000 0931910032000

$12,97

Unit Price

BUSH

09300-08016-000 0930008016000

$5,97

Unit Price

PIN 11X16
KNOCK PIN

04211-11169-000 0421111169000

$2,97

Unit Price

SCREW

02112-06803-000 0211206803000

Not available

SCREW

02112-06453-000

02112-0645B-000

$3,97

Unit Price

SCREW

02112-06853-000

02112-0685B-000

$5,97

Unit Price

DISCONTINUE
COVER, GEAR BOX

11431-37B02-000 1143137B02000

Not available

GASKET, GEAR BOX COVER
GASKET, GEAR BOX

11484-41D30-000 1148441D30000

$12,97

Unit Price

SCREW

02112-06253-000

02112-0625A-000

$2,97

Unit Price

SCREW

02112-06303-000

02112-0630A-000

$3,97

Unit Price

PIN 11X16
KNOCK PIN

04211-11169-000 0421111169000

$2,97

Unit Price

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

TACH GEAR WASHER
GASKET (6.2X11X1.2)

09168-06004-000 0916806004000

$2,97

Unit Price

DISCONTINUE
CAP, STARTER IDLE GEAR

11380-37811-000 1138037811000

Not available

BUSH

09300-08016-000 0930008016000

$5,97

Unit Price

SCREW

02112-06303-000

02112-0630A-000

$3,97

Unit Price

PIN
KNOCK PIN

04211-09109-000 0421109109000

$2,97

Unit Price

BOLT (10X185)

09100-10267-000 0910010267000

Not available

NUT

08310-00103-000

08310-0010B-000

$3,97

Unit Price

PIPE, INTAKE

13111-40D11-000 1311140D11000

Not available

GASKET, INTAKE PIPE

13125-25E01-000 1312525E01000

Not available

SCREW

02112-36203-000

02112-3620A-000

$3,97

Unit Price

VALVE ASSY, REED

13150-40D50-000 1315040D50000

Not available

29A

GASKET, REED VALVE

13156-25E00-000 1315625E00000

Not available

SCREW (4X20)

09138-04003-000 0913804003000

Not available

SCREW
SCREW (6X19)

09128-06071-000 0912806071000

$5,97

Unit Price

VALVE, OIL HOSE CHECK
CHECK VALVE, OIL HOSE

16910-09C00-000 1691009C00000

$31,97

Unit Price

NIPPLE, OIL HOSE NO.2

16910-21D00-000 1691021D00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of ADDRESS. Let us know if you have any questions.
