Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT WHEEL (AE50L / M / N / P) REFER TO FIG.37A(G-5) FOR AE50RP/RR/RS/RT/RV

FRONT WHEEL (AE50RP / RR / RS / RT / RV) FOR SUZUKI AE 50 1992

REAR WHEEL

Item numbers

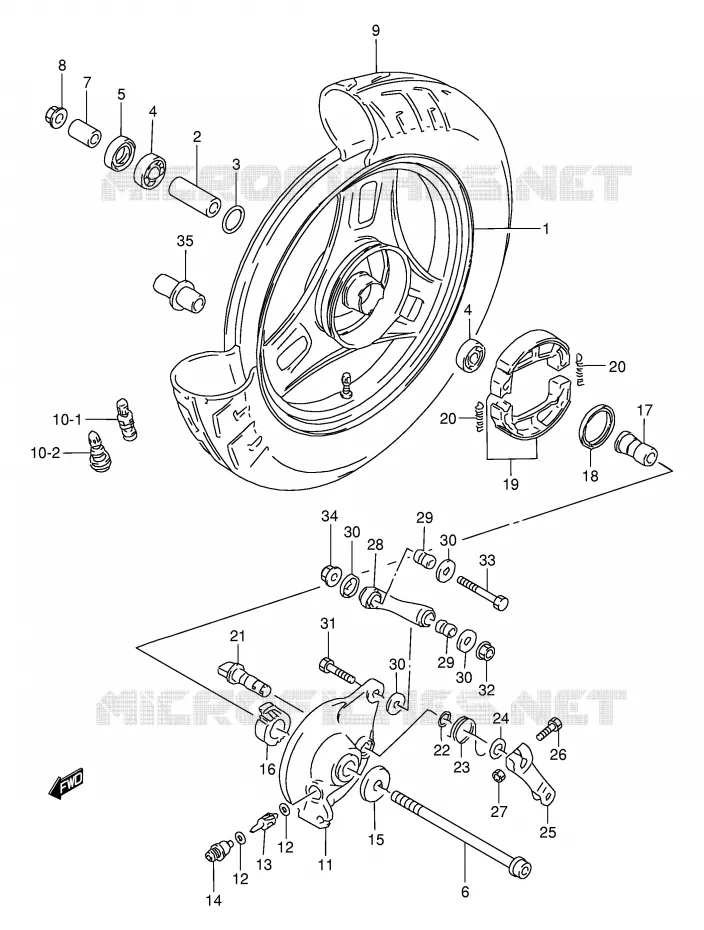

FRONT WHEEL (AE50RP/RR/RS/RT/RV) Suzuki SCOOTER 50 AE 1992 AE50N(E28)
1
1
1
2
3
4
4
4
4
5
7
8
9
9
10
10
17
20
20
35
1
54140-29C51-37W
WHEEL, FRONT (2.15X10)(RED)

54140-29C40-37W   5414029C4037W

5414029C4037W
Not available
1
54140-29C51-37W
WHEEL, FRONT (2.15X10)(RED)

54140-29C50-37W   5414029C5037W

5414029C5037W
Not available
1
WHEEL, FRONT (2.15X10)(SILVER)

54140-29C51-12R   5414029C5112R

5414029C5112R
Not available
2
54730-16B00
SPACER, WHEEL BEARING

54731-29C11-000   5473129C11000

5473129C11000
Not available
3
SUPPORT, BEARING SPACER

54732-29C00-000   5473229C00000

5473229C00000
Not available
4
BEARING

08123-62007-000  

08123-6200B-000
 0812362007000

Unit Price

4
08123-6200B
BEARING (10X30X9)

09262-10013-000   0926210013000

0926210013000
Not available
5
KICKSTARTER OIL SEAL
KICKSTARTER OIL SEAL

09285-16002-000  

09285-16005-000
 0928516002000

Unit Price

6
AXLE, FRONT

54711-16B00-000   5471116B00000

5471116B00000
Not available
7
DISCONTINUE
SPACER, FRONT AXLE RH

54741-16B00-000   5474116B00000

5474116B00000
Not available
8
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

9
DISCONTINUE
TIRE, FRONT 80/90-10 (IRC)

55100-25E20-000   5510025E20000

5510025E20000
Not available
9
55100-25E20
TIRE, FRONT 80/90-10 (IRC)

55100-29C20-000   5510029C20000

5510029C20000
Not available
10
VALVE ASSY, WHEEL RIM(TR412)

43130-24A11-000  

43130-24A00-000
 4313024A11000

Unit Price

10
43130-24A00
VALVE ASSY, WHEEL RIM (PVR-65)

55220-29C20-000   5522029C20000

5522029C20000
Not available
11
DISCONTINUE
PANEL, FRONT BRAKE CNCHOR (SILVER)

54210-29C00-12R   5421029C0012R

5421029C0012R
Not available
11
PANEL, FRONT BRAKE CNCHOR (RED)

54210-29C00-37W   5421029C0037W

5421029C0037W
Not available
12
WASHER, 5.1X9X0.4

09160-05001-000  

09160-05001-A05
 0916005001000

Unit Price

13
DISCONTINUE
PINION, SPEEDOMETER (NT:13)

54621-16B00-000   5462116B00000

5462116B00000
Not available
14
BUSH, SPEEDOMETER PINION OUTER
BUSHING, PINION OUTER

54632-02201-000   5463202201000

5463202201000

Unit Price

15
DISCONTINUE
COVER, ANCHOR PANEL BOSS

54217-16B00-000   5421716B00000

5421716B00000
Not available
16
DISCONTINUE
GEAR, SPEEDOMETER (NT:23)

54611-16B01-000   5461116B01000

5461116B01000
Not available
17
SPACER, ANCHOR PANEL BOSS

54225-16B00-000   5422516B00000

5422516B00000
Not available
18
SEAL, OIL(34X42X5)
OIL SEAL (34X42X5)

09285-34002-000   0928534002000

0928534002000

Unit Price

19
SHOE SET, BRAKE

54400-39820-000   5440039820000

5440039820000

Unit Price

20
SPRING

09443-07025-000   0944307025000

0944307025000
Not available
21
DISCONTINUE
CAM, FRONT BRAKE

54441-16B01-000   5444116B01000

5444116B01000
Not available
22
O-RING<br />O RING (D:2.4,ID:11.8)
O-RING
O RING (D:2.4, ID:11.8)

09280-12012-000   0928012012000

0928012012000

Unit Price

23
DISCONTINUE
SPRING, LEVER RETURN

54484-16B00-000   5448416B00000

5448416B00000
Not available
24
SEAL WASHER<br />WASHER (12.5X20X1)
SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000  

0916012011000
Not available
25
LEVER, FR BRAKE CAM
LEVER, BRAKE CAM

54451-29C00-000   5445129C00000

5445129C00000

Unit Price

26
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

27
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

27
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
28
DISCONTINUE
TORQUE LINK, FRONT

54310-16B00-000   5431016B00000

5431016B00000
Not available
29
BUSH, TORQUELINK

54341-16B00-000  

54341-25E00-000
 5434116B00000

Unit Price

30
DISCONTINUE
COVER, TORQUE LINK

54342-16B00-000  

5434216B00000
Not available
31
BOLT, FRONT (8X49)

09100-08280-000   0910008280000

0910008280000
Not available
32
NUT

08319-21088-000  

08319-2108A-000
 0831921088000

Unit Price

33
BOLT, REAR (8X35)

09100-08170-000   0910008170000

0910008170000
Not available
34
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
35
SPACER, FR WHEEL BEARING
SPACER, WHEEL BEARING

54730-16B00-000   5473016B00000

5473016B00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT WHEEL (AE50RP/RR/RS/RT/RV) of your Suzuki of AE. Let us know if you have any questions.

Genuine parts for Suzuki 50 AE 1992

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 AE 1992

Select your Suzuki 1992 model

50 AE 1992 AE50N(E28)

Suzuki AE

Displacement: 50 cc
Year: 1992
Model code AE50N(E28)
