SUSPENSION ARM (MODEL T)

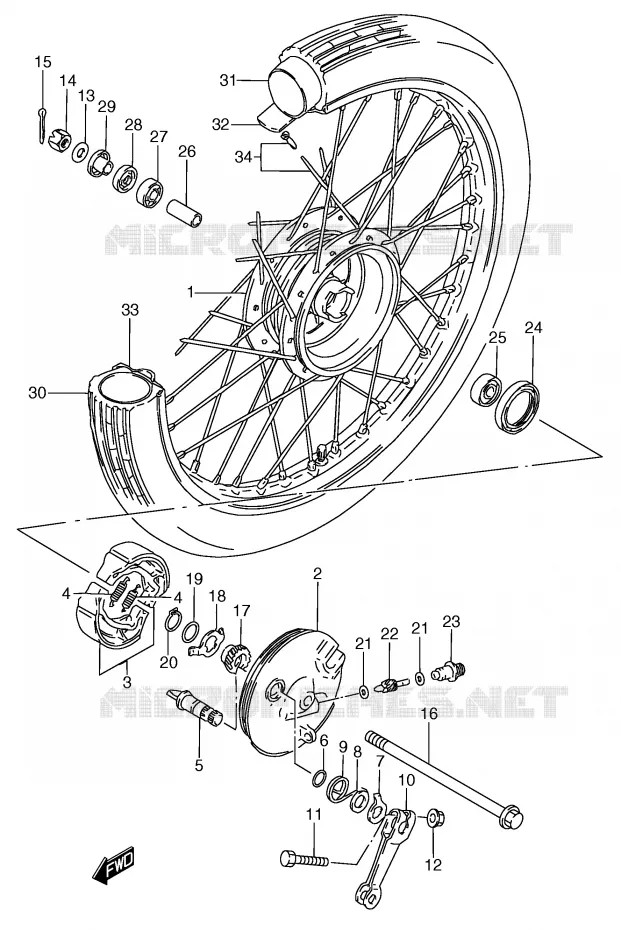

FRONT WHEEL (MODEL M) FOR SUZUKI AUTRES-MODELES 50 1996

FRONT WHEEL (MODEL T)

Item numbers

HUB, FRONT WHEEL

54110-35401-000 5411035401000

Not available

PANEL, FRONT BRAKE ANCHOR

54210-35402-000 5421035402000

Not available

SHOE & SPRING SET, BRAKE
SHOE SET, BRAKE

54400-35860-000 5440035860000

$52,97

Unit Price

SPRING

09443-07025-000 0944307025000

Not available

CAM, FRONT BRAKE

54441-16D00-000 5444116D00000

Not available

O RING, 02.5, ID:13.8

09280-14003-000

09280-14011-000

$8,97

Unit Price

PLATE, BRAKE LINING

54492-35400-000 5449235400000

Not available

WASHER(14.5X22X1)

09160-14003-000

09160-14054-000

$3,97

Unit Price

SPRING

09448-30009-000 0944830009000

Not available

LEVER, FRONT BRAKE CAM

54451-35400-000 5445135400000

Not available

BOLT (6X32)

09103-06045-000 0910306045000

Not available

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

WASHER

08322-01103-000

08322-0110B-000

$3,97

Unit Price

NUT

09141-10006-000 0914110006000

$5,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

AXLE, FRONT

54711-35411-000 5471135411000

Not available

GEAR, SPEEDOMETER (NT:24)

54611-03002-000 5461103002000

Not available

DRIVER, SPEEDOMETER GEAR

54661-03000-000 5466103000000

Not available

WASHER (16X22X1)

09160-16005-000 0916016005000

Not available

CIRCLIP

08331-31156-000

08331-3115A-000

$3,97

Unit Price

WASHER, 5.1X9X0.4

09160-05001-000

09160-05001-A05

$2,97

Unit Price

PINION, SPEEDOMETER (NT:10)

54621-03001-000 5462103001000

Not available

BUSH, SPEEDOMETER PINION OUTER

54632-02201-000 5463202201000

$17,97

Unit Price

SEAL, OIL(43X58X7)

09285-43001-000

09283-43004-000

$19,97

Unit Price

08143-6300B
BEARING

08143-63007-000 0814363007000

Not available

SPACER

09180-10091-000 0918010091000

Not available

BEARING

08123-62007-000

08123-6200B-000

$18,97

Unit Price

BEARING OIL SEAL
OIL SEAL

09284-15001-000 0928415001000

$6,97

Unit Price

SPACER, FR AXLE, R
SPACER, FRONT AXLE RH

54740-26101-000 5474026101000

$17,97

Unit Price

DISCONTINUE
TIRE, FRONT (2.25-17)

55100-09460-000 5510009460000

Not available

TUBE ASSY, WHEEL INNER

55200-03600-000 5520003600000

$32,97

Unit Price

PROTECTOR, WHL INR TUBE
PROTECTOR, INNER TUBE

55261-02B40-000 5526102B40000

$8,97

Unit Price

RIM, WHEEL(17X1.20)
RIM, WHEEL (1.20-17)

55311-01021-000 5531101021000

$229,97

Unit Price

SPOKE SET, FR
SPOKE SET, FRONT WHEEL

55320-01012-000 5532001012000

$60,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT WHEEL (MODEL M) of your Suzuki of Autres-modeles. Let us know if you have any questions.
